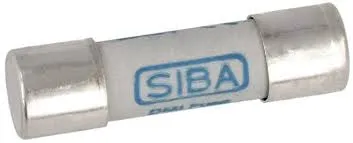

Fuse 10x38 Ultra-fast 1000V 10A
Varenummer:
123-410
Varekode: SIBA5019906.10
Vægt: 8 g
5 stk.
på lager
Bestil nu for afsendelse mandag d. 5/10
Yderligere 206 stk. kan skaffes fredag d. 16/10
Gruppe: E1511
SIBA Fuse Links
Series: 5019906
Characteristic: Very Quick Acting
Rated Voltage: 1000V
Housing: 10x38mm
Features
| • Ceramic tube with filling, non transparent • End caps brass, nickel-plated |
 |
| Technical Specifications |
|
|
| Rated Voltage: | 1000V AC/DC |
| Characteristic: | gR1) |
| 1) Short Circuit and Over Load |
|
|
|
| Part-Nr. | Rated | RBC | Power | Melting |
| SIBA_ | Current | @1000VAC/DC | Output | Integral |
| [A] | [kA] | [W] | [A2s] | |
| 5019906-1 | 1,0 | 30 | 0,3 | 0,45 |
| 5019906-2 | 2,0 | 30 | 0,9 | 1,2 |
| 5019906-4 | 4,0 | 30 | 0,5 | 3,0 |
| 5019906-6 | 6,0 | 30 | 0,7 | 5,0 |
| 5019906-8 | 8,0 | 30 | 1,1 | 7,0 |
| 501996-10 | 10,0 | 30 | 1,5 | 10,0 |
| 501996-11 | 11,0 | 30 | 1,6 | 17,0 |
| 501996-12 | 12,0 | 30 | 1,6 | 20,0 |
| 501996-16 | 16,0 | 30 | 2,1 | 30,0 |
Produktfiler
