Sikring 6,3x32, 500V, 0,25A, Træg (T)
Varenummer:
123-385
Varekode: SIBA189140-0.25
Vægt: 2 g
16 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 20 stk. kan skaffes mandag d. 9/11
Træg sikring; tidsforsinkelse, 250mA, 500VAC, keramisk, cylindrisk, 6,3 x 32 mm
|
Fuse characteristics
|
time-lag | |
|
Breaking capacity
|
1.5kA | |
|
Current rating
|
0.25A | |
|
Rated voltage
|
500V AC | |
|
Kind of fuse
|
ceramic, cylindrical, miniature | |
|
Fuse size
|
6.3x32mm | |
|

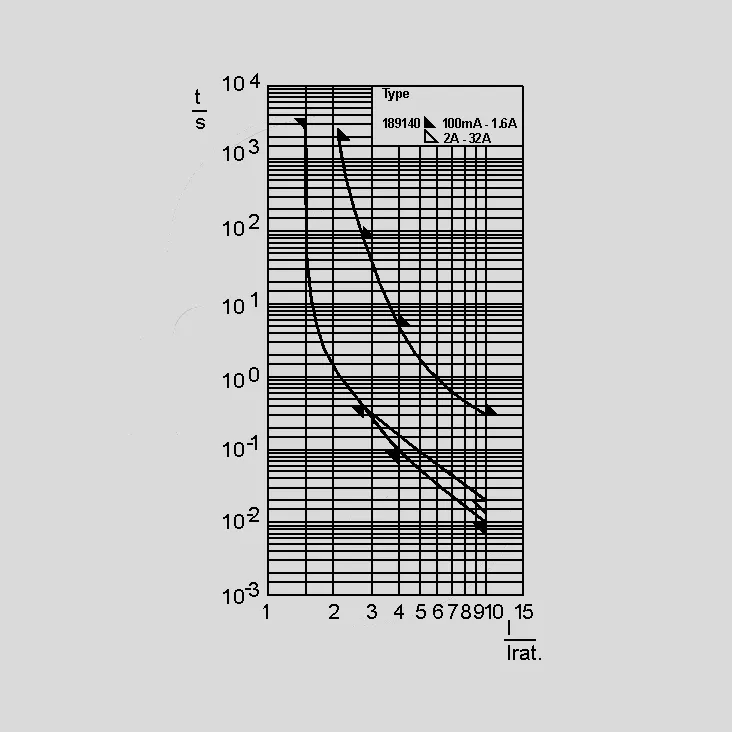

Breaking characteristics
|
1.5In: min 1h, 2.75In: min 400ms, 2.75In: max 80s, 4In: min 95ms, 4In: max 5s, 10In: min 10ms, 10In: max 300ms | |
|
Max voltage drop
|
2V | |
|
Contact material
|
brass | |
|
Fuses features
|
Extinguishing agent | |
|
Energy I2t
|
0.25A2s | |
|
Contact plating
|
nickel plated |
Produktfiler
