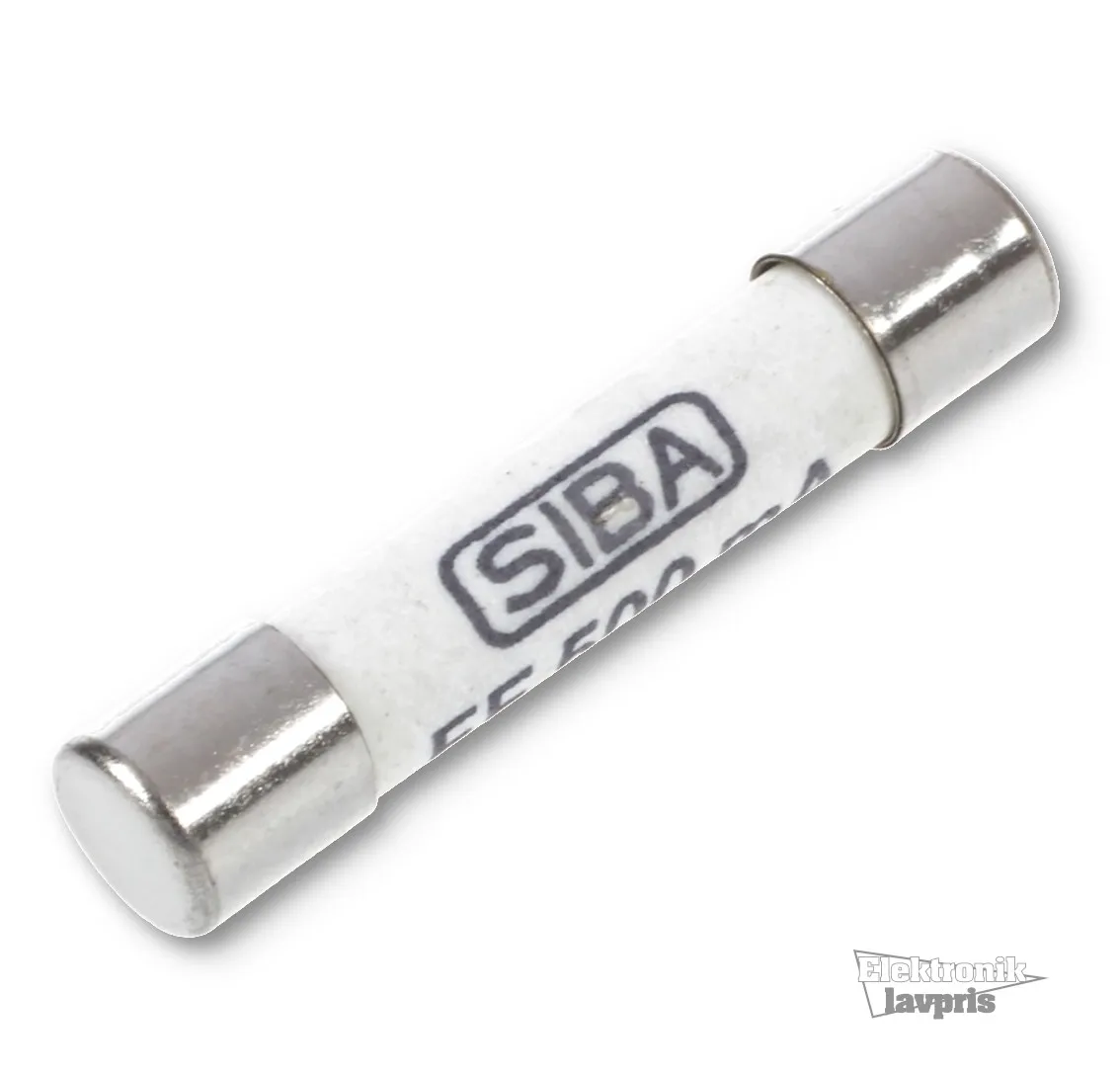

SIBA Sikring Flink(F) 1,25A 500V 6,3x32
Varenummer:
123-371
Varekode: SIBA189020-1.25
Vægt: 2 g
35 stk.
på lager
Gruppe: E1483
SIBA Fuse Links
Series: 189020
Characteristic: Quick Acting
Rated Voltage: 500/440V
Housing: 6,3x32mm
| Features |
| • Ceramic tube with filling • End caps brass, nickel-plated |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||||

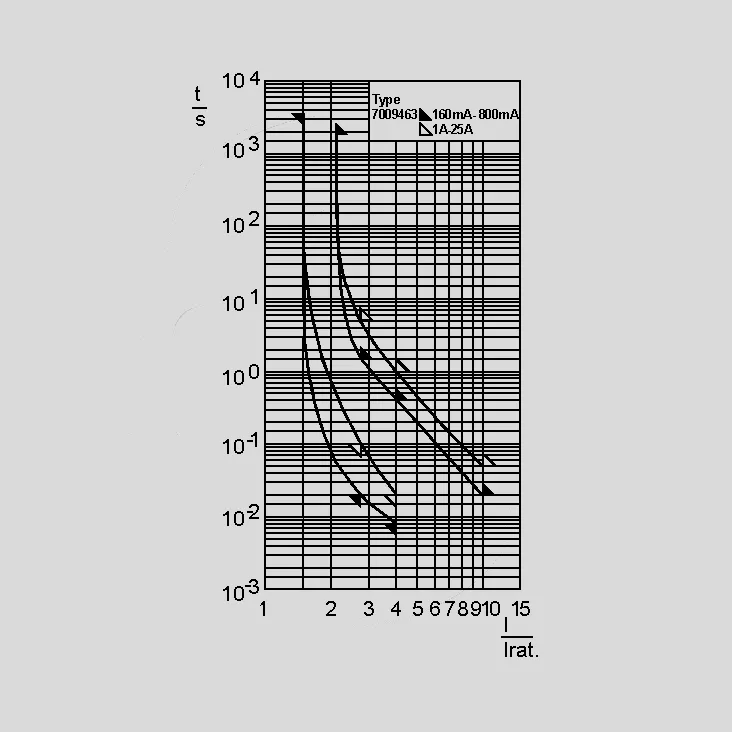

| Rated Voltage: | 500/440V | Fusing Time Limits | 500mA...800A | 1,5xIN, Min.: | 1h | 2,1xIN, Max.: | 30min. | 2,75xIN: | 20ms...1,5s | 4xIN: | 8ms...400ms | 10xIN, Max.: | 20ms | 1A...25A | 1,5xIN, Min.: | 1h | 2,1xIN, Max.: | 30min. | 2,75xIN: | 100ms...5s | 4xIN: | 20ms...1ms | 10xIN, Max.: | 50ms | |||||
|
|||||||||||||||||||||||||||||
| Part Nr. | Rated | Voltage | RBC | Melting | SIBA_ | Current | DropMax | Integral | [A] | [mV] | [A2s] | 189020-0.5 | 0,5 | 800 | 50kA@500VAC | 0,19 | 189020-0.63 | 0,63 | 700 | 50kA@500VAC | 0,35 | 189020-0.8 | 0,8 | 600 | 50kA@500VAC | 0,49 | 189020-1 | 1,0 | 400 | 50kA@500VAC | 0,4 | 189020-1.25 | 1,25 | 300 | 50kA@500VAC | 0,8 | 189020-1.6 | 1,6 | 300 | 50kA@500VAC | 1,5 | 189020-2 | 2,0 | 280 | 50kA@500VAC | 2,5 | 189020-2.5 | 2,5 | 260 | 50kA@500VAC | 5 | 189020-3.15 | 3,15 | 240 | 50kA@500VAC | 9 | 189020-4 | 4,0 | 220 | 50kA@500VAC | 18 | 189020-5 | 5,0 | 190 | 50kA@500VAC | 40 | 189020-6.3 | 6,3 | 170 | 50kA@500VAC | 80 | 189020-8 | 8,0 | 160 | 1,5kA@500VAC | 150 | 189020-10 | 10,0 | 150 | 1,5kA@500VAC | 240 | 189020-12.5 | 12,5 | 140 | 1,5kA@500VAC | 500 | 189020-16 | 16,0 | 130 | 1,5kA@500VAC | 920 | 189020-20 | 20,0 | 120 | 1,5kA@440VAC | 1500 | 189020-25 | 25,0 | 110 | 1,5kA@440VAC | 3100 | ||||||||
| RBC = Rated Breaking Capacity | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| • You will find suitable fuse holders starting at product group E1810. |
|
| Additional Products |
| 1,000 pieces in industrial packs available on request, delivery time approx. 4 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.siba.de |
|
