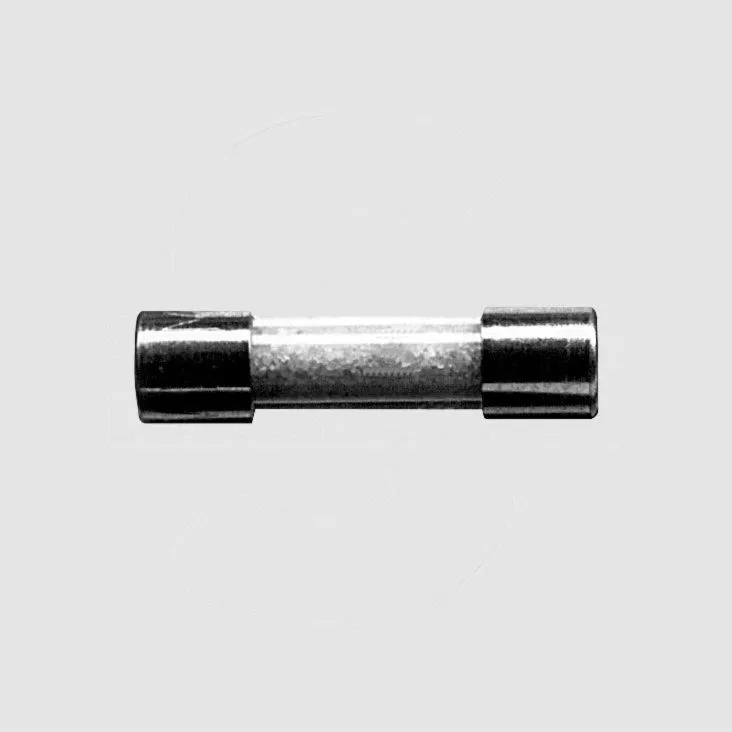

Fuse 6,3x32 Very Quick-acting 1000V 2A
Varenummer:
123-365
Varekode: SIBA7017240-2
Vægt: 2 g
20 stk.
på lager
Gruppe: E1482
SIBA Fuse Links
Series: 7017240
Characteristic: Very Quick Acting
Rated Voltage: 1000V
Housing: 6,3x32mm
SIBA Fuse Links
Series: 7017240
Characteristic: Very Quick Acting
Rated Voltage: 1000V
Housing: 6,3x32mm
| Features |
| Ceramic tube with filling, non transparent End caps brass, nickel-plated |
 |
| Technical Specifications |
| |
| Rated Voltage: | 1000V |
| Fusing Time Limits | |
| 0,1mA...800mA | |
| 1xIN, Min.: | 1h |
| 4xIN, Max.: | 60ms |
| 10xIN, Max.: | 6ms |
| 1A...2A | |
| 1xIN, Min.: | 1h |
| 4xIN: | 1ms...25ms |
| 10xIN, Max.: | 6ms |
| |
| Part-Nr. | Rated | Drop | RBC | Melting |
| SIBA_ | Current | VoltageMax | Integral | |
| [A] | [mV] | [kA] | [A2s] | |
| 7017240-0.315 | 0,315 | 700 | 30 @100VAC/DC | 0,035 |
| 7017240-0.5 | 0,5 | 650 | 30 @100VAC/DC | 0,15 |
| 7017240-1 | 1,0 | 750 | 30 @100VAC/DC | 0,32 |
| 7017240-1.6 | 1,6 | 650 | 30 @100VAC/DC | 0,31 |
| 7017240-2 | 2,0 | 650 | 30 @100VDC | 0,64 |
| RBC = Rated Breaking Capacity | ||||
| ||||
| Note |
| You will find suitable fuse holders starting at product group E1833. |
|
| Approvals |
 |
|
| Additional Products |
| 1,000 pieces in industrial packs available on request, delivery time approx. 4 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.siba.de |
|
