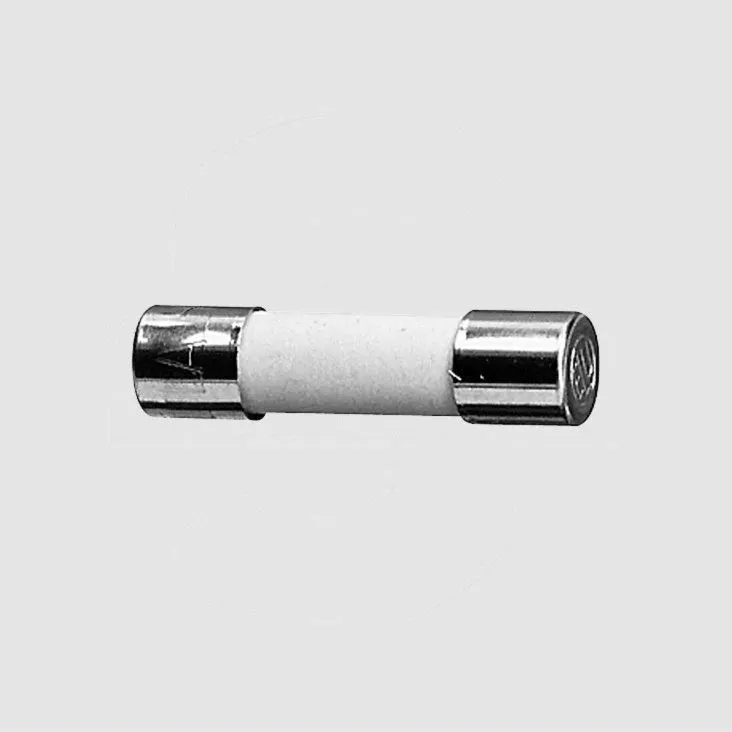

Fuse 6,3x32 Very Quick-acting 700V 0,4A

Varenummer: 123-347
Varekode: SIBA7012540-0.4
Vægt: 2 g
13 stk. på lager
Vis lignende produkter i kategorien "Superflink (FF)"
GROUP:E1481
Gruppe: E1481
SIBA Fuse Links
Series: 7012540
Characteristic: Very Quick Acting
Rated Voltage: 700/500V
Housing: 6,3x32mm
Features
Ceramic tube with filling
End caps brass, nickel-plated
Technical Specifications
Rated Voltage:
700/500V
Fusing Time Limits
0,315A...800A
1xIN, Min.:
1h
4xIN, Max.:
60ms
10xIN, Max.:
6ms
1,0A...5,0A
1xIN, Min.:
1h
2,75xIN:
4ms...150ms
4xIN:
1ms...25ms
10xIN, Max.:
5ms
6,3A...16,0A
1,2xIN, Min.:
1h
2,75xIN:
4ms...300ms
4xIN:
1ms...30ms
10xIN, Max.:
2ms
Part Nr.
Rated
Drop
RBC
Melting
SIBA_
Current
VoltageMax
 Integral
 [A]
[mV]
[kA]
[A2s]
7012540-0.310,315
700
50 @700VAC
0,04
7012540-0.40,4
650
50 @700VAC
0,07
7012540-0.50,5
650
50 @700VAC
0,15
7012540-0.630,63
650
50 @700VAC
0,15
7012540-0.80,8
600
50 @700VAC
0,32
7012540-11,0
750
50 @700VAC
0,32
7012540-1.251,25
700
50 @700VAC
0,2
7012540-1.61,6
650
50 @700VAC
0,31
7012540-22,0
650
50 @700VAC
0,64
7012540-2.52,5
550
50 @500VAC
1,2
7012540-3.153,15
500
50 @500VAC
2,0
7012540-44,0
450
50 @500VAC
5,0
7012540-55,0
400
50 @500VAC
10
7012540-6.36,3
400
50 @500VAC
3,0
7012540-88,0
350
50 @500VAC
6,5
7012540-1010,0
350
50 @500VAC
12
7012540-12.512,5
300
50 @500VAC
18
7012540-1616,0
300
50 @500VAC
31
RBC = Rated Breaking Capacity
Note
You will find suitable fuse holders starting at product group E1810.
Additional Products
1,000 pieces in industrial packs available on request, delivery time approx. 4 weeks.
Terms of Delivery
Minimum order quantity: 1 PKU = 10 pieces
Manufacturer

http://www.siba.de
Inkl. moms
Kr. 25,00
  • v/10 – Kr. 20,00
  • v/30 – Kr. 17,50
  • v/100 – Kr. 12,50
