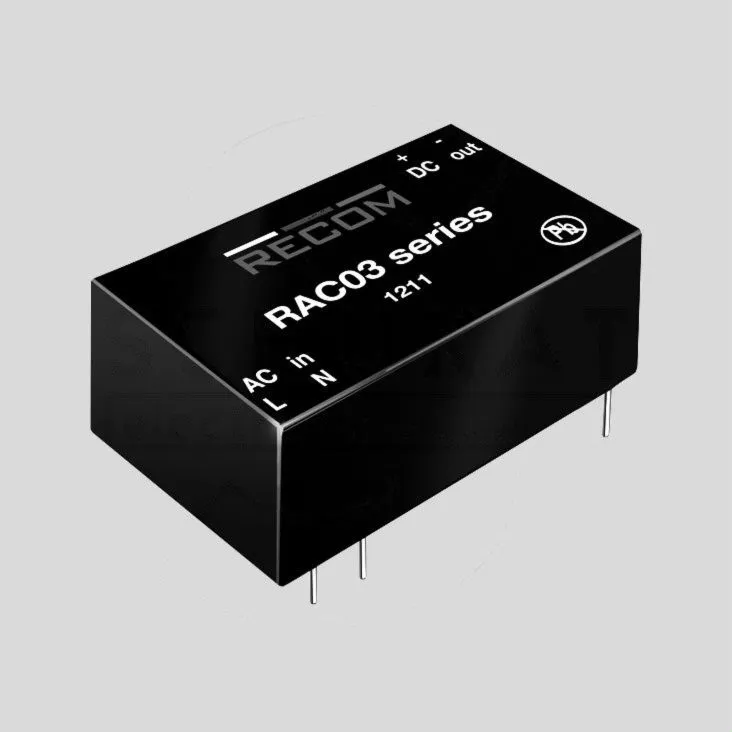

SPS Modul 3W 12V/250mA
Varenummer:
123-039
Varekode: RAC03-12SC
Vægt: 30 g
0 stk.
på lager
Gruppe: L7833
RECOM AC/DC Converter Modules
Series: RAC03-C
Enclosed Type, Single Output
Output: 3W
RECOM AC/DC Converter Modules
Series: RAC03-C
Enclosed Type, Single Output
Output: 3W
| Features |
| • Enclosed type for PCB mounting • Universal input • Protections: short circuit • Ultra-low standby power consumption |
 |
| Technical Specifications |
| |
| Input Voltage: | 90...264V AC (47...63Hz) |
| 120...370V DC | |
| Input Inrush Current, Max.: | 20A |
| Withstand Voltage (I/P-O/P): | 3000V AC / 1min. |
| Operating Temperature: | -25...+75°C |
| Weight: | 30g |
| |
| Part Nr. | UA | IA | PA | DUA | URN | h |
| RAC03_ | [V] | [mA] | [W] | [%] | [mVp-p] | [%] |
| 05SC | 5 | 600 | 3 | 5 | 100 | 73 |
| 09SC | 9 | 333 | 3 | 5 | 100 | 76 |
| 12SC | 12 | 250 | 3 | 5 | 100 | 76 |
| 24SC | 24 | 125 | 3 | 5 | 100 | 78 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency, Typ. | ||||||
| ||||||

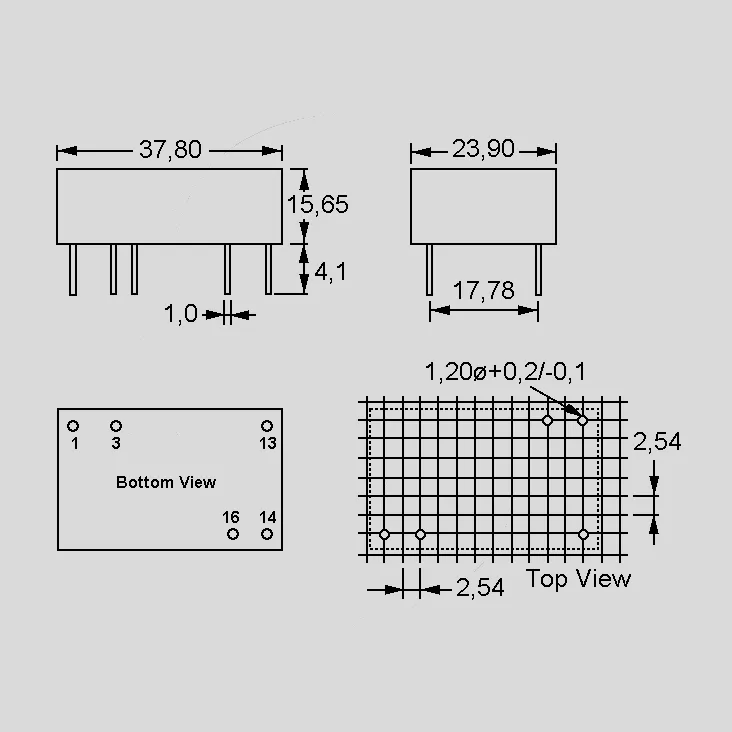

| Pin Assigment |
| |
| Pin 1: | V ACin |
| Pin 3: | V ACin |
| Pin 13: | NC |
| Pin 14: | -V DCout |
| Pin 16: | +V DCout |
| |
| Norms |
| EN-60950-1, UL-60950-1 |
|
| Approvals |
  (E224736) |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.recom-electronic.com |
|
