SPS Modul 2W 12V/167mA
Varenummer:
123-029
Varekode: RAC02-12SC
Vægt: 27 g
0 stk.
på lager
Gruppe: L7831
RECOM AC/DC Converter Modules
Series: RAC01-C and RAC02-C
Enclosed Type, Single Output
Output: 1W and 2W
RECOM AC/DC Converter Modules
Series: RAC01-C and RAC02-C
Enclosed Type, Single Output
Output: 1W and 2W
| Features |
| • Enclosed type for PCB mounting • Universal input • Protections: short circuit • Ultra-low standby power consumption |
 |
| Technical Specifications |
| |
| Input Voltage: | 90...277V AC (47...63Hz) |
| 120...390V DC | |
| Input Inrush Current, Max.: | 20A |
| Withstand Voltage (I/P-O/P): | 3000V AC / 1min. |
| Operating Temperature: | |
| RAC01_: | -25...+80°C |
| RAC02_: | -25...+75°C |
| Weight: | 25g |
| I/P = Input, O/P = Output | |
| |
| Part Nr. | UA | IA | PA | DUA | URN | h |
| RAC_ | [V] | [mA] | [W] | [%] | [mVrms] | [%] |
| 01-05SC | 5 | 200 | 1 | 5 | 100 | 68 |
| 01-09SC | 9 | 111 | 1 | 5 | 100 | 72 |
| 01-12SC | 12 | 83 | 1 | 5 | 100 | 72 |
| 01-24SC | 24 | 42 | 1 | 5 | 100 | 73 |
| 02-05SC | 5 | 400 | 2 | 5 | 100 | 70 |
| 02-09SC | 9 | 222 | 2 | 5 | 100 | 74 |
| 02-12SC | 12 | 167 | 2 | 5 | 100 | 74 |
| 02-24SC | 24 | 83 | 2 | 5 | 100 | 77 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency, Typ. | ||||||
| ||||||

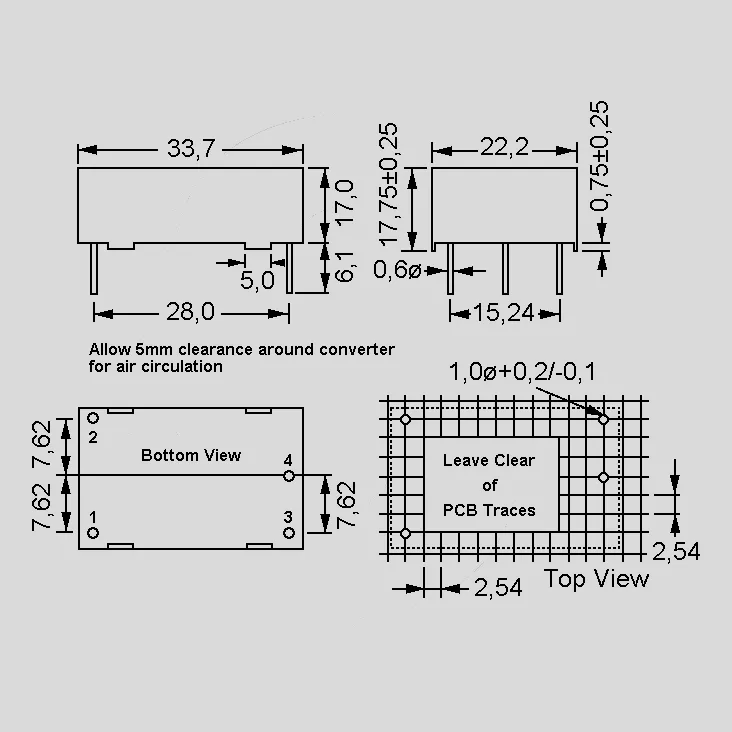

| Pin Assigment |
| |
| Pin 1: | V ACin |
| Pin 2: | V ACin |
| Pin 3: | -V DCout |
| Pin 4: | +V DCout |
| |
| Norms |
| EN-60950-1, UL-60950-1 |
|
| Approvals |
  (E224736) |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.recom-electronic.com |
|
