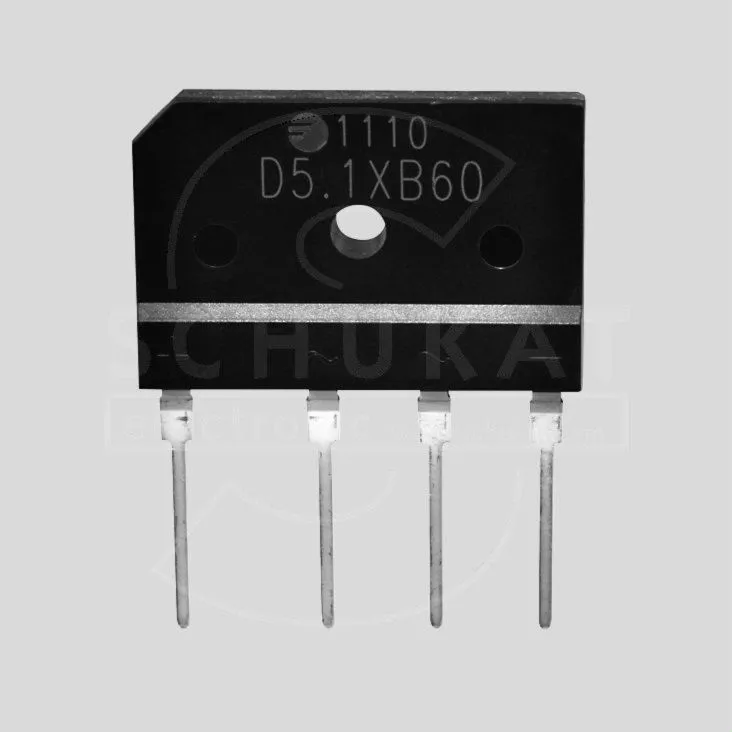

Bridge Rect. 5A 420V(RMS) 7,5/10mm
Varenummer:
122-661
Varekode: D5.1XB60
Vægt: 10 g
9 stk.
på lager
Gruppe: V7528
FAGOR ELECTRONICA (FAG) Bridge Rectifiers 5A (With Heatsink)
Glass Passivated
Series: D5.1XB_

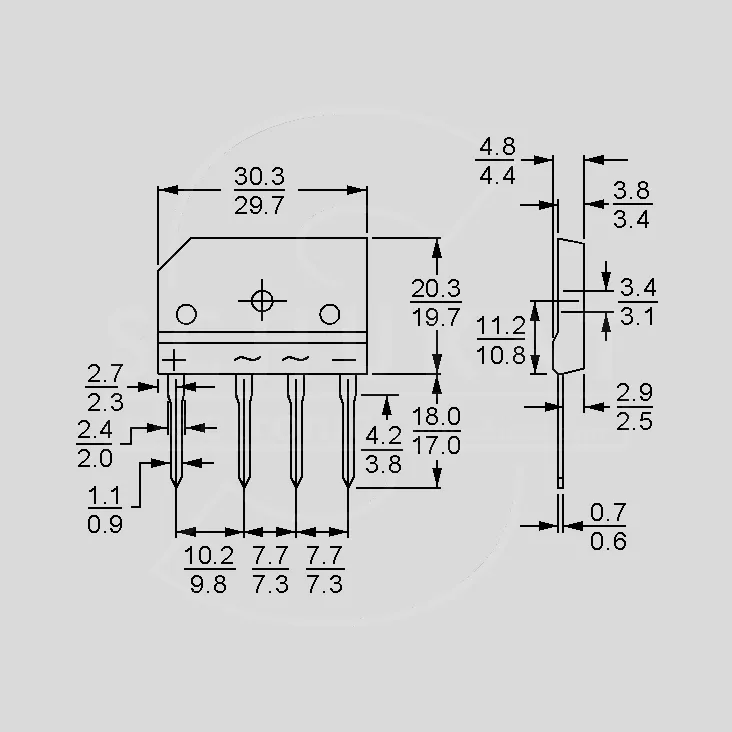

Case: In-Line, Circular Hole, 7,5/10mm Pin Spacing
FAGOR ELECTRONICA (FAG) Bridge Rectifiers 5A (With Heatsink)
Glass Passivated
Series: D5.1XB_
Case: In-Line, Circular Hole, 7,5/10mm Pin Spacing
| Technical Specifications |
| The plastic conforms to UL94V-0 Max. solderability 260C/10s Operating temperature range -40...+150C |
 |
| Part Nr. | URRM | URMS | UF | IF(AV) | IR |
| [V] | [V] | [V] | [A] | [µA] | |
| D5.1XB20 | 200 | 140 | 1,0 | 5,0 | 5 |
| D5.1XB60 | 600 | 420 | 1,0 | 5,0 | 5 |
| URRM = Max. Peak Recurrent Reverse Voltage, URMS = Max. RMS Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Rectified Current, IR = Max. Reverse Current | |||||
| |||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.fagorelectronica.com |
|
Produktfiler
