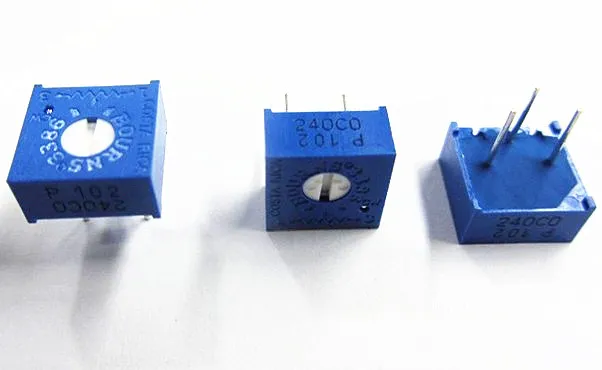

BOURNS - TRIMMER, 2K
Varenummer:
122-014
Varekode: 3386P-1-202LF
Vægt: 3 g
170 stk.
på lager
- TRIMMER, 2K
- Track Resistance: 2kohm
- No. of Turns: 1
- Resistance Tolerance: ± 10%
- Temperature Coefficient: ± 100ppm/°C
- Power Rating: 500mW
- Potentiometer Mounting: Through Hole
- SVHC: No SVHC (18-Jun-2012)
- Adjustment Type: Top
- Contact Resistance Variation +: 1%
- End Resistance: 2ohm
- External Length / Height: 4.8mm
- Full Power Rating Temperature: 85°C
- Lead Diameter: 0.5mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Package / Case: PCB Mount
- Proof Voltage: 900V
- Resistance: 2kohm
- Resistor Element Material: Variable Rotary Cermet
- Rotation Mechanical Angle: 310°
- Series: 3386P
- Temperature Coeff. +: 100ppm/°C
- Temperature Coeff. -: 100ppm/°C
- Terminal Type: PCB Terminals
- Termination Type: Solder
- Tolerance +: 10%
- Tolerance -: 10%
- Track Taper: Linear
- Voltage Rating: 300V
- Voltage Rating V DC: 300V
