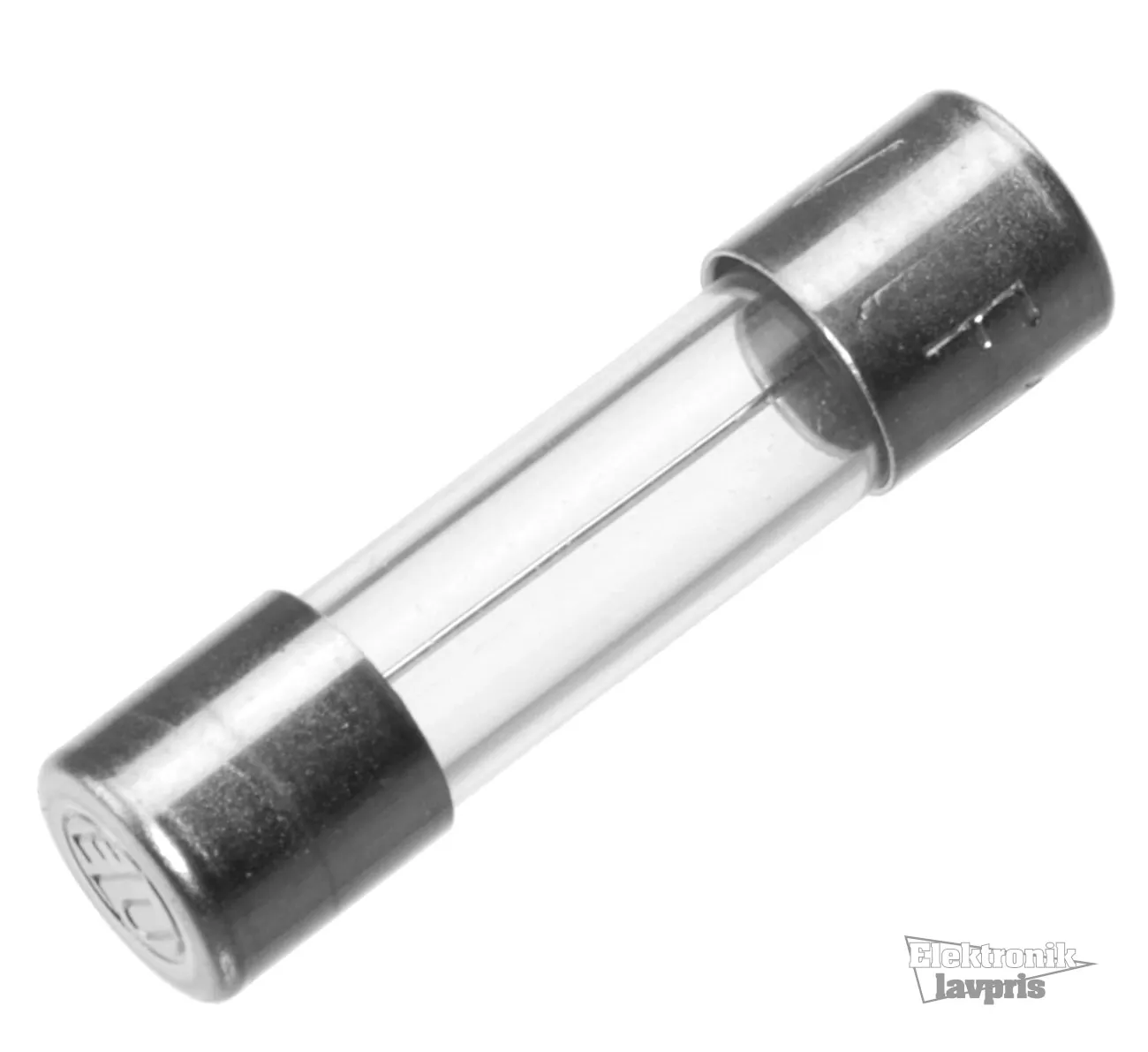

Fuse 5x20 Quick-acting 0,040A
Varenummer:
121-986
Varekode: FSF00,040
8 stk.
på lager
| Features |
| • Transparent glass tube • Nickel plated, brass end caps |
 |
| Technical Specifications |
|
|
| Rated Voltage: | 250V |

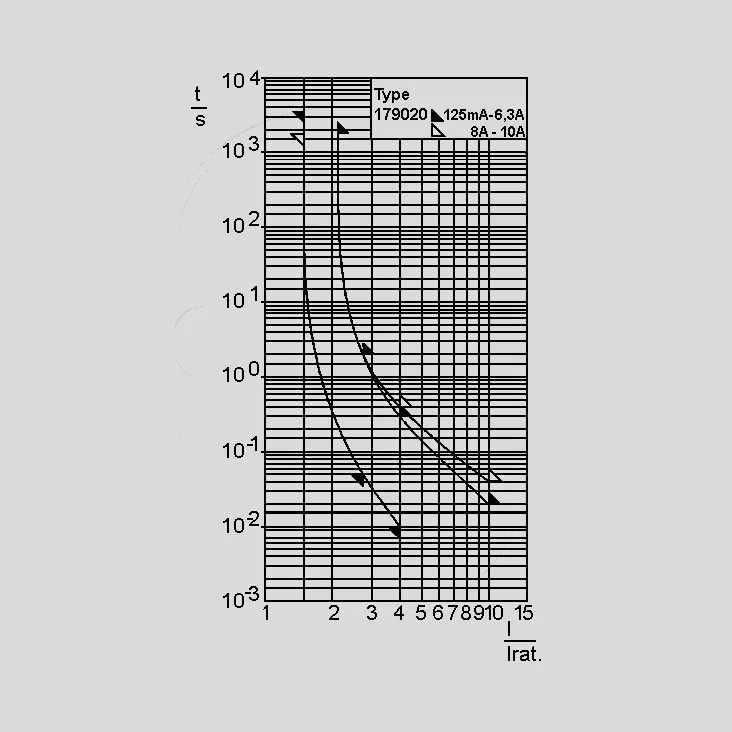

| Fusing Time Limits 32mA...100mA: | |
| 1,5xIN: | 1h...30min. |
| 2,75xIN: | 10ms...50ms |
| 4xIN: | 3ms...100s |
| 10xIN: | 20ms |
| Fusing Time Limits 125mA...6,3A: | |
| 1,5xIN: | 1h...30min. |
| 2,75xIN: | 50ms...2s |
| 4xIN: | 10ms...300ms |
| 10xIN: | 20ms |
| Fusing Time Limits 8A...10A: | |
| 1,5xIN, Min.: | 30min. |
| 2,1xIN, Max.: | 30min. |
| 2,75xIN: | 50ms...2s |
| 4xIN: | 10ms...400ms |
| 10xIN, Max.: | 40ms |
|
|
| Part Nr. | Rated | RBC | Voltage | ||||
| Current | Drop | ||||||
| [A] | [A AC] | [mV] |  |
 |
 |
 |
|
| FSF00.1 | 0,1 | 35 | 2200 | x | x | x | x |
| FSF00.125 | 0,125 | 35 | 350 | x | x | x | x |
| FSF00.16 | 0,16 | 35 | 310 | x | x | x | x |
| FSF00.2 | 0,2 | 35 | 290 | x | x | x | x |
| FSF00.25 | 0,25 | 35 | 280 | x | x | x | x |
| FSF00.315 | 0,315 | 35 | 230 | x | x | x | x |
| FSF00.4 | 0,4 | 35 | 200 | x | x | x | x |
| FSF00.5 | 0,5 | 35 | 160 | x | x | x | x |
| FSF00.63 | 0,63 | 35 | 140 | x | x | x | x |
| FSF00.8 | 0,8 | 35 | 130 | x | x | x | x |
| FSF01 | 1,0 | 35 | 130 | x | x | x | x |
| FSF01.25 | 1,25 | 35 | 120 | x | x | x | x |
| FSF01.4 | 1,4 | 35 | 120 | ||||
| FSF01.6 | 1,6 | 35 | 120 | x | x | x | x |
| FSF02.0 | 2,0 | 35 | 120 | x | x | x | x |
| FSF02.5 | 2,5 | 35 | 120 | x | x | x | x |
| FSF03.15 | 3,15 | 35 | 120 | x | x | x | x |
| FSF04 | 4,0 | 40 | 100 | x | x | x | x |
| FSF05 | 5,0 | 50 | 100 | x | x | x | x |
| FSF06.3 | 6,3 | 63 | 100 | x | x | x | x |
| FSF08 | 8,0 | 80 | 100 | ||||
| FSF10 | 10,0 | 100 | 100 | ||||
| FSF16 | 16,0 | 300 | 100 | ||||
| RBC = Rated Breaking Capacity | |||||||
|
|||||||
| Norms |
| IEC60127-2/2, EN60127-2/2, DIN VDE0820-2/2 |
|
| Labelling |
| On the end caps: manufacturers logo, rated voltage and breaking capacity: S = Quick-acting, M = Medium Time-lag, T = Time-lag |
