NPN 70V 7A 50W TO3

NPN 70V 7A 50W TO3

Varenummer: 121-924

Varekode: 2SC521A

13 stk. på lager

Bestil nu for afsendelse i morgen

Vis lignende produkter i kategorien "2SC.."

Type Designator: 2SC521A

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 50 W

Maximum Collector-Base Voltage |Vcb|: 70 V

Maximum Collector-Emitter Voltage |Vce|: 50 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 7 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 5 MHz

Collector Capacitance (Cc): 250 pF

Forward Current Transfer Ratio (hFE), MIN: 30

Noise Figure, dB: -

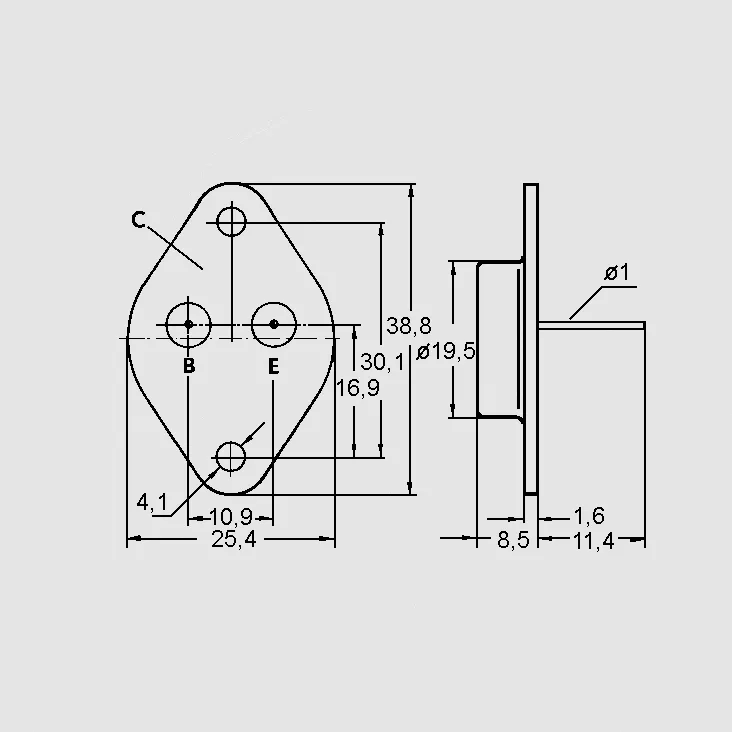

Package: TO3
