  5. NPN FM-in/mix/osc 30V 20mA 0,25W TO92

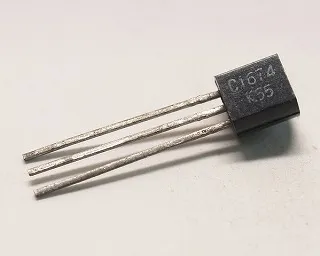

NPN FM-in/mix/osc 30V 20mA 0,25W TO92

Varenummer: 121-920
Varekode: 2SC1674
60 stk. på lager
Bestil nu for afsendelse i morgen
Yderligere kan skaffes fredag d. 20/11
Vis lignende produkter i kategorien "2SC.."

Type Designator: 2SC1674

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.25 W

Maximum Collector-Base Voltage |Vcb|: 30 V

Maximum Collector-Emitter Voltage |Vce|: 20 V

Maximum Emitter-Base Voltage |Veb|: 4 V

Maximum Collector Current |Ic max|: 0.02 A

Max. Operating Junction Temperature (Tj): 175 °C

Transition Frequency (ft): 300 MHz

Collector Capacitance (Cc): 2 pF

Forward Current Transfer Ratio (hFE), MIN: 40

Noise Figure, dB: -

Package: TO92

Inkl. moms
Kr. 19,00
Kr. 44,45
