Fuldtone højttaler 3"" 8 Ohm 20W
Varenummer:
121-692

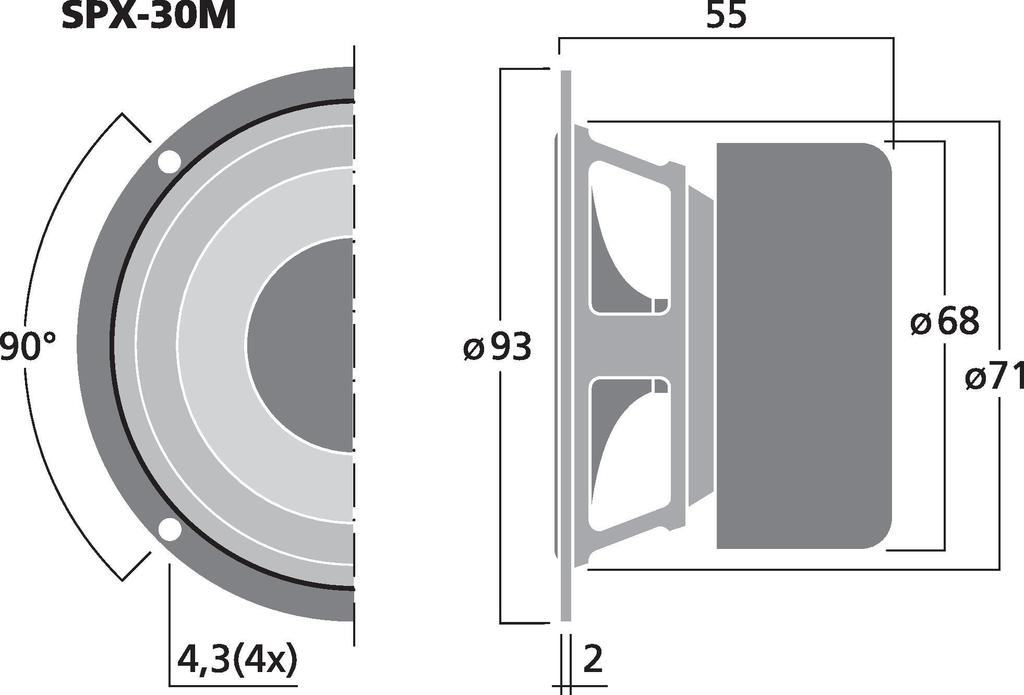

Varekode: SPX-30M
Vægt: 680 g
3 stk.
på lager
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 100Hz |
| Max. frequency range | f3-20,000Hz |
| Music power | 40WMAX |
| Power rating (P) | 20WRMS |
| SPL (1W/1m) | 86dB |
| Suspension compl. (Cms) | 1.23mm/N |
| Moving mass (Mms) | 2.1g |
| Mech. Q factor (Qms) | 3.453 |
| Electr. Q factor (Qes) | 0.89 |
| Total Q factor (Qts) | 0.71 |
| Equivalent volume (Vas) | 1.78 l |
| DC resistance (Re) | 6.4Ω |
| Force factor (BxL) | 3.05Tm |
| Voice coil induct. (Le) | 0.18mH |
| Voice coil diameter | Ø 20mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±1.1mm |
| Eff. cone area (Sd) | 32cm2 |
| Magnet weight | 119g |
| Weight | 0.5kg |
Hi-fi full range speaker, 40WMax, 8Ω
- Compact hi-fi full range speaker with a very good sound quality
- Low-resonance polypropylene cone
- Centering spider with rear ventilation
- Shielded magnetic system
- Application in small speakers or satellite systems
- Ideally suited for the application in FAST speakers (full range and subwoofer technology)
HOBBY HiFi 03/2012
"Without a correction circuit, reaches its full potential ... an excellent 3" full range speaker available at an amazingly attractive price."
