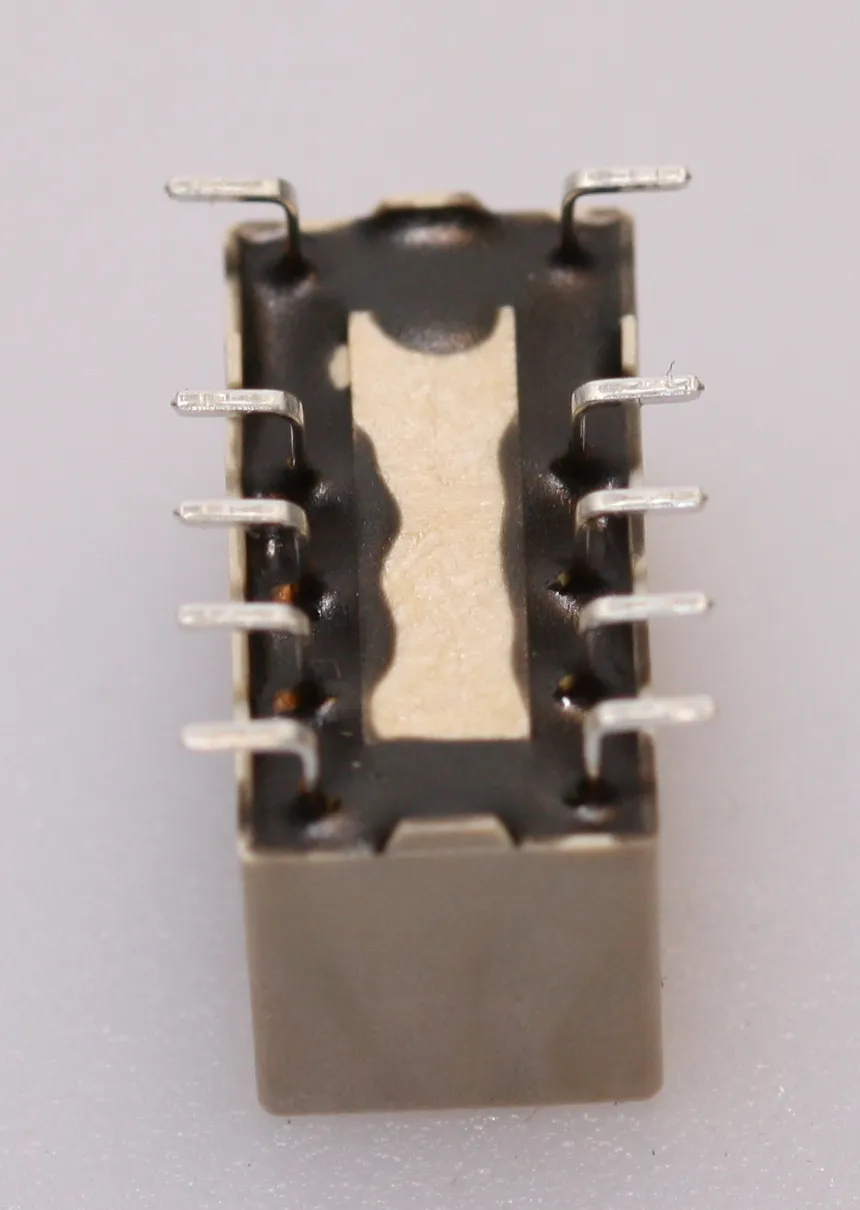

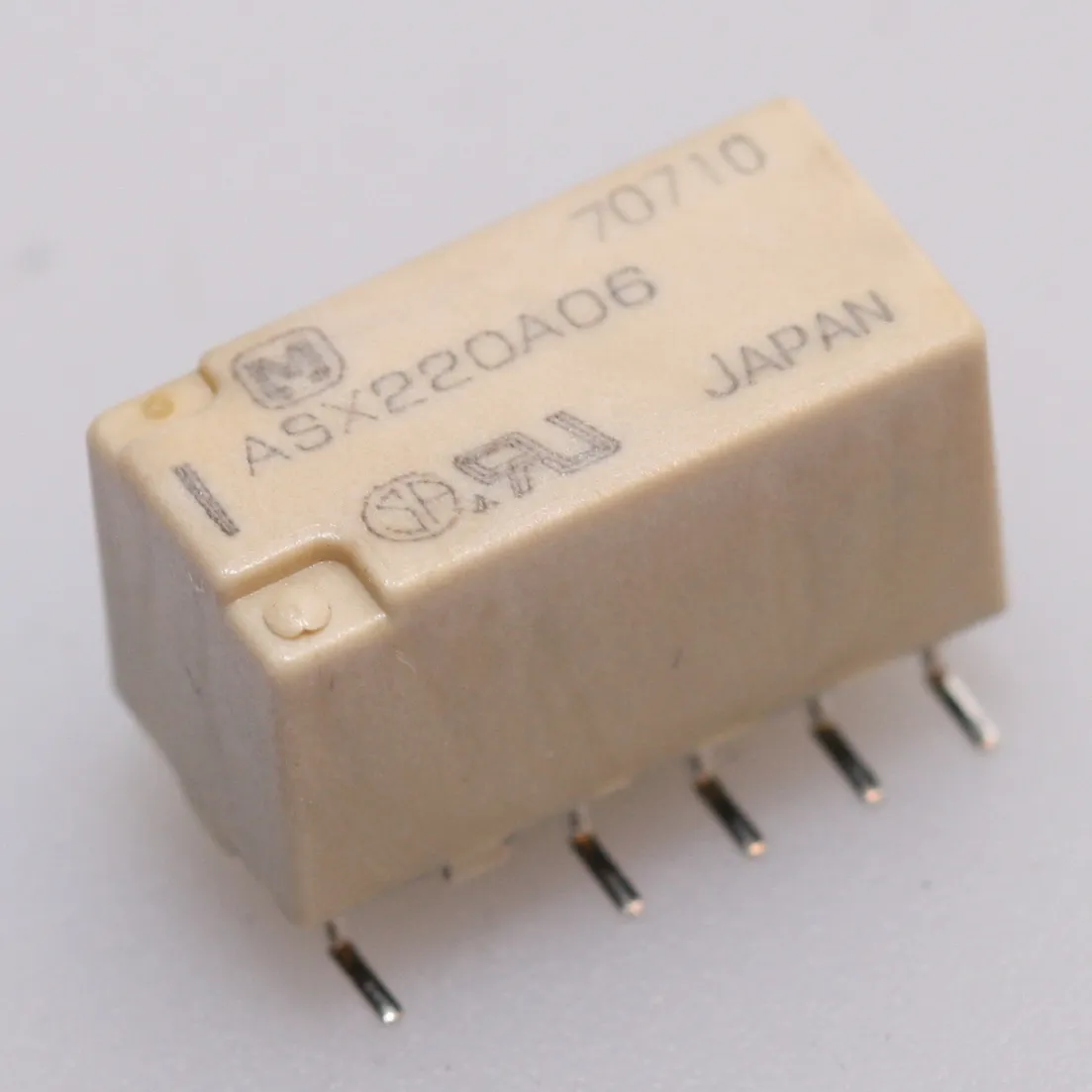

PANASONIC Relæ 2 spoler 2 x 514R
Varenummer:
121-531
Varekode: ASX220A06
Produktet udgår - Sælges så længe lager haves!
200 stk.
på lager
- PCB RELAY
- Coil Type: DC
- Contact Configuration:
- Contact Current Max:
- Contact Voltage DC Nom:
- Coil Voltage VDC Nom: 6V
- Coil Current: 11.1mA
- Coil Resistance: 2x514R
- Coil Power Cont: 70mW
- Relay Mounting: SMD
- External Height: 8.2mm
- External Width: 15mm
- External Depth: 7.4mm
- SVHC: No SVHC (19-Dec-2011)
- Contact Configuration: DPDT
- Contact Current DC Max: 11.1A
- External Length / Height: 8.2mm
- Mounting Type: SMD
- No. of Poles: 2
- Nom Operating Power: 70mW
- Relay Type: General Purpose
- Series: ASX
