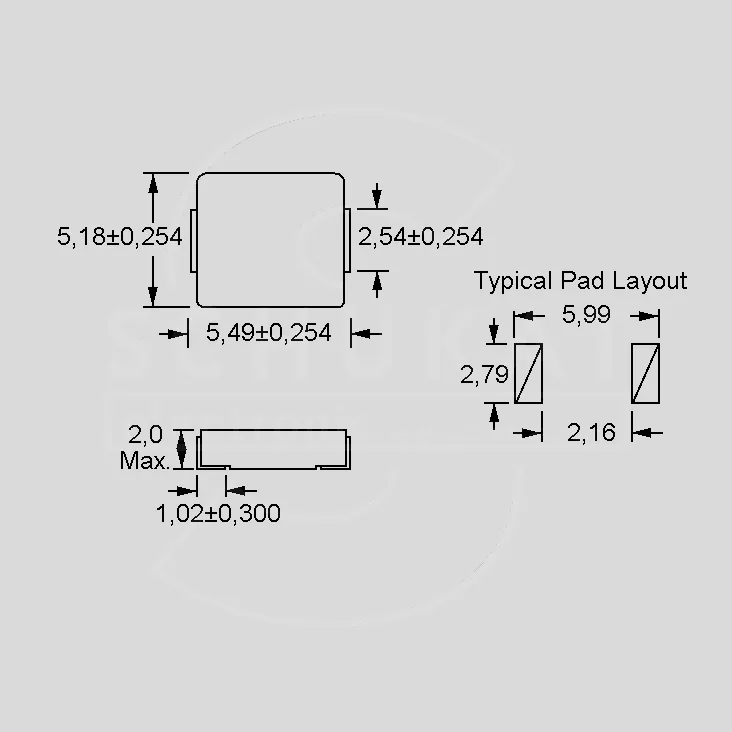

SMD Inductor IHLP2020BZER 6,8µH
Varenummer:
120-202
Varekode: IHLP2020BZER6R8M01
Vægt: 0 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Specifikationer
| Induktans | 6.8 µH |
|---|
Gruppe:
D2338
Vishay SMD Inductors
Series: IHLP2020
Vishay SMD Inductors
Series: IHLP2020
| Features |
| Compact size Shielded construction Frequency range 1MHz (series 11) and 5MHz (series 01) Lowest DC Resistance/mH in this package size Handles high transient current spikes without saturation Ultra low buzz noise, due to composite construction Series 11: excellent temperature stability for inductance and saturation Temperature range: -55...+125C |
 |
| Technical Specifications |
| Part Nr. | Series | L | RDC | RDC | IN | ISat |
| typ. | max. | |||||
| IHLP2020_Z_ | [µH] | [W] | [W] | [A] | [A] | |
| ERR10M01 | 01 | 0,1 | 3,6 | 3,9 | 17 | 45 |
| ERR22M01 | 01 | 0,22 | 4,9 | 5,2 | 15 | 22 |
| ERR33M01 | 01 | 0,33 | 7,6 | 8,2 | 12 | 25 |
| ERR47M01 | 01 | 0,47 | 8,9 | 9,4 | 11,5 | 21 |
| ERR68M01 | 01 | 0,68 | 11,2 | 12,4 | 10 | 15 |
| ER1R0M01 | 01 | 1 | 18,9 | 20 | 7 | 16 |
| ER2R2M01 | 01 | 2,2 | 45,6 | 50,1 | 4,2 | 12,5 |
| ER3R3M01 | 01 | 3,3 | 79,2 | 85,5 | 3,3 | 8,5 |
| ER3R3M11 | 11 | 3,3 | 36,4 | 40,4 | 5,5 | 7 |
| ER4R7M01 | 01 | 4,7 | 108 | 116,6 | 2,8 | 5 |
| ER4R7M11 | 11 | 4,7 | 54 | 60 | 4,5 | 5,2 |
| ER5R6M01 | 01 | 5,6 | 113 | 122 | 2,5 | 4,5 |
| ER6R8M01 | 01 | 6,8 | 139 | 150 | 2,4 | 4,3 |
| ER100M01 | 01 | 10 | 184 | 199 | 2,3 | 4 |
| ER100M11 | 11 | 10 | 122,1 | 131,9 | 2,75 | 2,25 |
| ER220M11 | 11 | 22 | 260 | 270 | 1,9 | 1,7 |
| L = Inductance, RDC = DC Resistance, Max., IN = Rated Current, Max. with DT = 40C, Saturation Current | ||||||
| ||||||
| Note |
| REACH Art.33: Article contains Disodium tetraborate, anhydrous (CAS #1330-43-4, 1020ppm), Boric acid (CAS #10043-35-3, 1250ppm) |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.vishay.com |
|
Inkl. moms
Kr. 9,03
- v/10 – Kr. 6,94
- v/100 – Kr. 5,55
