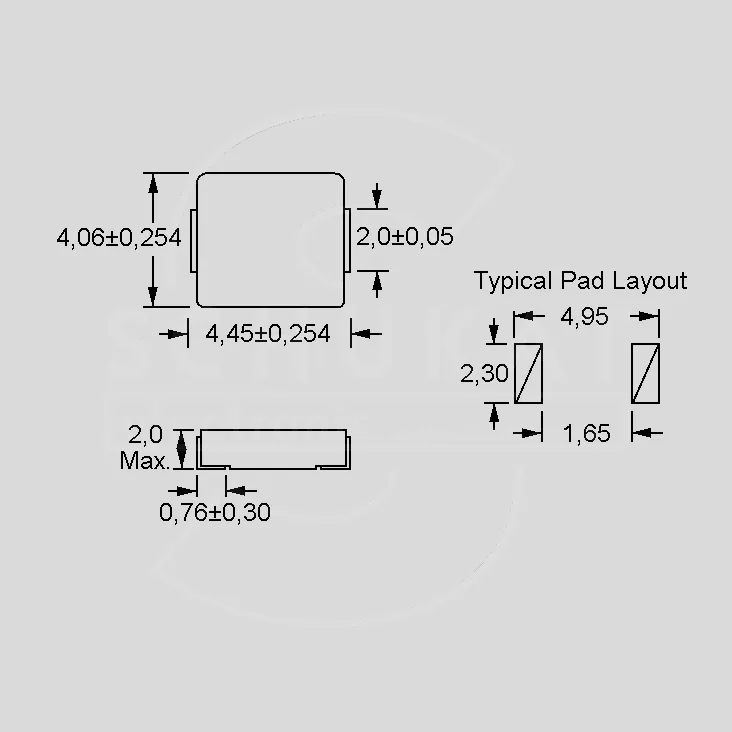

SMD Inductor IHLP1616BZER 4,7µH
Varenummer:
120-189
Varekode: IHLP1616BZER4R7M11
Vægt: 0 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Specifikationer
| Induktans | 4.7 µH |
|---|
Gruppe:
D2337
Vishay SMD Inductors
Series: IHLP1616
Vishay SMD Inductors
Series: IHLP1616
| Features |
| Compact size Shielded construction Frequency range 1MHz (series 11) and 5MHz (series 01) Lowest DC Resistance/mH in this package size Handles high transient current spikes without saturation Ultra low buzz noise, due to composite construction Temperature range: -55...+125C |
 |
| Technical Specifications |
| Part Nr. | Series | L | RDC | RDC | IN | ISat |
| typ. | max. | |||||
| IHLP1616BZ_ | [µH] | [W] | [W] | [A] | [A] | |
| ERR47M01 | 01 | 0,47 | 16 | 18 | 5,6 | 11,5 |
| ER1R0M11 | 11 | 1 | 24 | 27 | 4,5 | 5 |
| ER2R2M11 | 11 | 2,2 | 61 | 68 | 3,25 | 3,25 |
| ER4R7M11 | 11 | 4,7 | 95 | 105 | 1,7 | 1,75 |
| L = Inductance, RDC = DC Resistance, Max., IN = Rated Current, Max. with DT = 40C, Saturation Current | ||||||
| ||||||
| Note |
| REACH Art.33: Article contains Disodium tetraborate, anhydrous (CAS #1330-43-4, 1020ppm), Boric acid (CAS #10043-35-3, 1250ppm) |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.vishay.com |
|
Inkl. moms
Kr. 12,50
- v/10 – Kr. 10,42
- v/100 – Kr. 8,33
