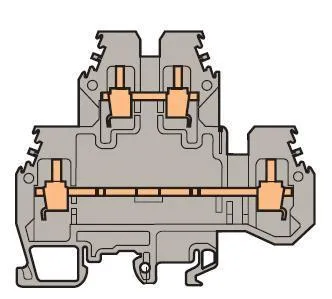

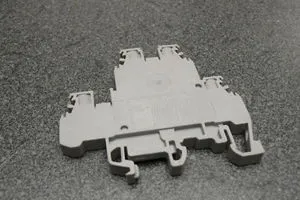

ENTRELEC UK - TERMINAL BLOCK, DIN, 26A, 2DECK
Varenummer:
120-027
Varekode: 11549013
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
- TERMINAL BLOCK, DIN, 26A, 2DECK
- Connector Type: Terminal Block, DIN Rail
- Series: 5000
- Connector Mounting: DIN Rail
- Pitch Spacing: 5mm
- No. of Contacts: 2
- Wire Size (AWG): 24AWG to 12AWG
- Approval Bodies: UL, CSA
- Colour: Grey
- Connector Mounting Orientation: DIN Rail
- Connector Type: Terminal Block, DIN Rail
- Current Rating: 24A
- External Length / Height: 64.5mm
- External Width: 65.5mm
- No. of Poles: 2
- No. of Ways: 2
- Terminal Type: Cage Clamp
- Voltage Rating V AC: 750V
- Wire Area Size Max: 2.5mm²
- Wire Area Size Min: 0.22mm²
- Wire Area Size Solid Max: 4mm²
- Wire Area Size Stranded Max: 2.5mm²
- Wire Size AWG Max: 12AWG
- Wire Size AWG Min: 24AWG
- Wire Size Range (AWG): 24-12
