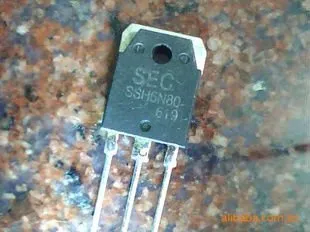

MOSFET N-CH 800V 6A 170W TO-3P
Type Designator: SSH6N80
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 170 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 800 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
|Id| ⓘ - Maximum Drain Current: 6 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 4.5 V
Qg ⓘ - Total Gate Charge: 150 nC
tr ⓘ - Rise Time: 200 nS
Cossⓘ - Output Capacitance: 210 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 1.9 Ohm
Package: TO-3P
