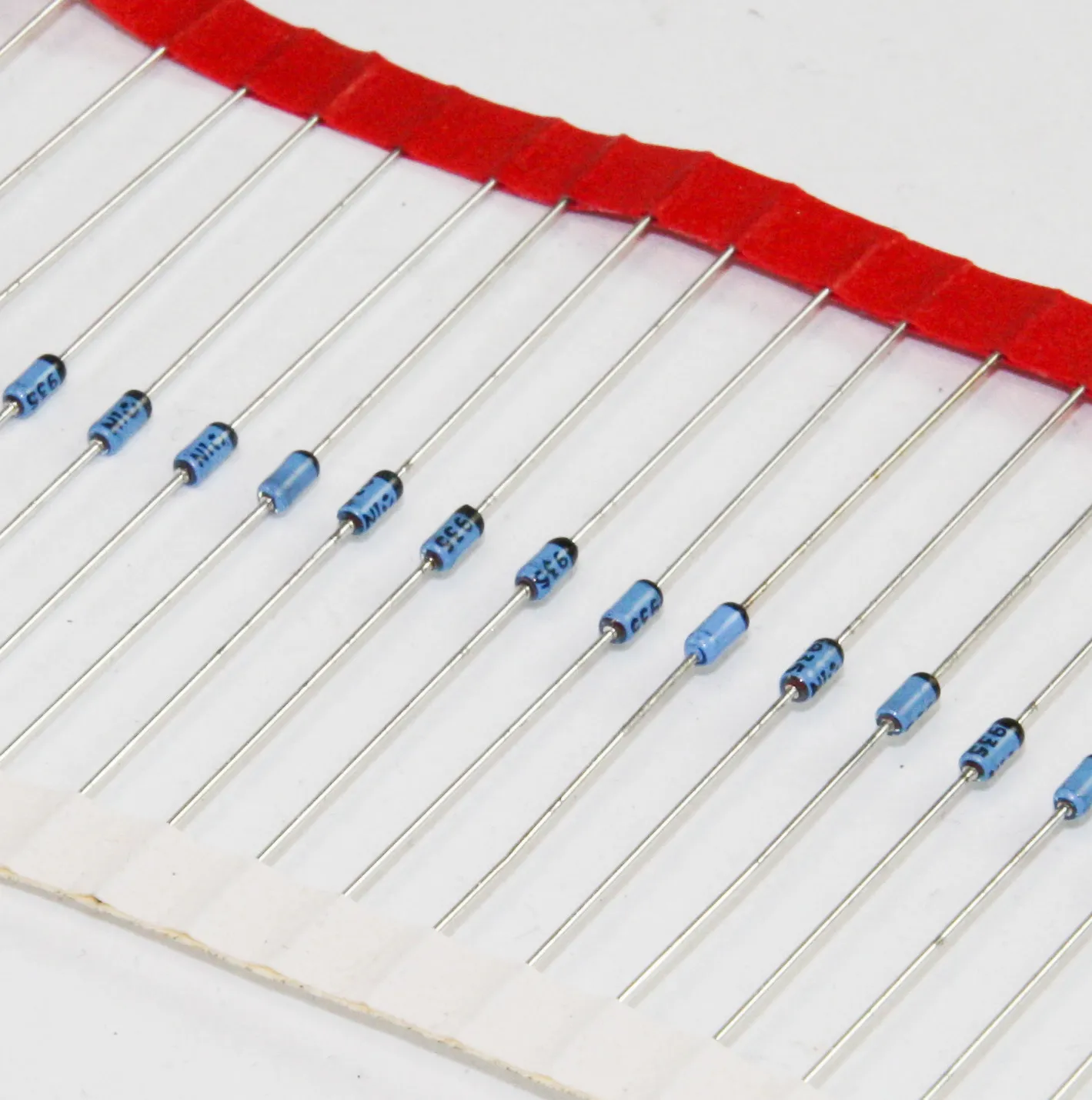

Schottky 30V 0,2A DO-35
Varenummer:
119-568
Varekode: BAT43
Vægt: 0 g
162 stk.
på lager
- DIODE, SCHOTTKY, SMALL SIGNAL
- Diode Type: Schottky
- Repetitive Reverse Voltage Vrrm Max: 30V
- Forward Current If(AV): 200mA
- Forward Voltage VF Max: 450mV
- Reverse Recovery Time trr Max: 5ns
- Forward Surge Current Ifsm Max: 4A
- Diode Case Style: DO-35
- No. of Pins: 2
- SVHC: No SVHC (20-Jun-2011)
- Alternate Case Style: SOD-27
- Current If @ Vf: 15mA
- Current Ifsm: 4A
- Device Marking: BAT43
- External Diameter: 1.85mm
- External Length / Height: 4.25mm
- Forward Voltage: 450mV
- Junction Temperature Tj Max: 150°C
- Package / Case: DO-35
- Termination Type: Axial Leaded
Produktfiler
