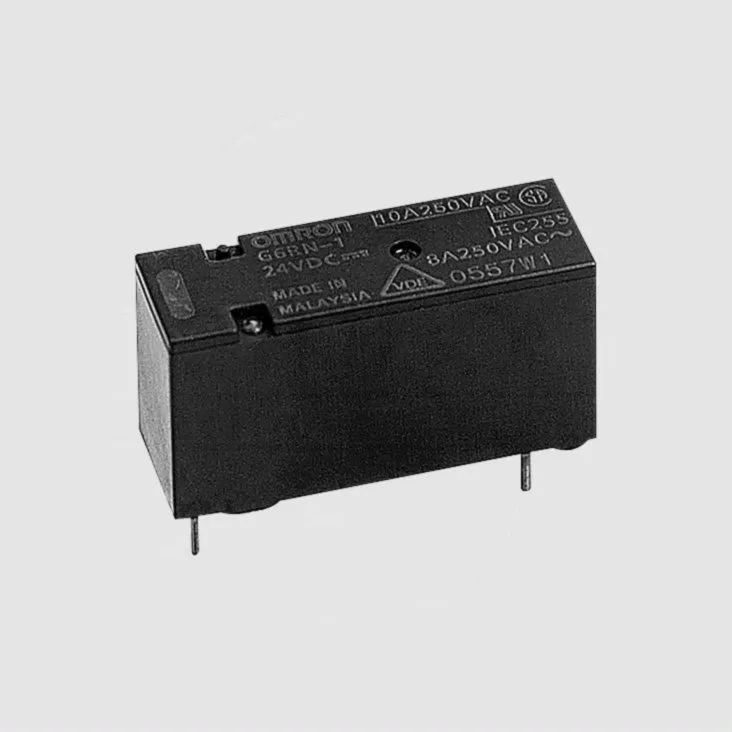

1 x skifte relæ 5VDC 8A 114R P3,2
Varenummer:
119-488
Varekode: G6RN1-5
Vægt: 9 g
20 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 160 stk. kan skaffes mandag d. 9/11
Specifikationer
| Relæ kontakt | SPDT |
|---|---|
| Mærkestrøm | 8 A |
| Spolespænding | 5 V |
| Spolemodstand | 114 Ω |
- RELAY, PCB, SPCO, 5VDC
- Relay Type: Power
- Coil Voltage VDC Nom: 5V
- Contact Current Max: 8A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- Coil Resistance: 114ohm
- Contact Configuration: SPCO
- Coil Type: DC
- Coil Current: 44mA
- Nom Operating Power: 220mW
- Relay Mounting: PCB
- External Height: 15.3mm
- External Width: 28.8mm
- External Depth: 10.5mm
- SVHC: No SVHC (20-Jun-2011)
- Approval Bodies: CSA and VDE
- Approval Category: UL Recognised
- Coil Operating Lower Percent Limit: 70%
- Coil Operating Upper Percent Limit: 110%
- Contact Configuration: SPCO
- Contact Current AC Max: 8A
- Contact Current DC Max: 5A
- Contact Material: AgNi
- Contact Plating: Gold
- Contact Voltage AC Max: 240V
- Contact Voltage DC Max: 30V
- DC Coil Power: 220mW
- External Length / Height: 15.3mm
- Mounting Type: PCB
- No. of Poles: 1
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Time: 15ms
- Release Time: 5ms
- Series: G6RN
- Switch Current Max: 8A
- Switching Current Max: 8A
- Switching Power Max: 2000VA
- Weight: 9g
Produktfiler
1 x skifte relæ 5VDC 8A 114R P3,2
119-488
/ G6RN1-5
20 stk.
på lager
Bestil nu for afsendelse i morgen
Ved bestilling nu, får vi dem hjem mandag d. 9/11
Specifikationer
- Relæ kontakt SPDT
- Mærkestrøm 8 A
- Spolespænding 5 V
- Spolemodstand 114 Ω
- RELAY, PCB, SPCO, 5VDC
- Relay Type: Power
- Coil Voltage VDC Nom: 5V
- Contact Current Max: 8A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- Coil Resistance: 114ohm
- Contact Configuration: SPCO
- Coil Type: DC
- Coil Current: 44mA
- Nom Operating Power: 220mW
- Relay Mounting: PCB
- External Height: 15.3mm
- External Width: 28.8mm
- External Depth: 10.5mm
- SVHC: No SVHC (20-Jun-2011)
- Approval Bodies: CSA and VDE
- Approval Category: UL Recognised
- Coil Operating Lower Percent Limit: 70%
- Coil Operating Upper Percent Limit: 110%
- Contact Configuration: SPCO
- Contact Current AC Max: 8A
- Contact Current DC Max: 5A
- Contact Material: AgNi
- Contact Plating: Gold
- Contact Voltage AC Max: 240V
- Contact Voltage DC Max: 30V
- DC Coil Power: 220mW
- External Length / Height: 15.3mm
- Mounting Type: PCB
- No. of Poles: 1
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Time: 15ms
- Release Time: 5ms
- Series: G6RN
- Switch Current Max: 8A
- Switching Current Max: 8A
- Switching Power Max: 2000VA
- Weight: 9g
