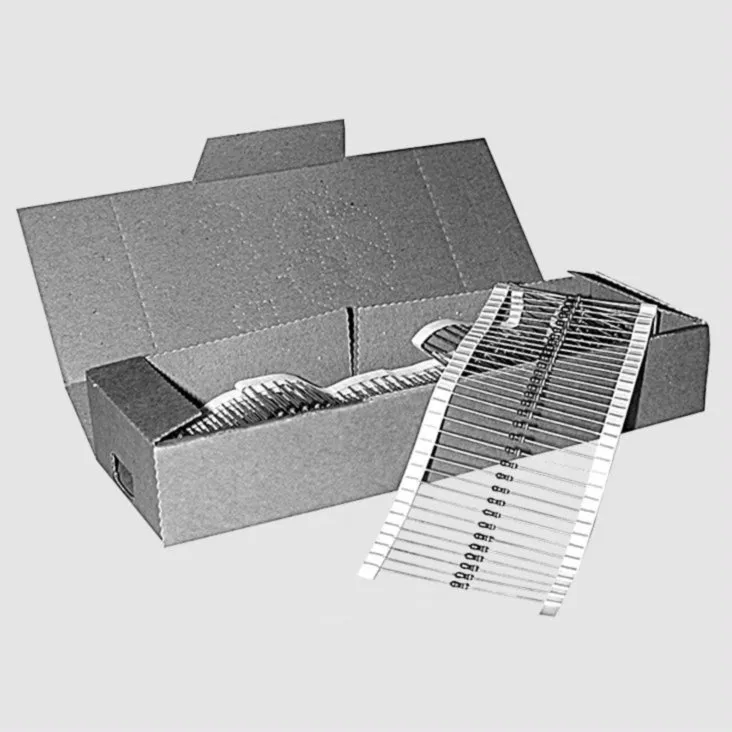

Resistor 0207 0,4W 0,5% 10K Taped
Varenummer:
118-825
Varekode: RMB207K010-0,5
62 stk.
på lager
Bestil nu for afsendelse mandag d. 12/10
Specifikationer
| Produkt | modstand |
|---|---|
| Modstand | 10 kΩ |
| Komponenthus | 0207 |
| Tolerance | ±0.5 % |
| Effekt, max. | 0.4 W |
Technical Specifications
 |
|
| Resistance Tolerance: | ±0,5% |
| Rated Dissipation (70°C): | 0,4W |
| Operating Voltage, Max.: | 350V AC/DC |
| Insulation Voltage (1 Min): | 500V |
| Temperature Coefficient: | 25ppm/K |
| Temperature Range: | -55...+125°C |
| Failure Rate, Max.: | 0,1x10-9/h |

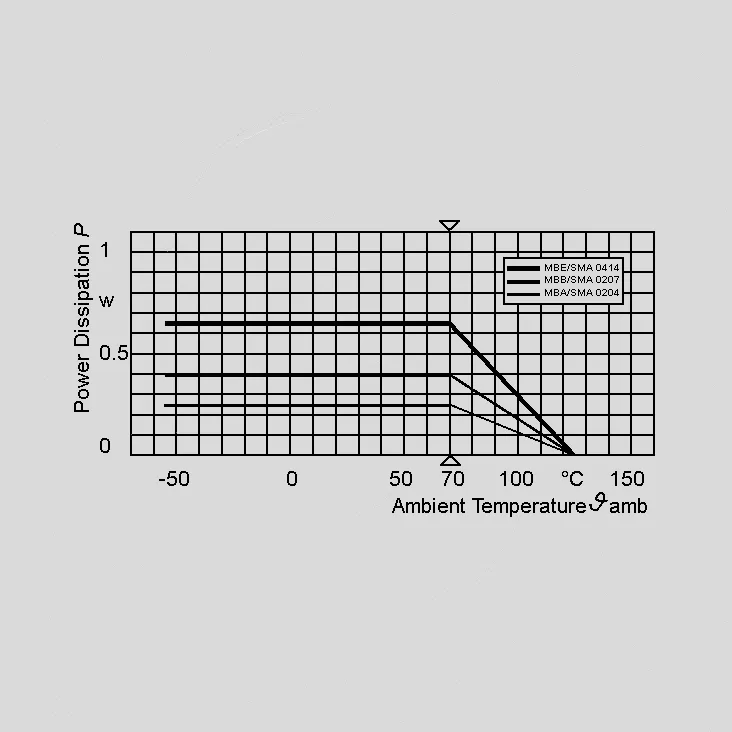

| Derating: | Linear from 70°C to 125°C (0W) |
| Weight: | 0,22g |
|
|
| Norms |
| CECC 40101-806 EN 60115-1 / 140100 |
Resistor 0207 0,4W 0,5% 10K Taped
118-825
/ RMB207K010-0,5
62 stk.
på lager
Bestil nu for afsendelse mandag d. 12/10
Kontakt os for at få oplyst leveringstid
Specifikationer
- Produkt modstand
- Modstand 10 kΩ
- Komponenthus 0207
- Tolerance ±0.5 %
- Effekt, max. 0.4 W
Technical Specifications
|
|
| Resistance Tolerance: | ±0,5% |
| Rated Dissipation (70°C): | 0,4W |
| Operating Voltage, Max.: | 350V AC/DC |
| Insulation Voltage (1 Min): | 500V |
| Temperature Coefficient: | 25ppm/K |
| Temperature Range: | -55...+125°C |
| Failure Rate, Max.: | 0,1x10-9/h |
| Derating: | Linear from 70°C to 125°C (0W) |
| Weight: | 0,22g |
|
|
| Norms |
| CECC 40101-806 EN 60115-1 / 140100 |
