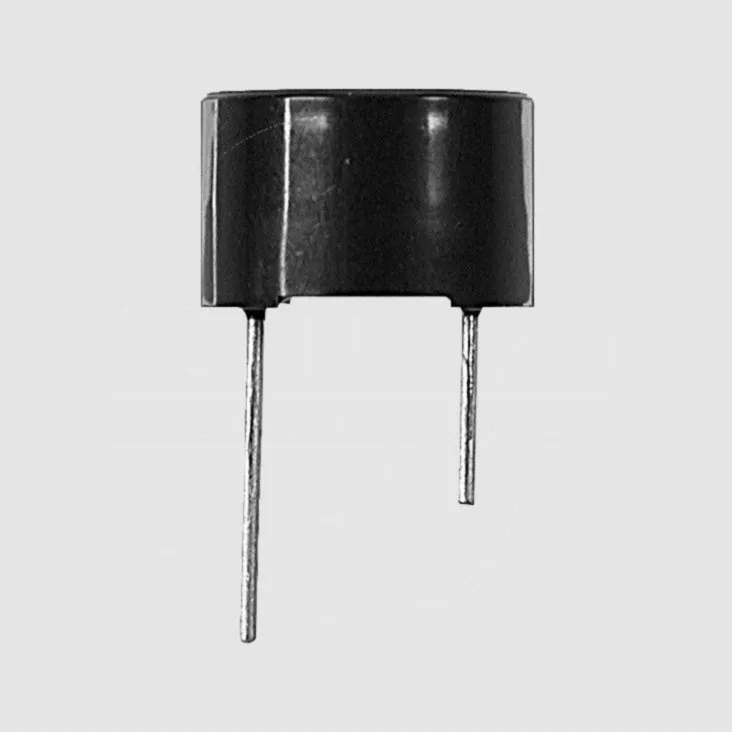

Buzzer 12mm PC 1,5VDC 30mA 85dB
Varenummer:
118-792
Varekode: B26-01
Vægt: 0 g
6 stk.
på lager
Bestil nu for afsendelse mandag d. 19/10
| Features |
| • Extremely high-power miniature transmitter for PCB assembly • Pin connection terminals • A drive circuit is not necessary • Easy to remove adhesive label with polarity data to protect against contamination during soldering |
 |
| Technical Specifications |
|
|||||
| Operating Temperature: | -20...+70°C | Storage Temperature: | -30...+80°C | ||
|
|||||
| Part Nr. | FR | U | SPLmin | IA | � | [kHz] | [V DC] | [dB] | [mA] | PB12N23MP05Q | 2,3�0,4 | 4,5...5,5 | 85 | 50 | PB12N23P03Q | 2,3�0,4 | 2,0...5,0 | 85 | 30 | PB12N23P05Q | 2,3�0,4 | 4,5...5,5 | 85 | 50 | PB12N23P09Q | 2,3�0,4 | 7,0...11 | 85 | 50 | PB12N23P12Q | 2,3�0,4 | 9,0...15 | 85 | 50 | |||||
| FR = Resonant Frequency,U= Operating Voltage,SPLmin = Min. S.P.L., at 5V DC and 10cm Spacing, IA = Current Consumption | |||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.hitpoint.com.tw |
|
Inkl. moms
Kr. 22,50
- v/10 – Kr. 18,75
- v/25 – Kr. 15,00
Buzzer 12mm PC 1,5VDC 30mA 85dB
118-792
/ B26-01
6 stk.
på lager
Bestil nu for afsendelse mandag d. 19/10
Kontakt os for at få oplyst leveringstid
| Features |
| • Extremely high-power miniature transmitter for PCB assembly • Pin connection terminals • A drive circuit is not necessary • Easy to remove adhesive label with polarity data to protect against contamination during soldering |
|
| Technical Specifications |
|
|||||
| Operating Temperature: | -20...+70°C | Storage Temperature: | -30...+80°C | ||
|
|||||
| Part Nr. | FR | U | SPLmin | IA | � | [kHz] | [V DC] | [dB] | [mA] | PB12N23MP05Q | 2,3�0,4 | 4,5...5,5 | 85 | 50 | PB12N23P03Q | 2,3�0,4 | 2,0...5,0 | 85 | 30 | PB12N23P05Q | 2,3�0,4 | 4,5...5,5 | 85 | 50 | PB12N23P09Q | 2,3�0,4 | 7,0...11 | 85 | 50 | PB12N23P12Q | 2,3�0,4 | 9,0...15 | 85 | 50 | |||||
| FR = Resonant Frequency,U= Operating Voltage,SPLmin = Min. S.P.L., at 5V DC and 10cm Spacing, IA = Current Consumption | |||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
|
| http://www.hitpoint.com.tw |
|
