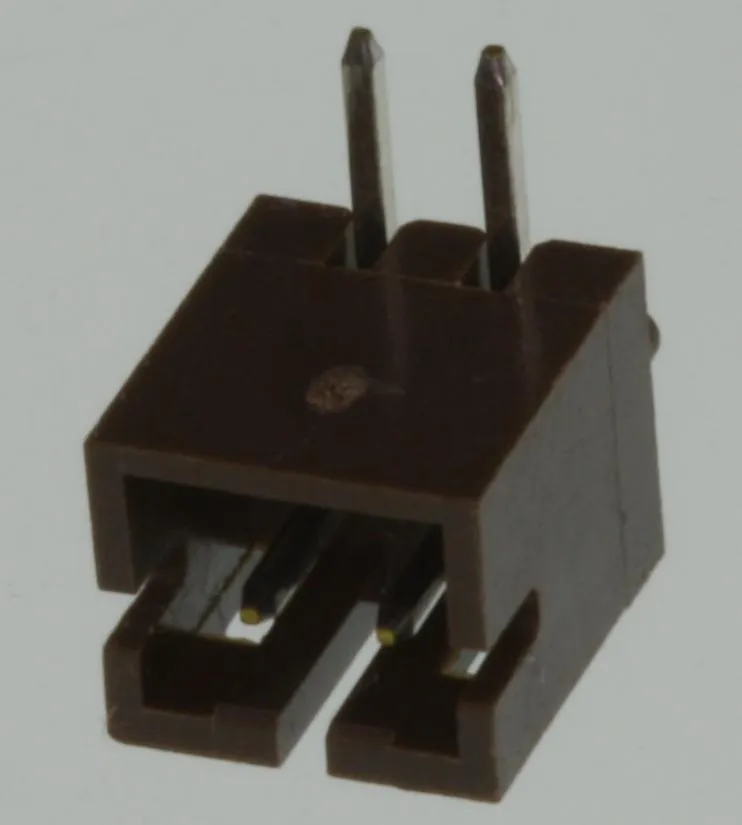

HEADER, TOP ENTRY, SMD, 2WAY
Varenummer:
118-630
Varekode: B2B-PH-SM
Vægt: 1 g
74 stk.
på lager
Bestil nu for afsendelse i morgen
- HEADER, TOP ENTRY, SMD, 2WAY
- Connector Type: Wire to Board
- Series: PH
- Contact Termination: Surface Mount Vertical
- Gender: Header
- No. of Contacts: 2
- No. of Rows: 1
- Pitch Spacing: 2mm
- Contact Plating: Tin
- Contact Material: Brass
- SVHC: No SVHC (20-Jun-2011)
- Approval Bodies: UL, CSA, TUV
- Colour: White
- Connector Type: Wire-to-Board
- Contact Material: Phosphor Bronze
- Contact Plating: Tin
- Contact Resistance Max: 10mohm
- Current Rating: 2A
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Lead Spacing: 2mm
- No. of Poles: 2
- No. of Ways: 2
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Termination Method: Crimp
- Voltage Rating V AC: 100V
- Working Voltage: 100V
- 517560
Inkl. moms
Kr. 7,50
- v/10 – Kr. 3,75
- v/120 – Kr. 2,50
HEADER, TOP ENTRY, SMD, 2WAY
118-630
/ B2B-PH-SM
74 stk.
på lager
Bestil nu for afsendelse i morgen
Kontakt os for at få oplyst leveringstid
- HEADER, TOP ENTRY, SMD, 2WAY
- Connector Type: Wire to Board
- Series: PH
- Contact Termination: Surface Mount Vertical
- Gender: Header
- No. of Contacts: 2
- No. of Rows: 1
- Pitch Spacing: 2mm
- Contact Plating: Tin
- Contact Material: Brass
- SVHC: No SVHC (20-Jun-2011)
- Approval Bodies: UL, CSA, TUV
- Colour: White
- Connector Type: Wire-to-Board
- Contact Material: Phosphor Bronze
- Contact Plating: Tin
- Contact Resistance Max: 10mohm
- Current Rating: 2A
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Lead Spacing: 2mm
- No. of Poles: 2
- No. of Ways: 2
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Termination Method: Crimp
- Voltage Rating V AC: 100V
- Working Voltage: 100V
- 517560
