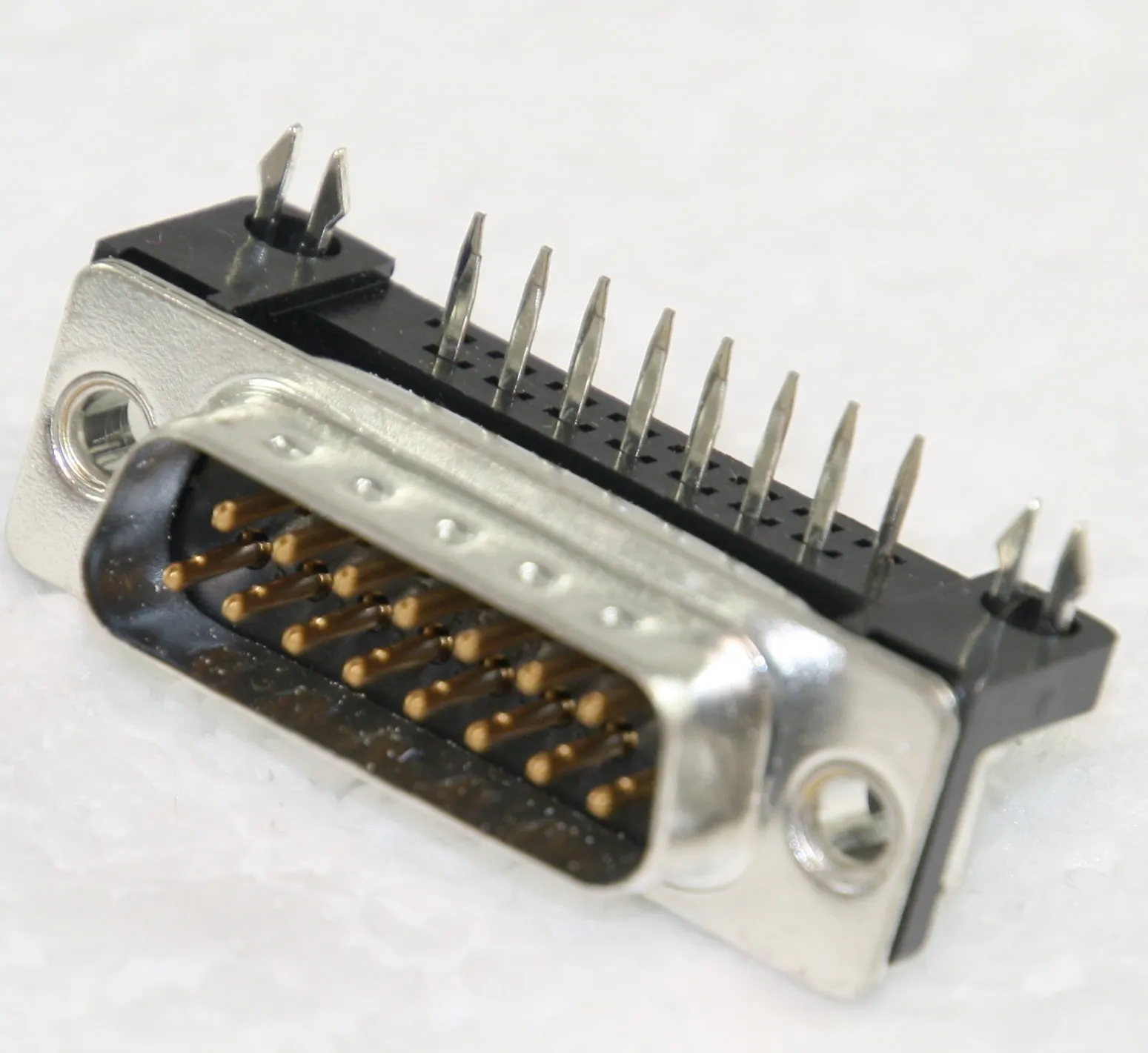

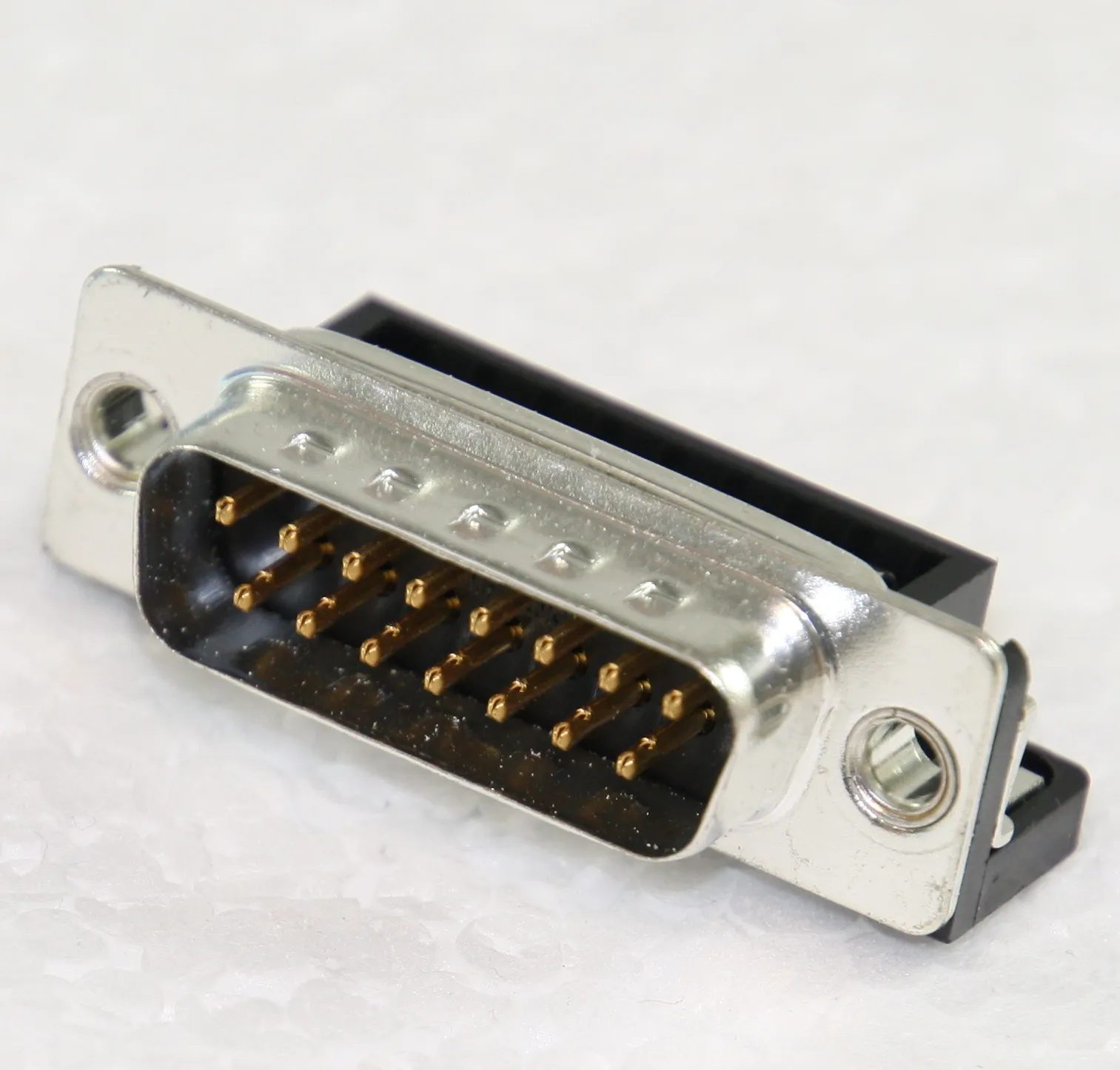

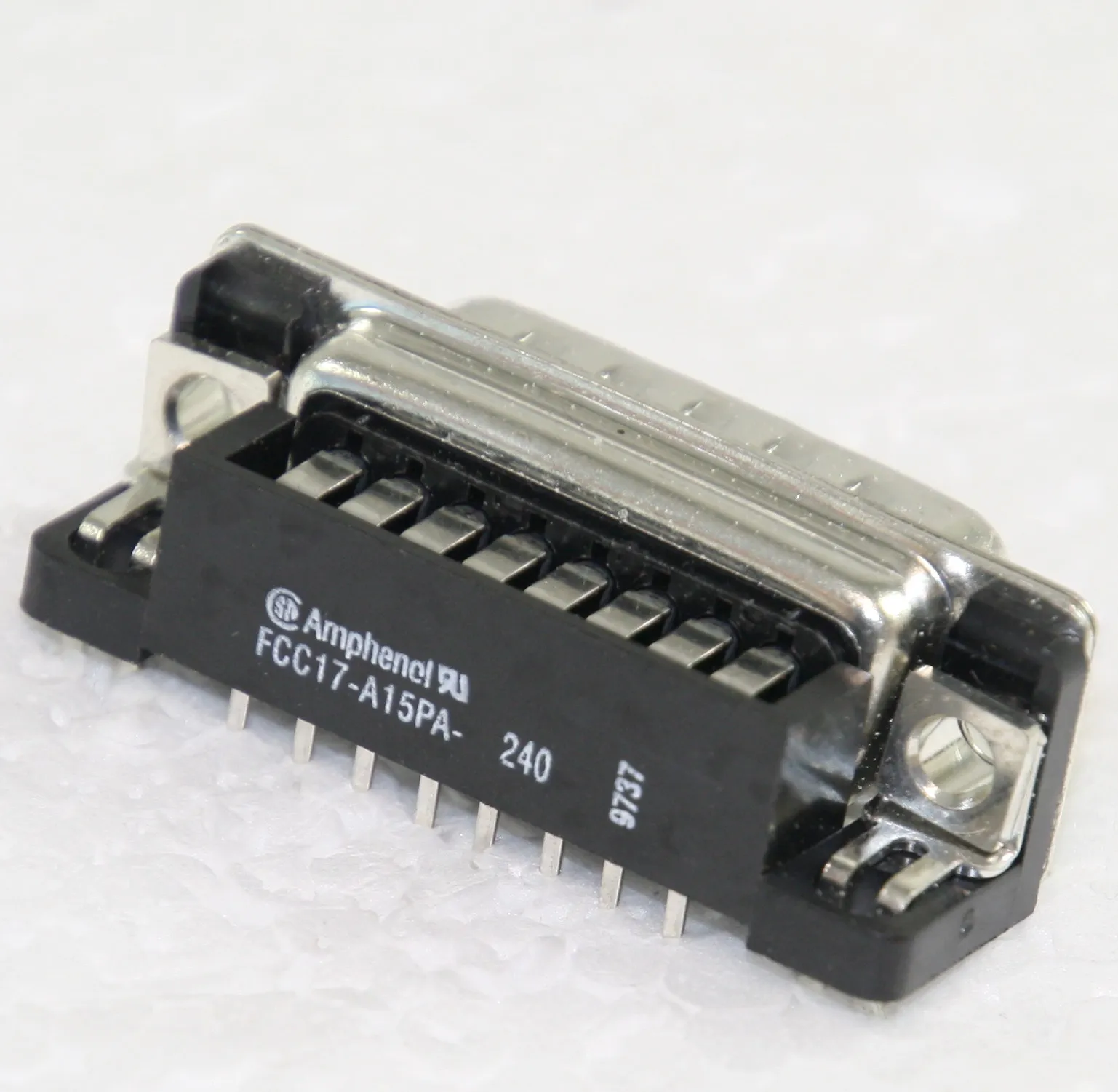

Filter-plug 15-Pole Male print
Varenummer:
117-963
Varekode: FCC17-A15PA240
Vægt: 15 g
49 stk.
på lager
| Technical/Catalog Information | FCC17-A15PA-240 |
| Vendor | Amphenol Commercial Products |
| Category | Connectors, Interconnects |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Features | Board Lock, Filter, Grounding Indents |
| Flange Feature | Housing/Shell (4-40) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Termination | Solder |
| Contact Finish Thickness | 15µin (0.38µm) |
| Connector Style | D-Sub |
| Shell Size, Connector Layout | 2 (DA, A) |
| Contact Type | Signal |
| Shell Material, Finish | Steel, Tin Plated |
| Operating Temperature | -40°C ~ 85°C |
| Rating | 820pF |
| Current Rating | 2A |
| Housing Material | Thermoplastic |
| Color | Black |
| Ingress Protection | - |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | FCC17 A15PA 240 FCC17A15PA240 |
FCE17-A15PA240
