Trimmer Top Adjust P5/2,5 200R

Name: Trimmer Top Adjust P5/2,5 200R
SKU: 117960
Price: 17.66 DKK
Availability: InStock

Varenummer: 117-960

Varekode: T7YAR200R

Vægt: 0 g

Produktet udgår - Sælges så længe lager haves!

4 stk. på lager

Vis lignende produkter i kategorien "T7YA"

Features

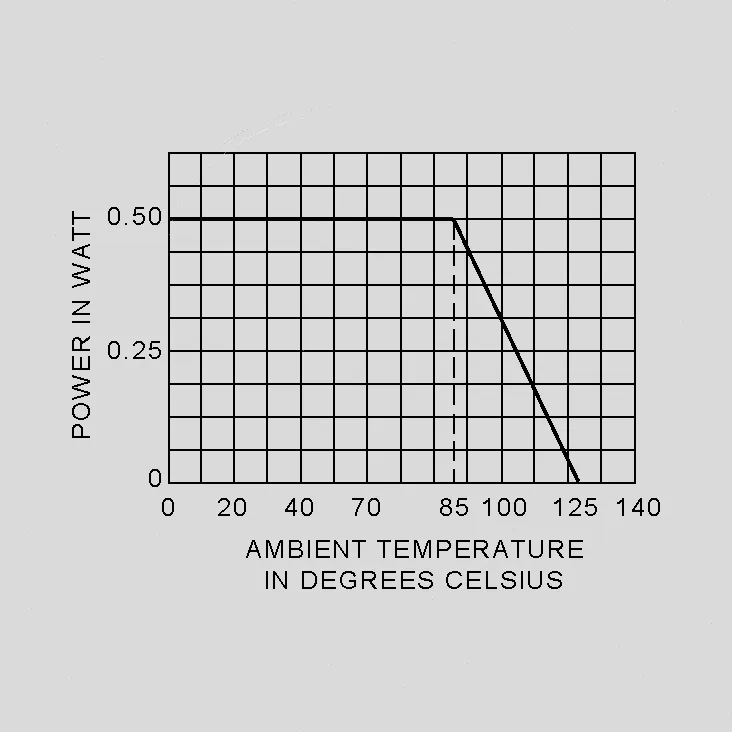

• 0,5W at 85°C
• High stability
• Low temperature coefficient
• Easy to read scale
• only 7mm (0.275”) in diameter
• sealed plastic case

Electrical Specifications



Taper:	Linear
Power Rating (T_U = 70°C):	0,5W
Operating Voltage, Max.:	250V DC
Resistance Tolerance:	±20%
Contact Resistance, Min.:	3W or 3%xRn
Temperature Range:	-55...+125°C

Mechanical Specifications



Rotation
Mechanical:	300° ±5°
Electrical:	270° ±15°
Stop Torque:	4Ncm
Operating Force:	2Ncm

Dimensions



Width x Height:	7x6mm
Pitch:	5x2,5mm

Norms

CECC 41100

Labelling

Resistance value in accordance with EIA-Code, date code

Manufacturer

Vishay/Sfernice

http://www.vishay.com

Inkl. moms

Kr. 17,66

Trimmer Top Adjust P5/2,5 200R

117-960

/ T7YAR200R

Produktet udgår - Sælges så længe lager haves!

4 stk. på lager
