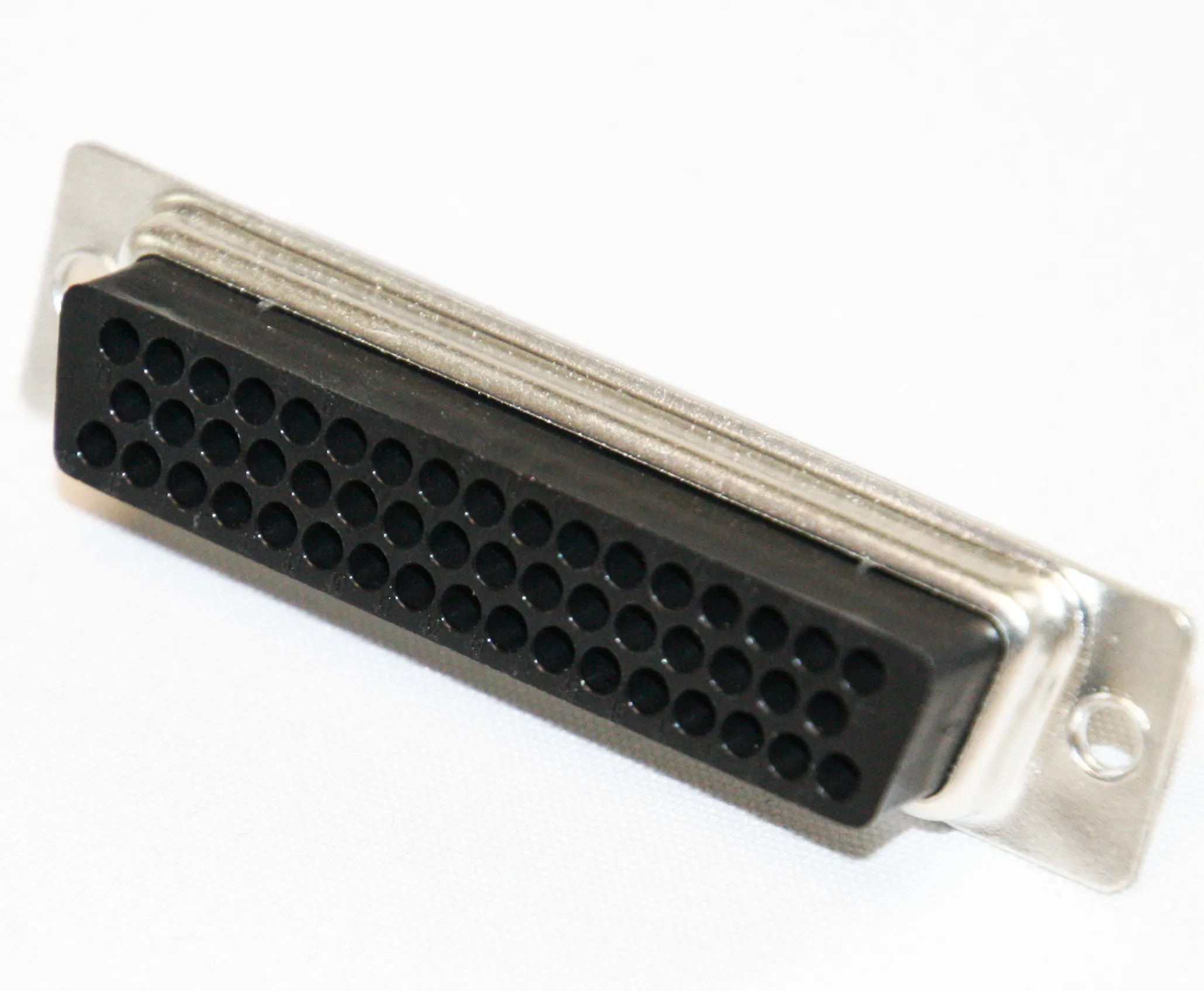

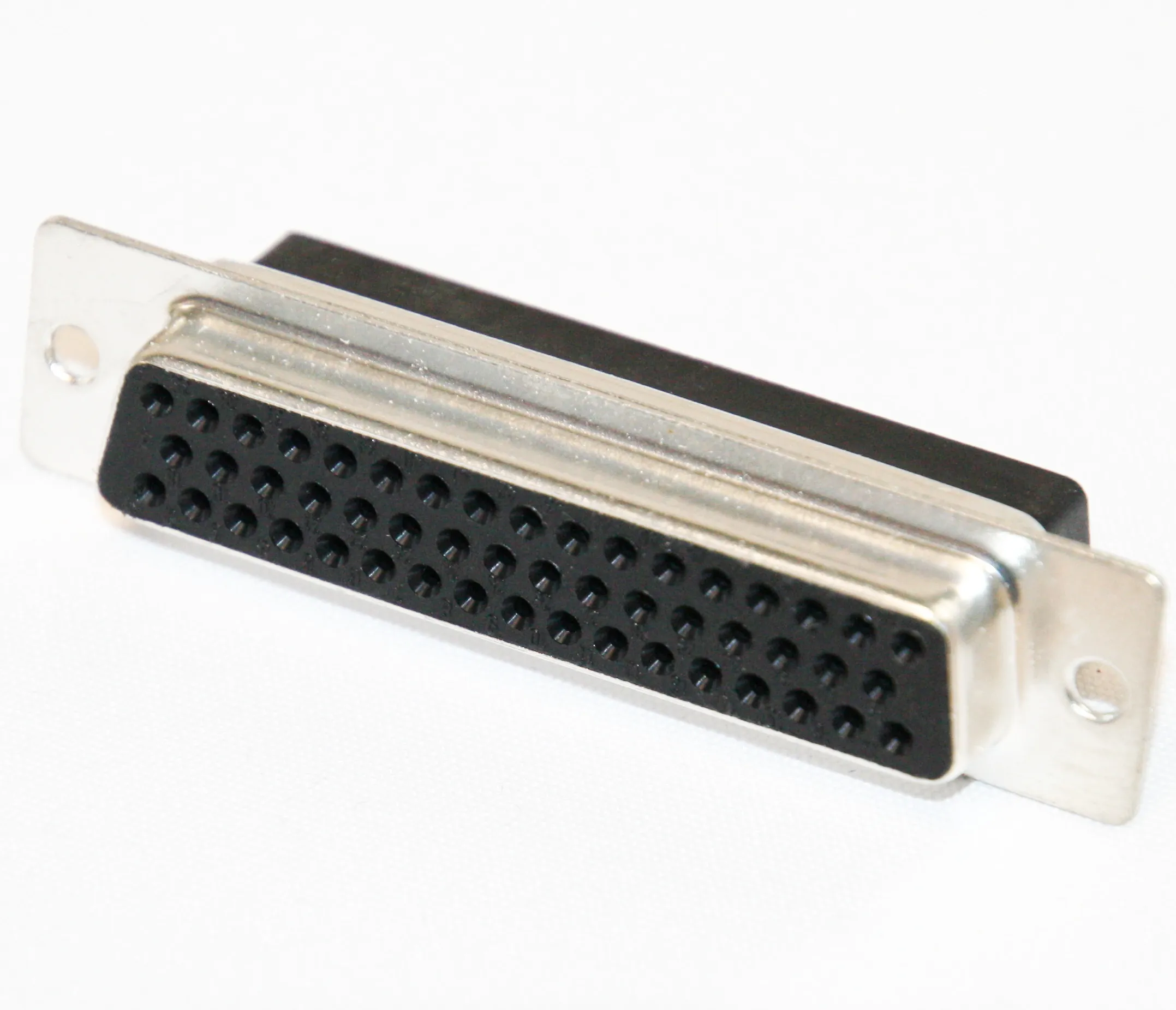

D-Sub Socket 50-Pole Crimp (hus uden ben)
Varenummer:
117-866
Varekode: BL50CR
Vægt: 14 g
360 stk.
på lager
Specifikationer
| Stik-familie | D-Sub |
|---|---|
| Antal poler | 50 |
Gruppe: F4618
GSN D-Sub Sockets and Crimp Contacts
Series: BL_CR
Straight
Contacts: Stamped
| Technical Specifications |
 |
|
| Insulating Shell: | PBT, UL94V-0 |
| Contacts: | Brass |
| Housing Frame: | Steel, Tin-plated |
| Operating Current: | 3A |
| Dielectric Strength: | 250V AC/DC |
| Insulation Resistance, Min.: | 5000MW |
| Contact Resistance, Max.: | 30mW |
| Temperature Range: | -40...+85°C |
|
|
| Dimensions |
| Part Nr. | Poles | A | B | C | D | E |
| [mm] | [mm] | [mm] | [mm] | [mm] | ||
| BL09CR | 9 | 16,33 | 24,99 | 30,81 | 7,90 | 12,50 |
| BL15CR | 15 | 24,66 | 33,32 | 39,14 | 7,90 | 12,50 |
| BL25CR | 25 | 38,38 | 47,04 | 53,04 | 7,90 | 12,50 |
| BL37CR | 37 | 54,84 | 63,50 | 69,32 | 7,90 | 12,50 |
| BL50CR | 50 | 52,43 | 61,11 | 66,93 | 10,74 | 15,37 |
|
||||||
| BL01CR |
| Crimp Socket Contacts for für BL_CR |
|
| Technical Specifications |
|
|
| Contacts: | Brass |
| Contact Surface: | Selective Flash Gold |
| Operating Current: | 3A |
| Dielectric Strength: | 250V AC/DC |
| Insulation Resistance, Min.: | 5000MW |
| Contact Resistance, Max.: | 30mW |
| Temperature Range: | -40...+85°C |
|
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces BL01CR: 1 PKU = 100 pieces |
|
| Manufacturer |
 |
| http://www.gsn.cn.com |
