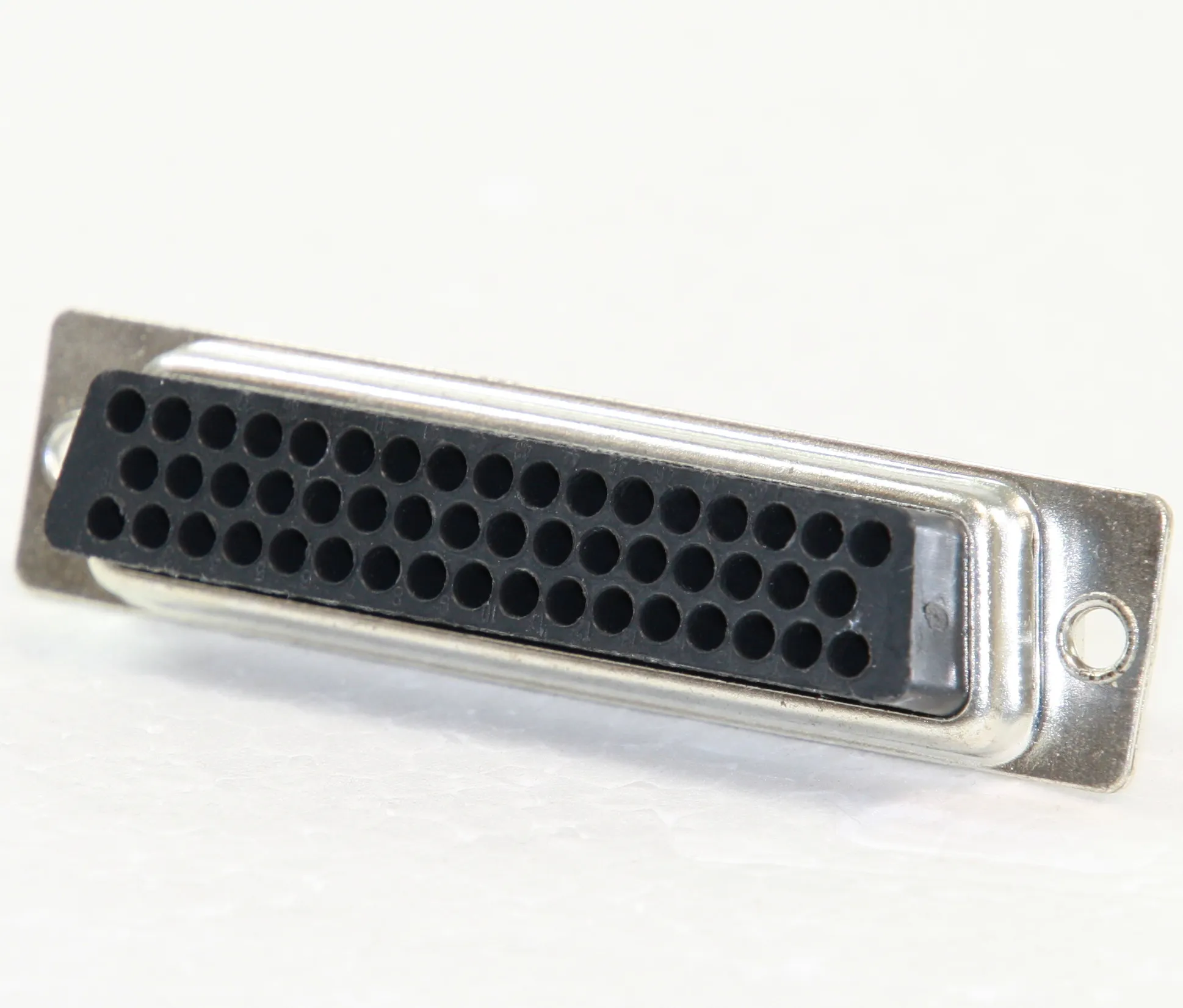

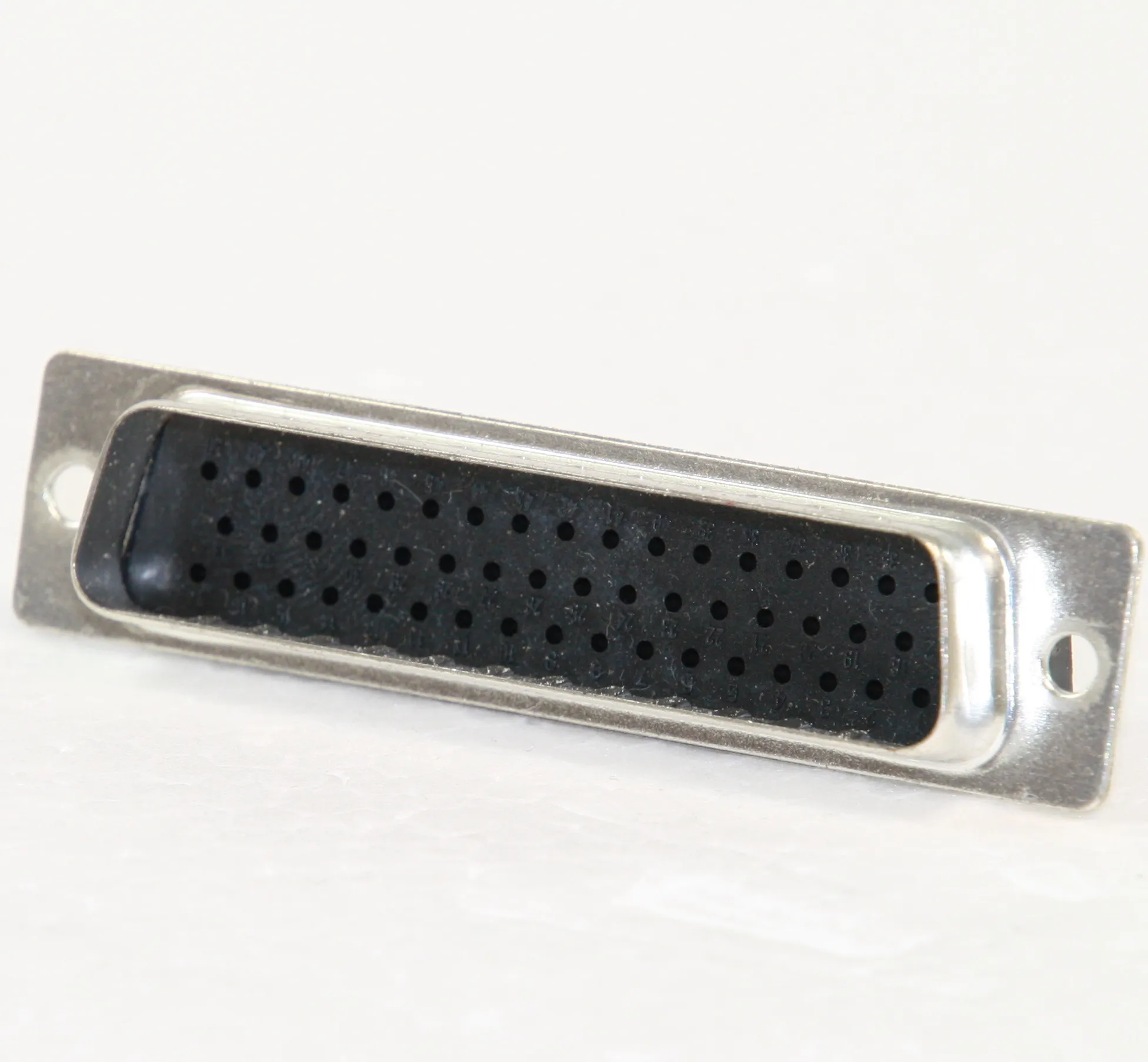

D-Sub Plug 50-Pole Crimp (hus UDEN ben)
Varenummer:
117-860
Varekode: SL50CR
Vægt: 12 g
393 stk.
på lager
Specifikationer
| Stik-familie | D-Sub |
|---|---|
| Antal poler | 50 |
Technical Specifications
 |
|
| Insulating Shell: | PBT, UL94V-0 |
| Contacts: | Brass |
| Housing Frame: | Steel, Tin-plated |
| Operating Current: | 3A |
| Dielectric Strength: | 250V AC/DC |
| Insulation Resistance, Min.: | 5000MW |
| Contact Resistance, Max.: | 30mW |
| Temperature Range: | -40...+85°C |
|
|
| Dimensions |
| Part Nr. | Poles | A | B | C | D | E |
| [mm] | [mm] | [mm] | [mm] | [mm] | ||
| SL09CR | 9 | 16,92 | 24,99 | 30,81 | 8,38 | 12,50 |
| SL15CR | 15 | 25,25 | 33,32 | 39,14 | 8,38 | 12,50 |
| SL25CR | 25 | 38,96 | 47,04 | 53,04 | 8,38 | 12,50 |
| SL37CR | 37 | 55,42 | 63,50 | 69,32 | 8,38 | 12,50 |
| SL50CR | 50 | 52,81 | 61,11 | 66,93 | 11,07 | 15,37 |
Produktfiler
