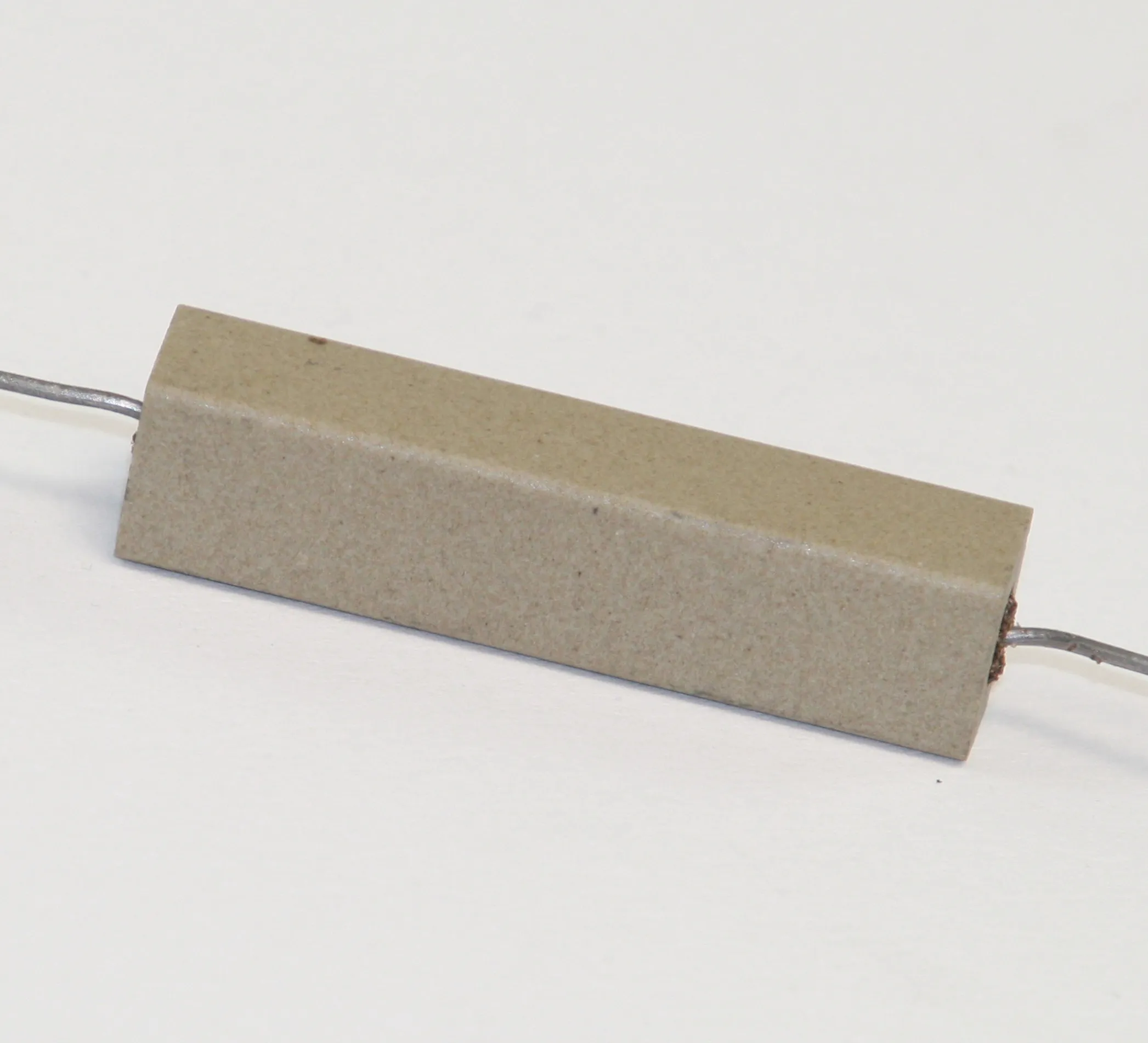

Resistor 11W 10% 3K3
Varenummer:
117-600
Varekode: KH216-8-3K3
Vægt: 12 g
80 stk.
på lager
Bestil nu for afsendelse mandag d. 28/9
Yderligere 180 stk. kan skaffes fredag d. 9/10
Specifikationer
| Modstand | 3.3 kΩ |
|---|---|

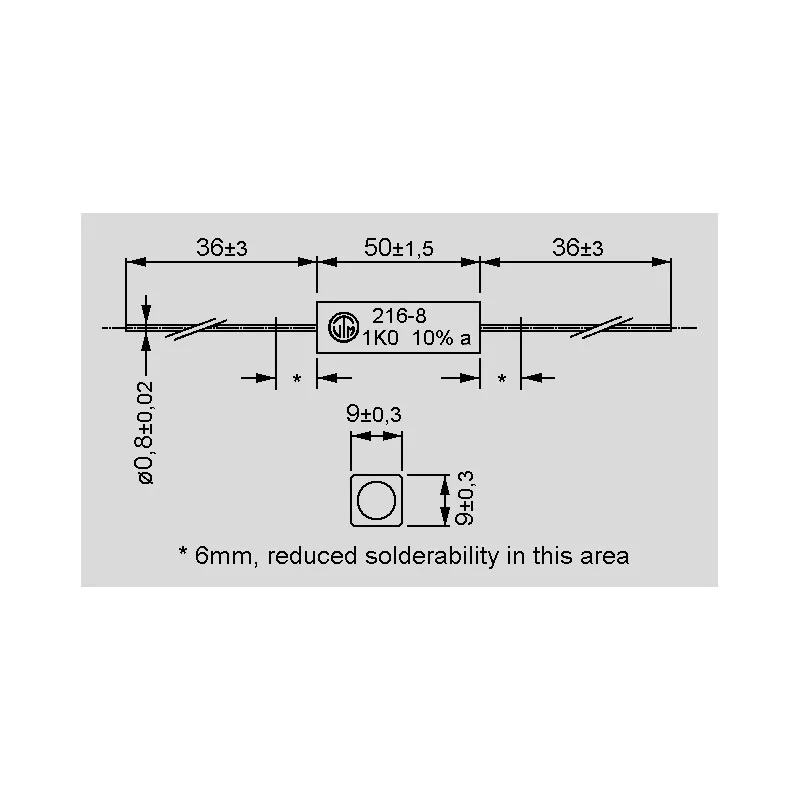

| Komponenthus | 216-8 |
| Effekt, max. | 11 W |
| Tolerance | ±10 % |
Features
| • Wound on a glass fiber core with special direct terminals, temperature resistant • Wound resistor embedded in a cement sealed ceramic tube |
 |
| Technical Specifications |
|
|
| Resistance Tolerance: | ±10% |
| Power Rating (70°C): | 11W |
| Operating Voltage, Max.: | (PxR)1/2 |
| Thermal Resistance: | 25K/W |
| Insulation Resistance, MIn.: | 104 MOhm |
| Insulation Voltage (1Min.): | 2000Veff |
| Temperature Coefficient | |
| 0,15R...1R: | +400 ±50ppm/K |
| 1R5...1K3: | 0 ±40ppm/K |
| 1K5...47K: | 0 ±10ppm/K |
| Temperature Range: | -55...+350°C |
| Climatic Category: | 55/200/21 |
| Failure Rate (Value Dependent): | Approx. 100x10-9 /h |
| Terminal Tensile Strength: | 50N |
| Solderability:1) | 2,5s |
| Derating: | Linear 70°C to 350°C (0W) |
| 1) Solderglobule Test, IEC 60068-2-20-T | |
|
|
| Norms |
| Applicable: CECC 40202-001, -005 |
|
| Labelling |
| Manufacturer logo, series, resistance value, tolerance |
|
