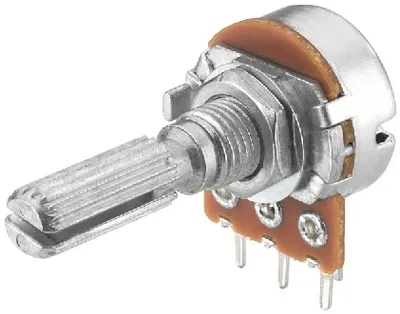

Potentiometer LOGARITMISK Mono 1KOhm
Varenummer:
116-565
Varekode: VRA-100M1
Vægt: 9 g
2 stk.
på lager
| Resistance | 1kΩ |
| Characteristic | log. |
| Power rating | 0.1W |
| Insulating resistance | |
| Test voltage | 500V˜/1 min. |
| Tracking error | ±3dB, 0/-40dB |
| Rotation angle | 300° ±5° |
| Clicks | - |
Potentiometers, mono
With slotted 6mm shaft, for 18-tooth push-on buttons, with nut fixing and soldering connections for pc boards.
Inkl. moms
Kr. 34,95
Produktfiler
Potentiometer LOGARITMISK Mono 1KOhm
116-565
/ VRA-100M1
2 stk.
på lager
| Resistance | 1kΩ |
| Characteristic | log. |
| Power rating | 0.1W |
| Insulating resistance | |
| Test voltage | 500V˜/1 min. |
| Tracking error | ±3dB, 0/-40dB |
| Rotation angle | 300° ±5° |
| Clicks | - |
Potentiometers, mono
With slotted 6mm shaft, for 18-tooth push-on buttons, with nut fixing and soldering connections for pc boards.
