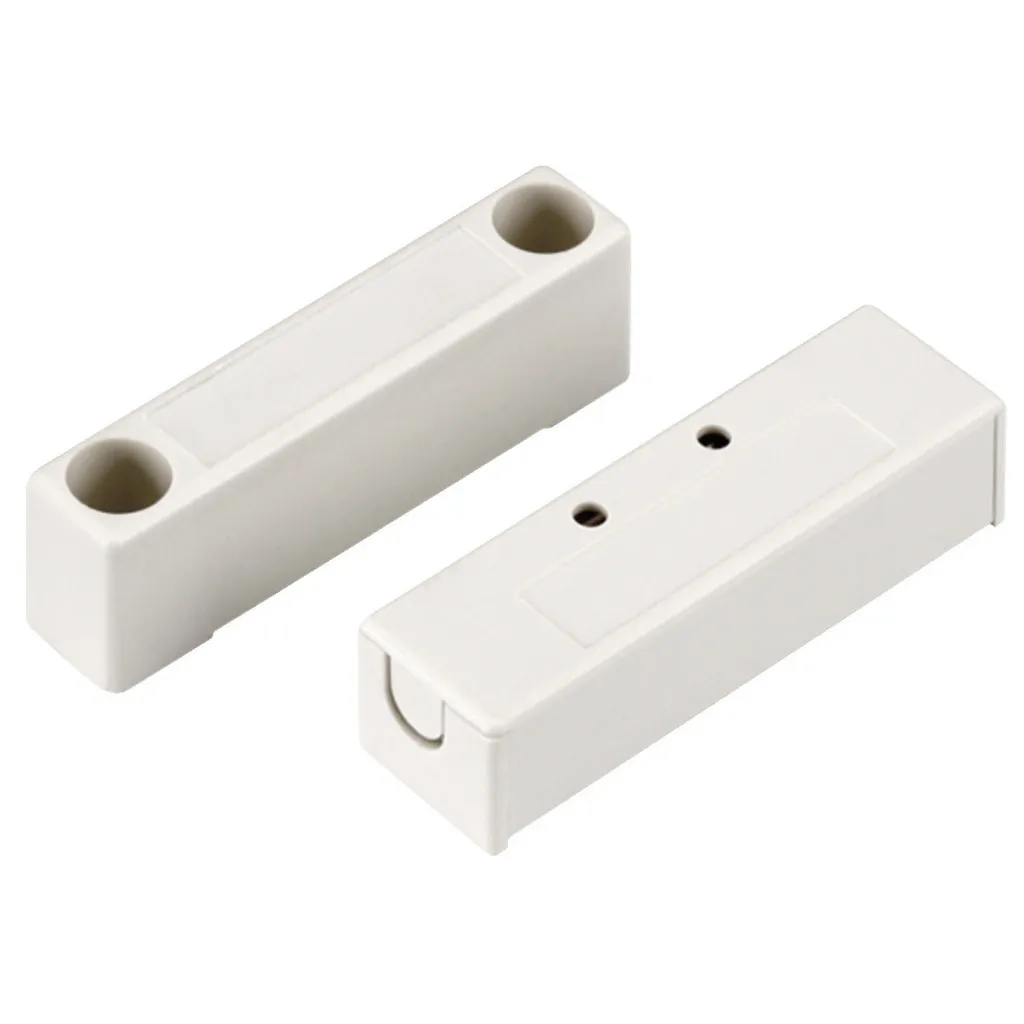

Magnetkontakt NO slutte/hvid
Reed contacts, to be used in alarm systems for monitoring and securing doors and windows.
- Brown (BN) or white (WS) housing
- Surfacing mounting, pulsed operation
- Designed as NC contact/opening detector
- Contact rating: DC current 30 V/0.1 A max.
- Contact: 50 x 12 x 14 mm
- Magnet: 50 x 14.5 x 10 mm
- Type of mounting: for parallel mounting
- Magnetkontakten er NO, når der ikke er nogen magnet i nærheden.
- Med skrueterminaler
The specifications stated are maximum values. Even a short-term overload may lead to damage of the contact! The reed contact is suitable for use with DC voltage only!
Når magnet/kontakt er samlet er der gennemgang
Når magnet/kontakt skilles/tages fra hinanden er der ingen gennemgang
| TEKNISKE DATA: | |
| VdS (German assn. f. property insurers) no. | - |
| Detection range | - |
| Detection angle | - |
| Quiescent current | - |
| Power supply | - |
| Alarm switches | NC, DC 30 V/0.1 A |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 50 x 12 x 14 mm (contact),
50 x 14.5 x 10 mm (magnet) |
| Weight | 23 g |
- v/10 – Kr. 45,00
- v/30 – Kr. 41,25
