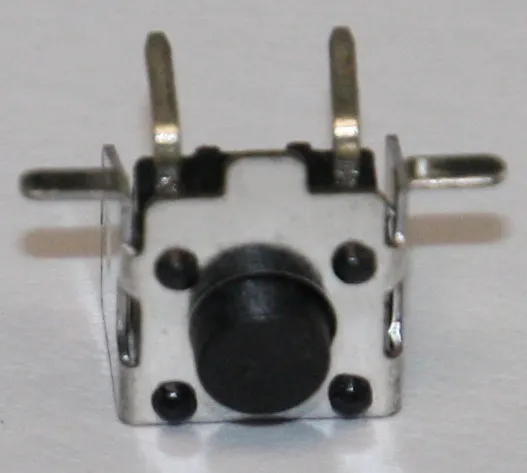

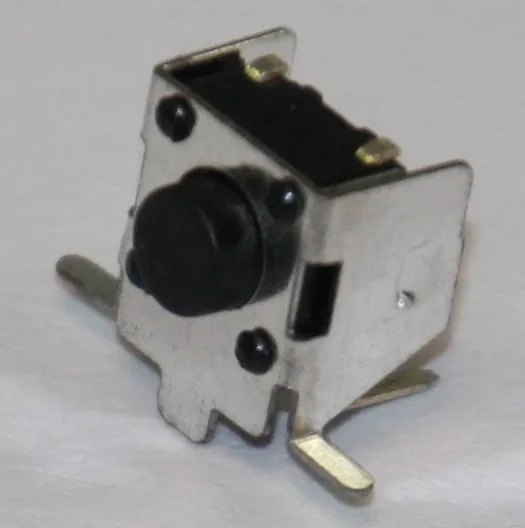

Tact Switch PC Horizontal 4,3mm 1N
Varenummer:
115-405
Varekode: IT1102UA-2
2353 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Vis lignende produkter i kategorien "6x6mm"
• Single pole input key with an SPST-NO contact
• Prevents formed terminal pins (snap-in) falling out
• For PCB assembly
• Particularly small dimensions
• Data and signal technology, measuring and controlling, membrane keyboards
|
 |
|
|
|
Switching Voltage, Max.:
|
12V DC
|
Switching Current, Max.:
|
50mA
|
Test Voltage, 1min.:
|
250V AC
|
Operating Life with Switching Capacity:
|
200,000 Operations
|
Contact Resistance, Max.:
|
100mW
|
Insulation Resistance, Min.:
|
100MW/500V DC
|
Type of Switching:
|
1 NO Contact
|
Operating Force:
|
1N
|
Operating Path:
|
0,25mm +0,2, -0,1
|
Insulation Material:
|
Thermoplastic Nylon, UL94V-0
|
Contact Surface:
|
Phosphor Bronze Silver-plated
|
Solder Temperature and Duration, Max.:
|
260°C for 5s
|
Operating Temperature:
|
-25...+70°C
|
|
|
|
|
Part Nr.
|
H
|
|
| |
[mm]
|
|
| DTS61K |
4,3 ±0,2
|
|
| DTS62K |
5,0 ±0,2
|
|
| DTS63K |
7,0 ±0,2
|
|
| DTS65K |
9,5 ±0,2
|
|
| DTS644K |
7,3 ±0,2
|
|
| DTSA62K |
see drawing
|
|
|
|
