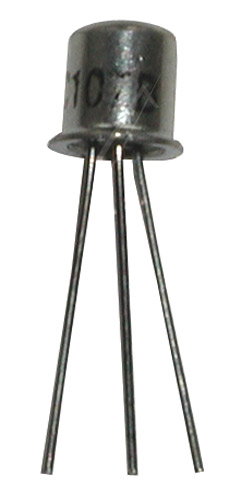

PNP 45V 0,2A 1W TO18

PNP 45V 0,2A 1W TO18

Varenummer: 115-380

Varekode: BCY79-9

16 stk. på lager

Bestil nu for afsendelse i morgen

Vis lignende produkter i kategorien "B.."

BCY79IX

Type Designator: BCY79-9

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 1 W

Maximum Collector-Base Voltage |Vcb|: 45 V

Maximum Collector-Emitter Voltage |Vce|: 45 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.2 A

Max. Operating Junction Temperature (Tj): 200 °C

Transition Frequency (ft): 180 MHz

Collector Capacitance (Cc): 7 pF

Forward Current Transfer Ratio (hFE), MIN: 250

Noise Figure, dB: -

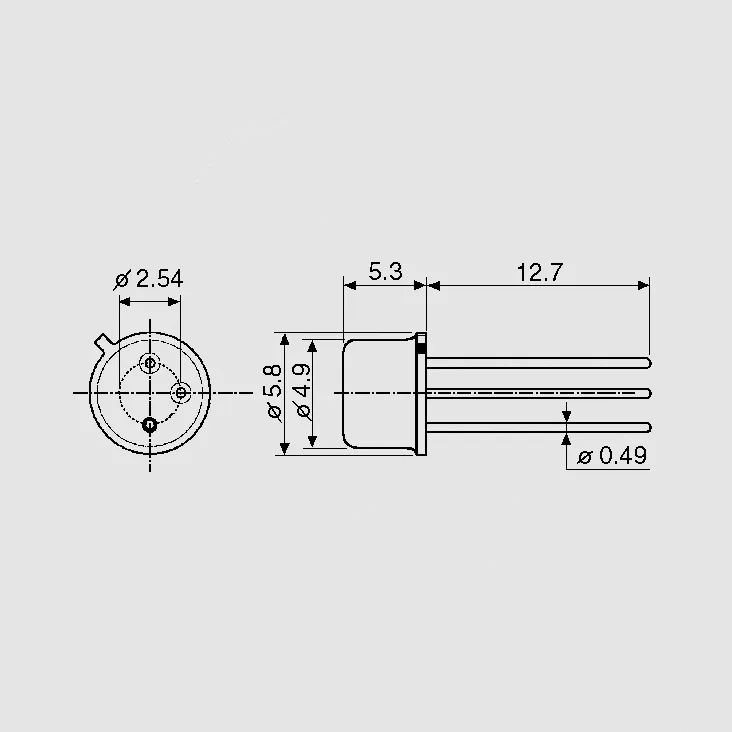

Package: TO18

Inkl. moms

Kr. 25,00

v/10 – Kr. 22,50

PNP 45V 0,2A 1W TO18

115-380

/ BCY79-9

16 stk. på lager

Bestil nu for afsendelse i morgen

Kontakt os for at få oplyst leveringstid

BCY79IX

Type Designator: BCY79-9

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 1 W

Maximum Collector-Base Voltage |Vcb|: 45 V

Maximum Collector-Emitter Voltage |Vce|: 45 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.2 A

Max. Operating Junction Temperature (Tj): 200 °C

Transition Frequency (ft): 180 MHz

Collector Capacitance (Cc): 7 pF

Forward Current Transfer Ratio (hFE), MIN: 250

Noise Figure, dB: -

Package: TO18

Kr. 25,00

v/10 – Kr. 22,50
