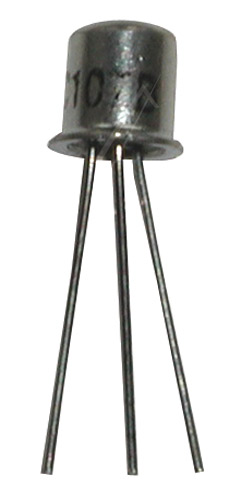

PNP 45V 0,2A 1W TO18
BCY79VIII
Type Designator: BCY79-8
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.345 W
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.2 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 180 MHz
Collector Capacitance (Cc): 7 pF
Forward Current Transfer Ratio (hFE), MIN: 100
Noise Figure, dB: -

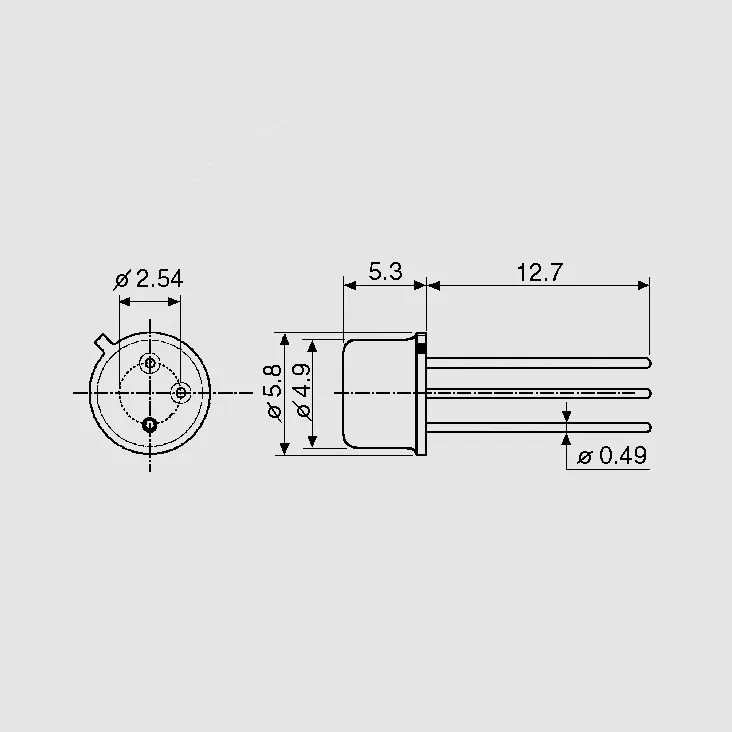

Package: TO-18
