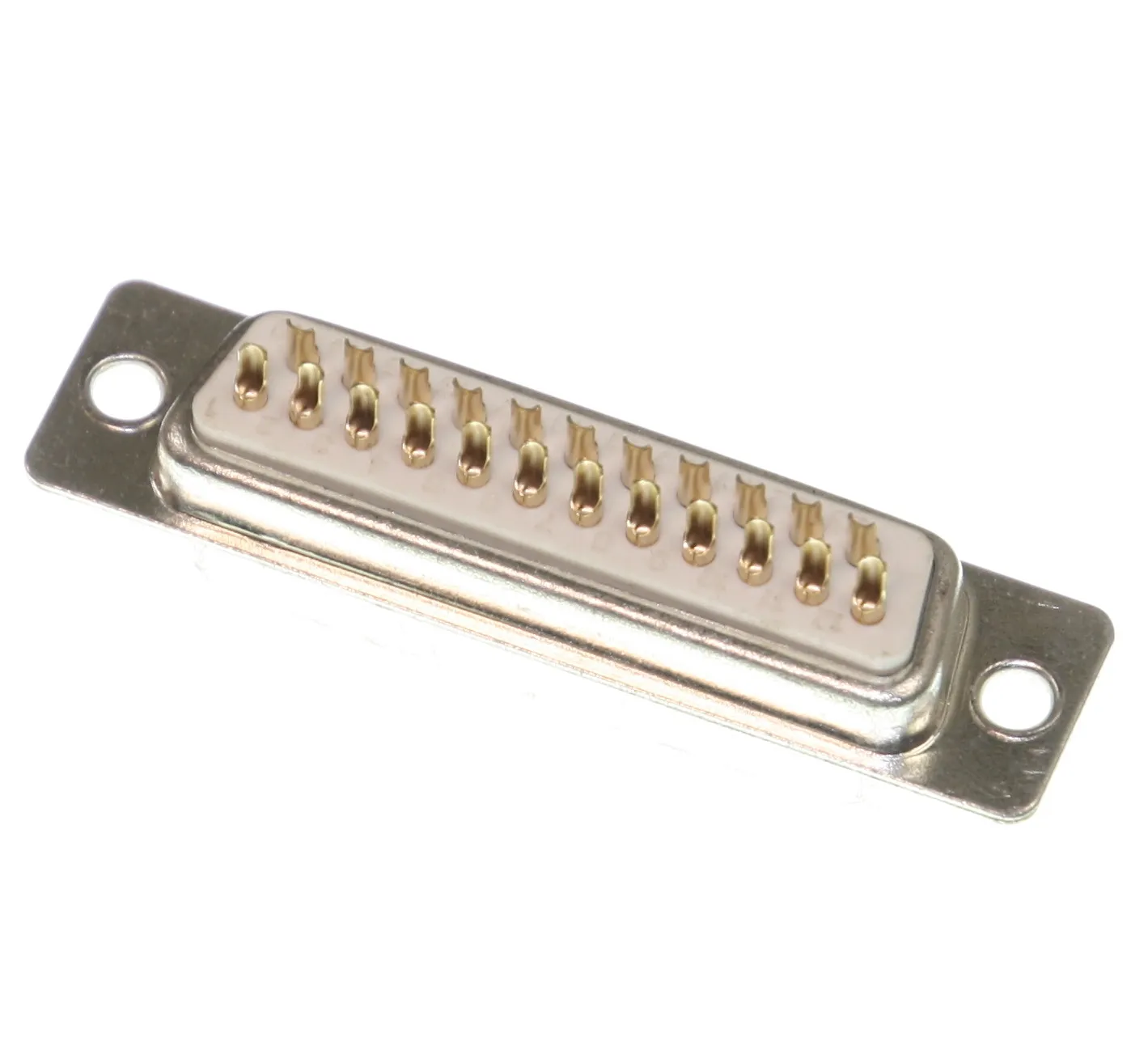

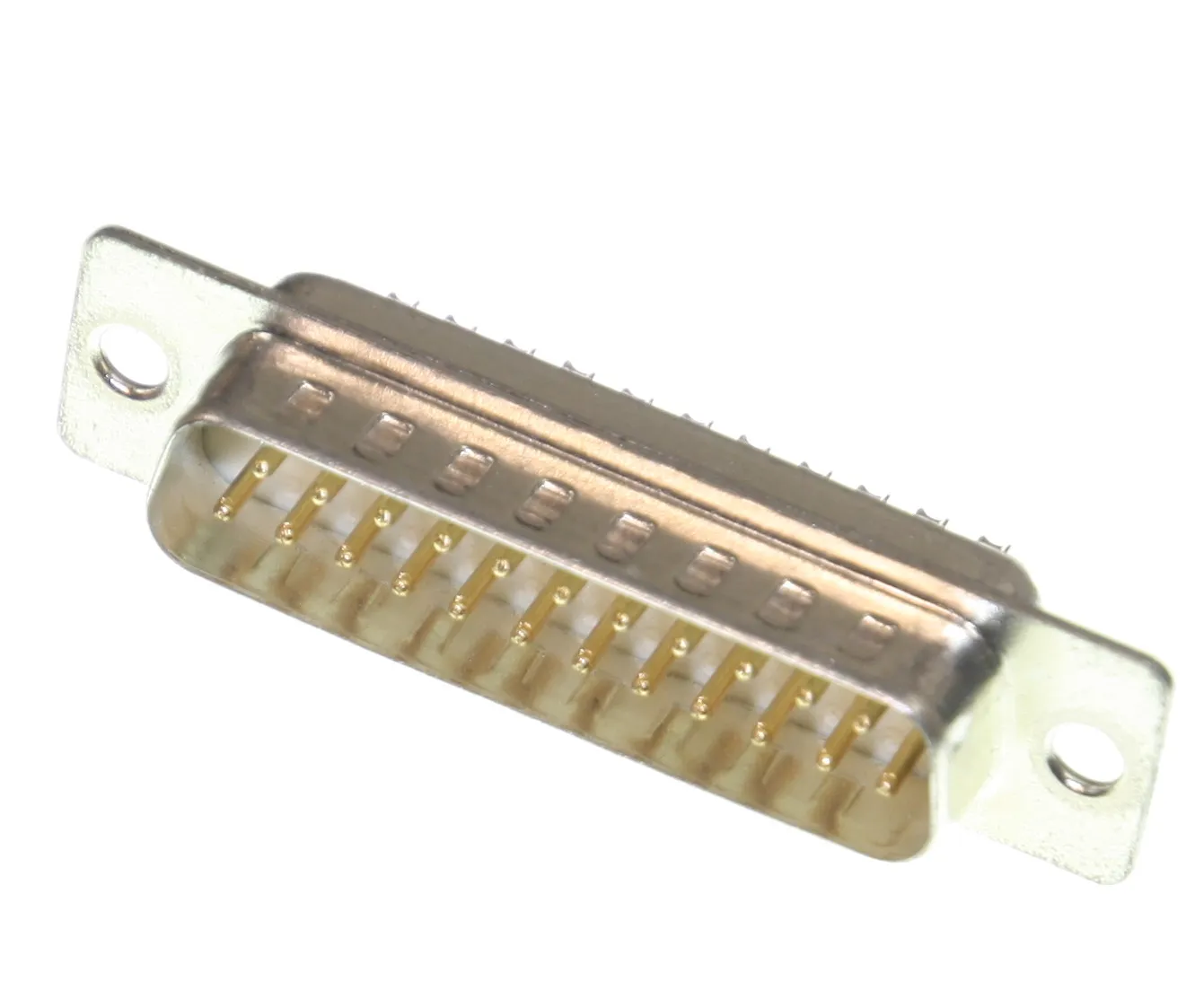

D-Sub-Plug 23-Pole Solder Cup
Varenummer:
115-031
Varekode: SL23LR
45 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Vis lignende produkter i kategorien "23-POLET"
Specifikationer
| Stik-familie |
D-Sub
|
| Antal poler |
23
|
 |
|
|
Insulating Shell:
|
PBT, +30% Glass-filled, UL94V-0
|
Contacts:
|
Brass
|
Contact Surface
|
Snap-in Side:
|
Gold Flash Over Nickel
|
Solder Side:
|
Tin Over Nickel
|
Housing Frame:
|
Steel, Tin-plated
|
Operating Current:
|
5A
|
Dielectric Strength (For 1 Min.):
|
500V AC
|
Insulation Resistance:
|
1000MW at 500V DC
|
Contact Resistance, Max.:
|
20mW
|
Temperature Range:
|
-40...+105°C
|
|
|
|
|
|
|
|
|
Part Nr.
|
Nr. of Poles
|
A
|
B
|
C
|
D
|
F
|
| |
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
| SL09LR |
9
|
16,92
|
24,99
|
30,81
|
19,28
|
10,72
|
| SL15LR |
15
|
25,25
|
33,32
|
39,25
|
27,75
|
10,72
|
| SL25LR |
25
|
38,96
|
47,04
|
53,03
|
41,30
|
10,72
|
| SL37LR |
37
|
55,42
|
63,50
|
69,50
|
57,40
|
10,72
|
|
| Manufacturer |
Various
|
|
|
