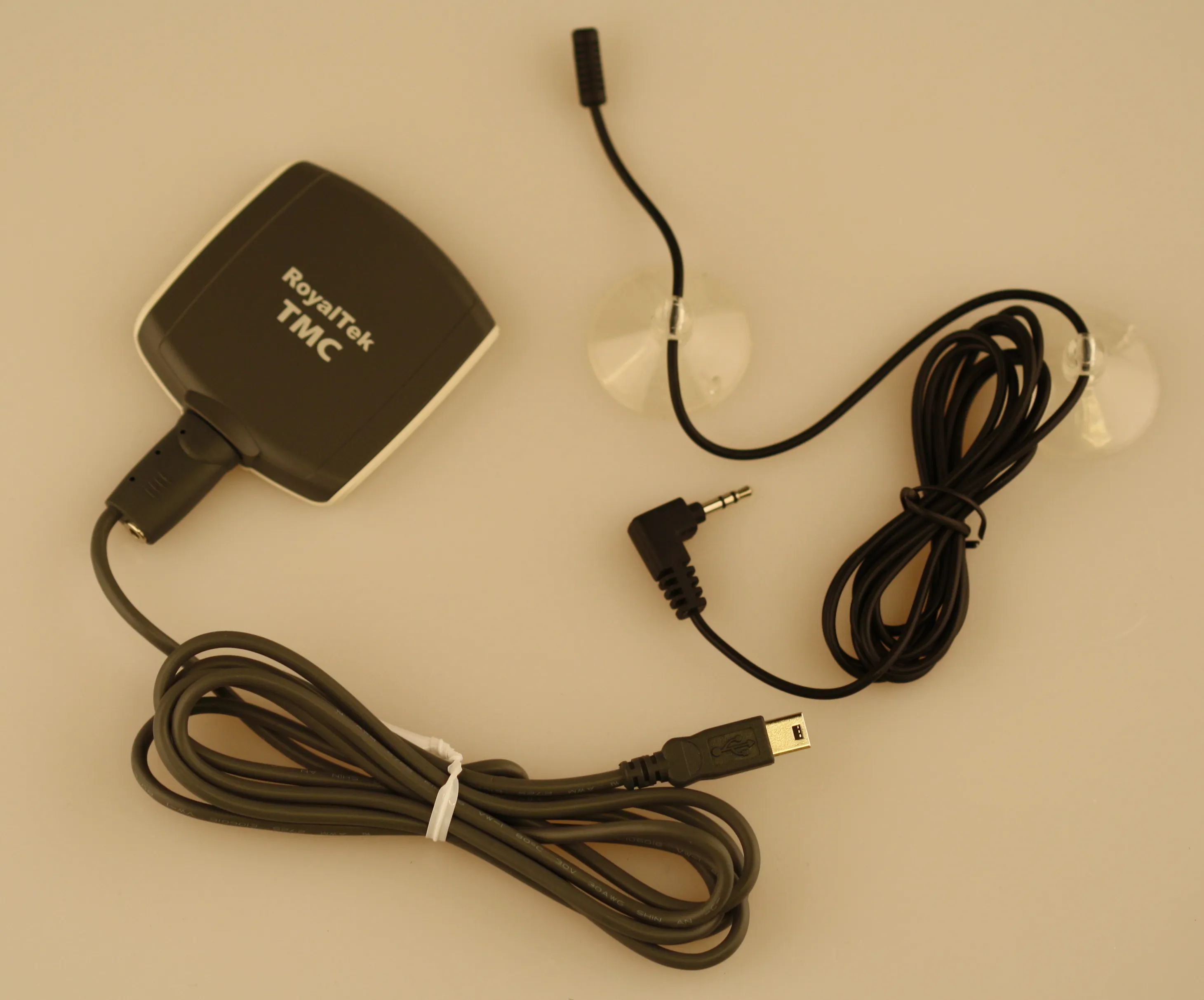

Royaltek TMC receiver RTA-2000
RTA-2000 is an external TMC Receiver which allows you to attach to any plateform with mini-USB or Earphone Jack interface.
By this TMC peripheral, you can get RDS-TMC message from this unit.
Features:
• Supporting for TMC information
• High Sensitivity
• External TMC accessory
TMC General: FM input frequency: 87.5~108.0 MHzRDS
Protocol and interface: Royaltek TMC protocol Version 1.03.3V TTL Output Protocol 9600, n, 8, 1
Cable: mini-USB connector (Please refer to.) 2.5ψear phone type connector (Please refer to.)
Pin definition: Pin1 Vcc: 5V +- 10% Pin2 TX: 3.3V TTL level, TMC data output. Pin3 RX: 3.3V TTL level, receive commands. Pin4 GND Pin5 GND (for mini-USB only)
| General | |
| Temperature | Operating : -10 ~ +60 ℃ |
| Storage : | -20 ~ + 70 ℃ |
| Dimension | 56.9mm(L) * 53.85mm(W) * 10mm(H) |
| Voltage Type | 5V |
| Weight | 50 grams |
| Power Consumption | 25mA |
| RoHS | Supported |
| WEEE | Supported |
| TMC Spec | |
| TMC | Frequency, 87.5MHz~108Mhz |
| Connector | mini-USB |
