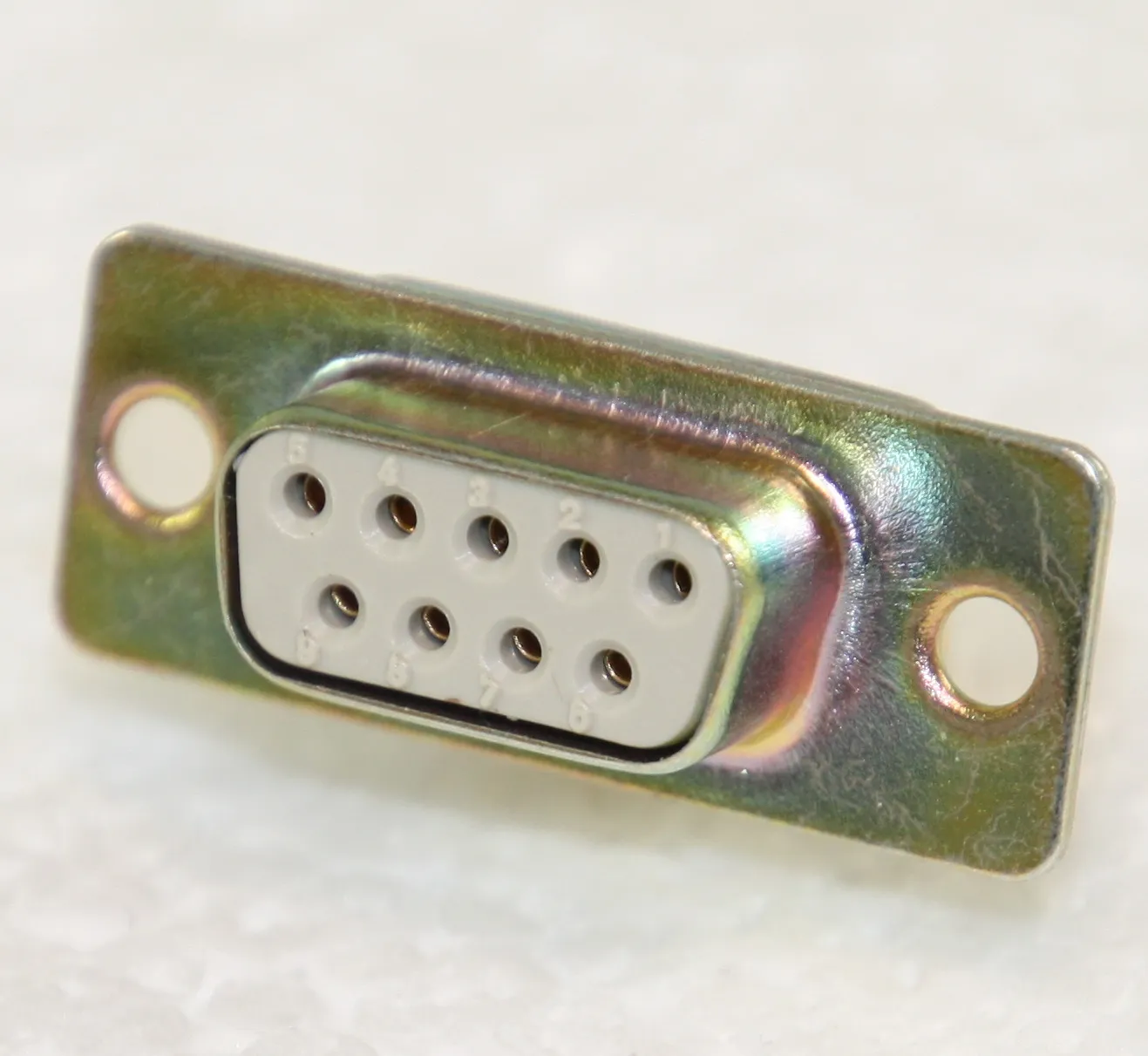

D-SUB Socket 9-pole vinkel 90¤ = BL09LW
Varenummer:
113-278
Varekode: CDF09A
Vægt: 7 g
839 stk.
på lager
Specifikationer
| Stik-familie | D-SUB |
|---|---|
| Antal poler | 9 |
Technical Specifications
 |
|
| Insulating Shell: | Polyester, Glass-filled (PA6.6 GF25(UL94V-0)) |
| Contact Material: | Cu-Alloy |
| Housing Frame: | Steel-plate Under Nickel, Tin-plated |
| Test Voltage Ueff: | 1000V |
| Operating Voltage: | 125 V AC |
| Operating Current (20°C), Max.: | 5A |
| Operating Temperature Range: | -55...+125°C |
|
|
| Dimensions |
| Part Nr. | Poles | A-0,76 | B-0,25 | C |
| [mm] | [mm] | [mm] | ||
| BL09LW | 9 | 31,19 | 16,46 | 25,00 |
| BL15LW | 15 | 39,52 | 24,79 | 33,30 |
| BL25LW | 25 | 53,42 | 38,50 | 47,04 |
| BL37LW | 37 | 69,70 | 54,96 | 63,50 |
| BL50LW | 50 | 67,31 | 52,55 | 61,10 |
|
||||
| Approvals |
   |
|
5591844
CDF09A
9-POLET
BWMUN-E
Inkl. moms
Kr. 8,00
- v/10 – Kr. 6,50
- v/25 – Kr. 5,00
- v/100 – Kr. 3,75
