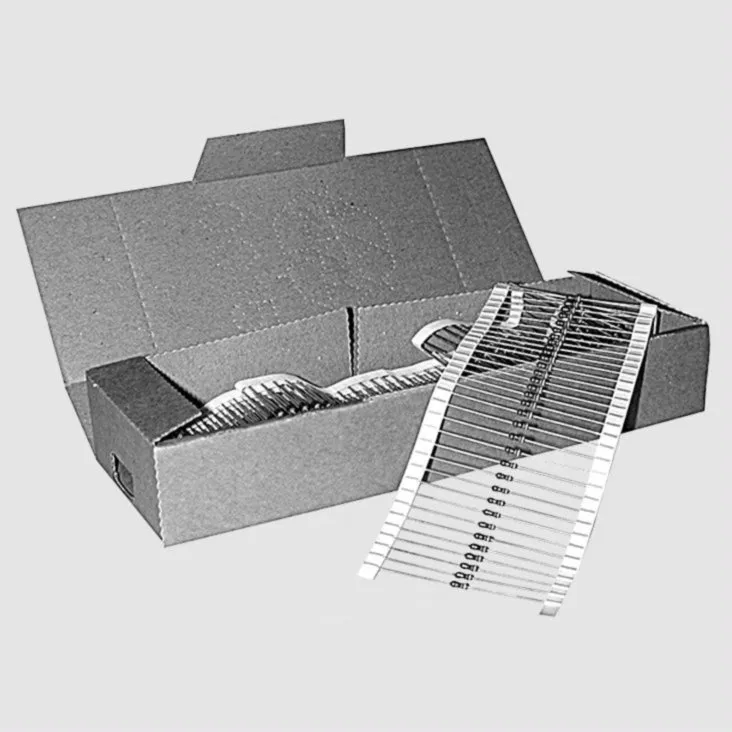

Resistor 0207 0,6W 0,1% 39K Taped

Varenummer: 113-079
Varekode: RMB207K039-0,1
11 stk. på lager
Vis lignende produkter i kategorien "Metalfilm 0,1%"
Specifikationer
Produkt modstand
Modstand 39  kΩ
Komponenthus 0207
Effekt, max. 0.6  W
Tolerance ±0.1  %
Features
• Approved according to CECC 40101-806
• Low temperature coefficient (TC)
• Excellent overall stability
Technical Specifications
Resistance Value:
 Row E12, Reduced
Resistance Tolerance:
 ±0,1%
Rated Dissipation (70°C):
 0,6W
Operating Voltage, Max.:
 350V AC/DC
Insulation Resistance:
 10W ... 1MW
Insulation Voltage (1 Min):
 500V
Temperature Coefficient:
 25ppm/K
Temperature Range:
 -55...+155°C
Failure Rate:
 �0,3x10-9/h
Terminal Strength, Axial:
 >30N
Derating:
 Linear from 70°C to 155°C (0W)
Weight:
 0,22g
Norms
CECC 40101-806
EN 60115-1 / 140100
Manufacturer

http://www.vishay.com
Inkl. moms
Kr. 10,00
  • v/10 – Kr. 4,81
