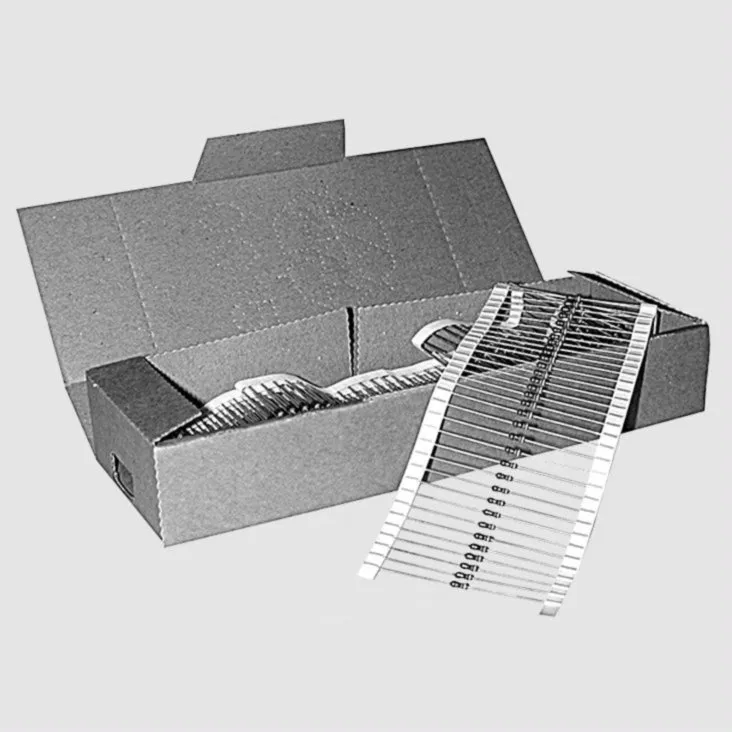

Resistor 0207 0,4W 0,1% 1,54K Taped
Varenummer:
113-069
Varekode: RMB207K001,54-0,1
Produktet udgår - Sælges så længe lager haves!
8 stk.
på lager
Specifikationer
| Produkt | modstand |
|---|---|
| Modstand | 1.54 kΩ |
| Komponenthus | 0207 |
| Effekt, max. | 0.4 W |
| Tolerance | ±0.1 % |
Technical Specifications
 |
|
| Resistance Tolerance: | ±0,1% |
| Rated Dissipation (70°C): | 0,4W |
| Operating Voltage, Max.: | 350V AC/DC |
| Insulation Voltage (1 Min): | 500V |
| Temperature Coefficient: | 25ppm/K |
| Temperature Range: | -55...+125°C |
| Failure Rate, Max.: | 0,1x10-9/h |

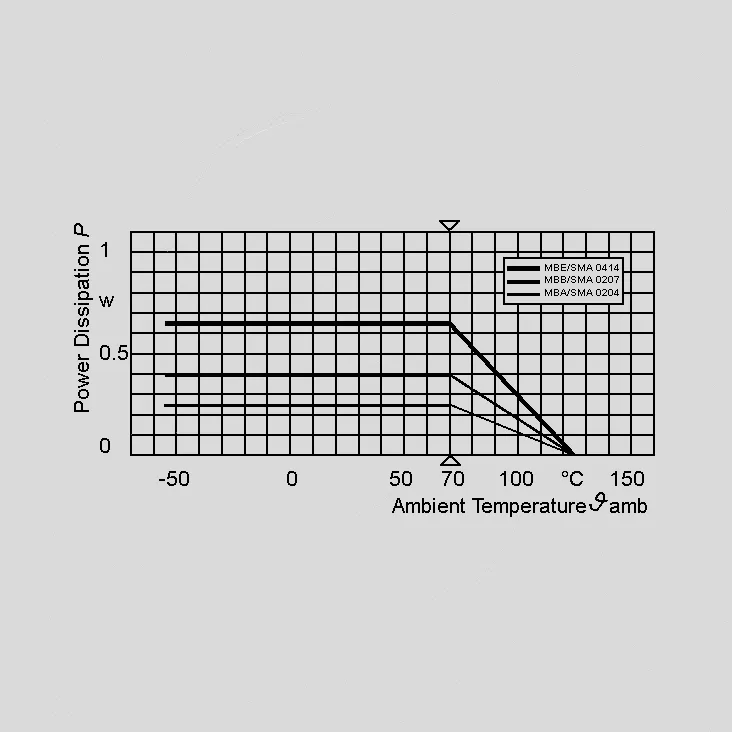

| Derating: | Linear from 70°C to 125°C (0W) |
| Weight: | 0,22g |
|
|
| Norms |
| CECC 40101-806 EN 60115-1 / 140100 |
Resistor 0207 0,4W 0,1% 1,54K Taped
113-069
/ RMB207K001,54-0,1
Produktet udgår - Sælges så længe lager haves!
8 stk.
på lager
Specifikationer
- Produkt modstand
- Modstand 1.54 kΩ
- Komponenthus 0207
- Effekt, max. 0.4 W
- Tolerance ±0.1 %
Technical Specifications
|
|
| Resistance Tolerance: | ±0,1% |
| Rated Dissipation (70°C): | 0,4W |
| Operating Voltage, Max.: | 350V AC/DC |
| Insulation Voltage (1 Min): | 500V |
| Temperature Coefficient: | 25ppm/K |
| Temperature Range: | -55...+125°C |
| Failure Rate, Max.: | 0,1x10-9/h |
| Derating: | Linear from 70°C to 125°C (0W) |
| Weight: | 0,22g |
|
|
| Norms |
| CECC 40101-806 EN 60115-1 / 140100 |
