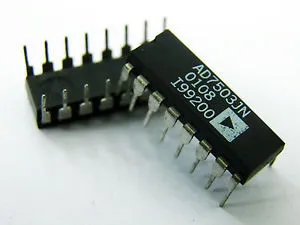

8-CH analog multiplexer DIL16
Varenummer:
112-154
Varekode: AD7503JN
350 stk.
på lager
Bestil nu for afsendelse mandag d. 5/10
AD7503JN 9310 51081
monolithic CMOS, 8-channel analog multiplexers which switch one of eight inputs to a common output
- Multiplexer/Demultiplexer Circuit 8:1
- Number of Circuits: 1
- On-State Resistance (Max): 300Ohm
- Channel-to-Channel Matching (ΔRon): 12Ohm
- Voltage - Supply, Dual (V±): ±15V
- Switch Time (Ton, Toff) (Max): 800ns, 800ns (Typ)
- Channel Capacitance (CS(off), CD(off)): 5pF, 30pF
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Through Hole
- 16-DIP (0.300", 7.62mm)
Inkl. moms
Kr. 143,75
- v/10 – Kr. 96,25
- v/100 – Kr. 75,00
- v/200 – Kr. 60,00
- v/300 – Kr. 57,50
- v/350 – Kr. 55,00
Produktfiler
