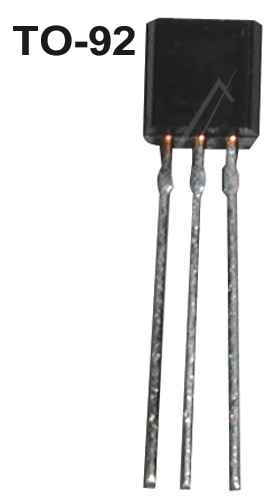

PNP 50V 0,1A 0,3W TO92

Name: PNP 50V 0,1A 0,3W TO92
SKU: 111940
Price: 2.50 DKK
Availability: InStock

Varenummer: 111-940

Varekode: BC307B

Vægt: 1 g

3315 stk. på lager

Bestil nu for afsendelse i morgen

Yderligere 5484 stk. kan skaffes torsdag d. 22/10

Vis lignende produkter i kategorien "B.."

Type Designator: BC307B

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.3 W

Maximum Collector-Base Voltage |Vcb|: 50 V

Maximum Collector-Emitter Voltage |Vce|: 45 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 125 °C

Transition Frequency (ft): 130 MHz

Collector Capacitance (Cc): 6 pF

Forward Current Transfer Ratio (hFE), MIN: 240

Inkl. moms

Kr. 2,50

111-940

/ BC307B

3315 stk. på lager

Bestil nu for afsendelse i morgen

Ved bestilling nu, får vi dem hjem torsdag d. 22/10

Type Designator: BC307B

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.3 W

Maximum Collector-Base Voltage |Vcb|: 50 V

Maximum Collector-Emitter Voltage |Vce|: 45 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 125 °C

Transition Frequency (ft): 130 MHz

Collector Capacitance (Cc): 6 pF

Forward Current Transfer Ratio (hFE), MIN: 240
