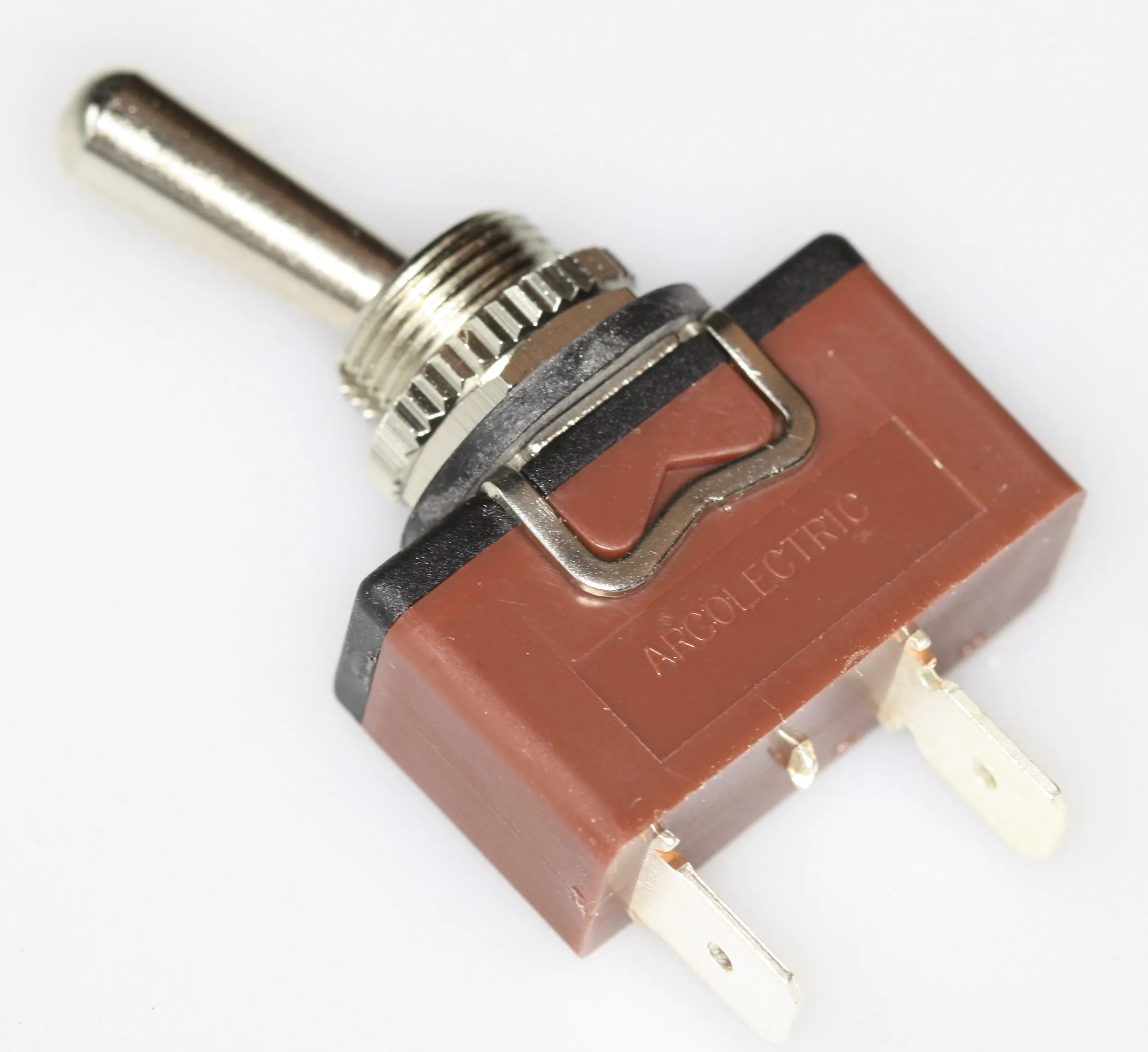

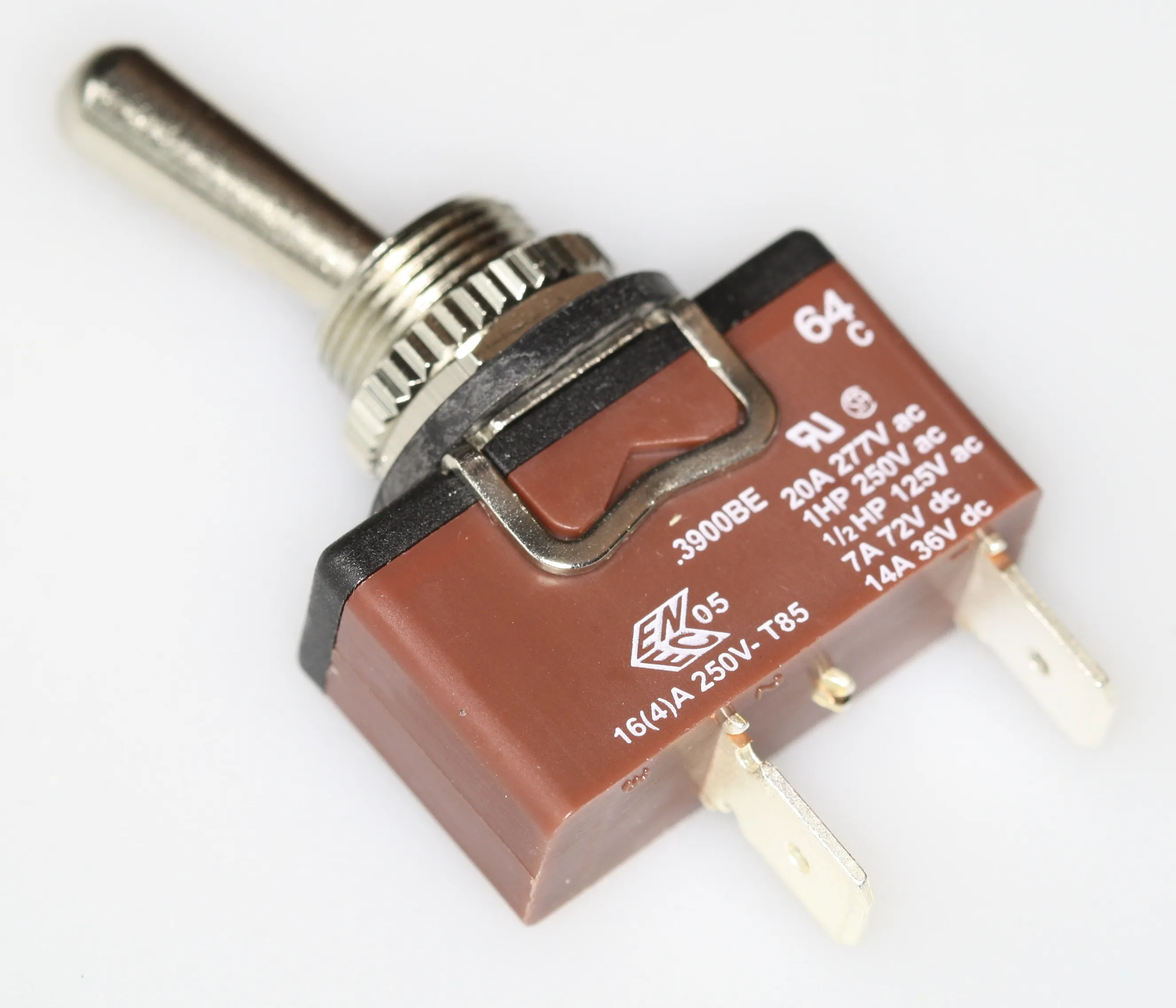

Switch 1-pol 10A ON/ON Forseglet
Varenummer:
111-410
Varekode: C3910BEAAA
Vægt: 23 g
4 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 10 stk. kan skaffes lørdag d. 31/10
Gruppe:
E2317
ARCOLECTRIC Toggle Switches
Series: 3900
With Metal Lever, IP67
Panel Cut-out: Ø12,7mm
Inrush Current: 10A/16A
| Features |
| • Single pole leverswitch • IP67 sealed from panelside • For central mounting • 6,3mm solderterminals • Metal lever • Ratet up to 250V/10A (C3900BE: 16A) • Lever protection cap R17-GUARD available |
 |
| Selection Table |
| Part Nr. | Function | C3900BE | SPST | C3910BE | SPDT | C3920BE | 1xOn-Off-On | C3921BE | 1xOn-Off-(On) | C3922BE | 1x(On)-Off-(On) | R17-10GUARD | Lever Protection Cap | ||
|
|||||||||||||||
| Technical Specifications |
|
|||||||||||||||||||||||||||||||
| Operating Voltage, Max.: | 250V AC | Switching Current, Max.: | 10A | Switching Current C3900BE, Max.: | 16A | Switching Current at Inductive Load, Max.: | 4A | Ambient Temperature, Max.: | 85°C | Insulation Resistance: | >20MW | Contact Resistance | (New State, 12V DC/1A): | 100mW | Soldering Conditions (Hand Solder): | 350°C/6s | Materials | Shell: | Nylon 6.6 | Lever: | Brass, Nickel-plated | Current-carrying Part: | Cu Alloy | Contacts: | Silver-plated | Flammability Class: | UL94V2 | ||||
|
|||||||||||||||||||||||||||||||
| Panel Cut-out |
| Wall Strength | Cut-out | [mm] | [mm] | 4,0 | Ø 10,8 | ||||||
|
|||||||||||
| Approvals |
 05: 10 (4)A, 250Vac, T85  16A 125/277Vac 7A 72Vdc, 14A 36Vdc 250Vac 1hp, 125Vac 1/2hp 85°C, file E45221, file LR10990 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.arcolectric.com |
|
