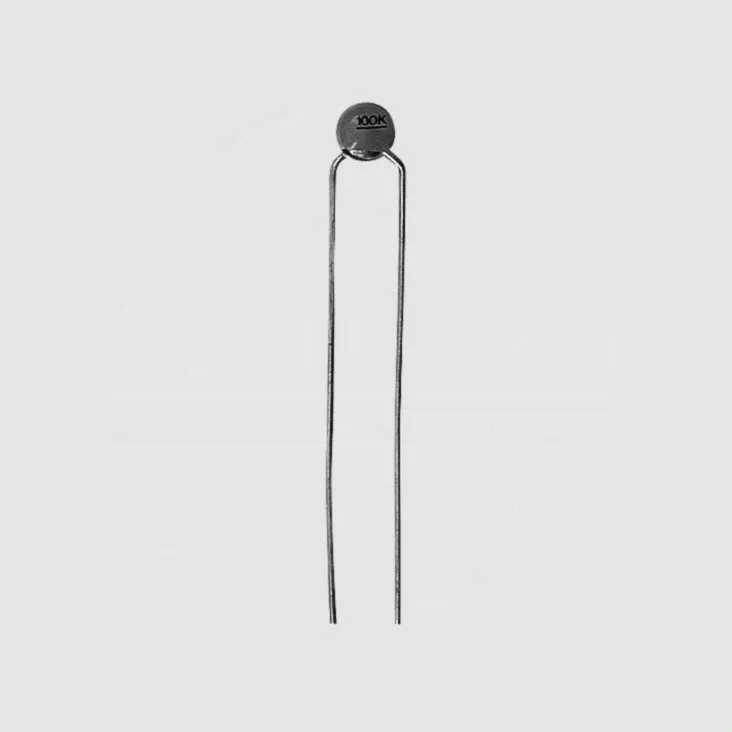

NTC Thermistor 10R 10% B57164K100K
Varenummer:
110-929
Varekode: K164NE010-10
Vægt: 0 g
78 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
| Features |

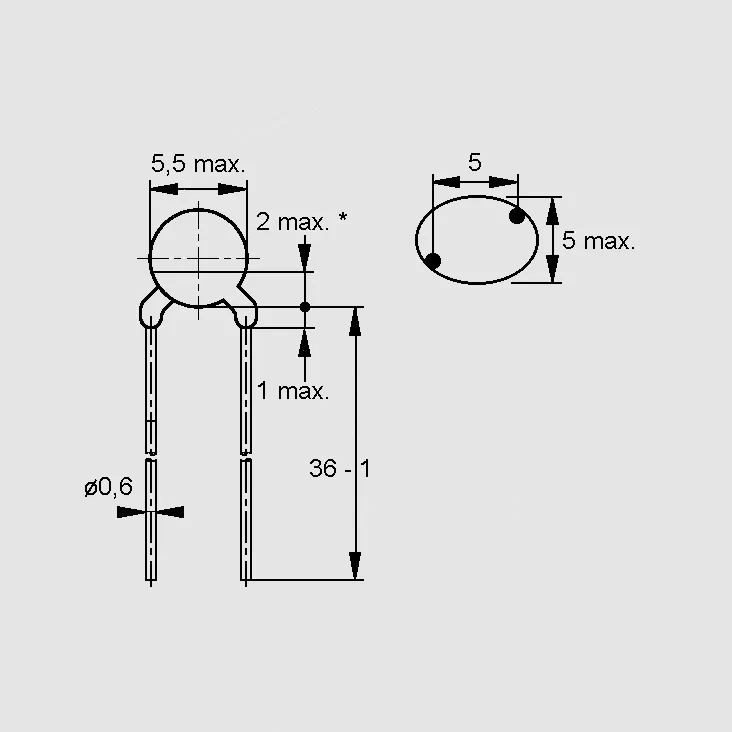

| • Lacquer-coated thermistor disc • 2,0mm lacquer-free from the lower rim of the disc • Tinned copper leads • Pitch 5mm |
 |
| Application |
| • Temperature compensation, measurement and control |
|
| Technical Specifications |
|
|
| Climatic Category (IEC68-1): | 55/125/21 |
| Power, Max. (25°C): | 450mW |
| Resistance Tolerance: | ±10% |
| Nominal Temperature: | +25°C |
| Temperature Range: | -55...+125°C |
| Dissipation Factor (in Air): | Approx. 7,5mW/K |
| Thermal Cooling Time Constant (in Air): | Approx. 20s |
| Heat Capacity: | Approx. 150mJ/K |
