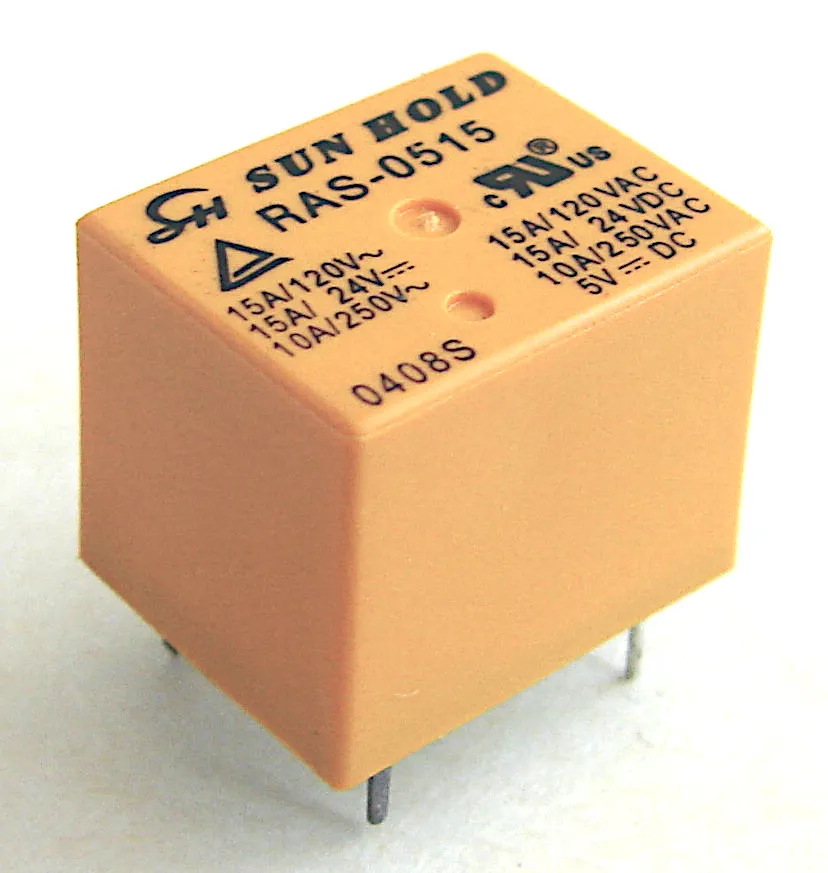

Relay SPDT 10A (15A@24V) 5V 70R
Varenummer:
110-872
Varekode: RAS-0515
1 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Vis lignende produkter i kategorien "5V"
• SPDT contact
• Wash tight enclosure
• High switching capacity 10A AC/DC (230V) - 15A AC (120V) /DC (24V)
• Relays protection class RTIII
|
 |
|
|
|
Dielectric Strength
|
Contact/Coil:
|
2500V AC
|
Open Contact:
|
1000V AC
|
Contact/Coil (1,2/50μs):
|
4000V
|
Temperature Range:
|
-40...+85°C
|
Operate Time:
|
7ms
|
Release Time:
|
3ms
|
|
|
|
|
Configuration:
|
SPDT
|
Contact Material:
|
F3611-_A:
|
AgCdO
|
Switching Power, Max.
|
DC1:
|
0,3A/110V DC; 10A/30V DC
|
AC1:
|
2500VA
|
AC15:
|
500VA
|
Switching Voltage, Max.:
|
250V
|
Switching Current, Max. (Resistive):
|
10A
|
Operating Life
|
Mechanical:
|
10x106 Operations
|
Electrical (at 2500VA):
|
100x103 Operations
|
|
|
|
|
Rated Voltage:
|
See Table
|
Operating Power at 20°C:
|
0,36W
|
Release Voltage, Min.:
|
0,1xUN
|
|
|
|
|
|
|
|
Part Nr.
|
UN
|
IN
|
RN
|
Umin.
|
Umax.
|
| |
[V DC]
|
[mA]
|
[W]
|
[V DC]
|
[V DC]
|
| RAS-0515 |
5
|
72
|
70
|
3,7
|
7,5
|
UN = Rated Voltage , IN = Rated Current, RN = Coil Resistance, Umin. = Minimum Voltage (+20°C),The Tolerance of the Rated Current and the Coil Resistance Amount to 10%, Umax. = Maximum Voltage (+20°C), The Tolerance of the Rated Current and the Coil Resistance Amount to 10%.
|
|
|
