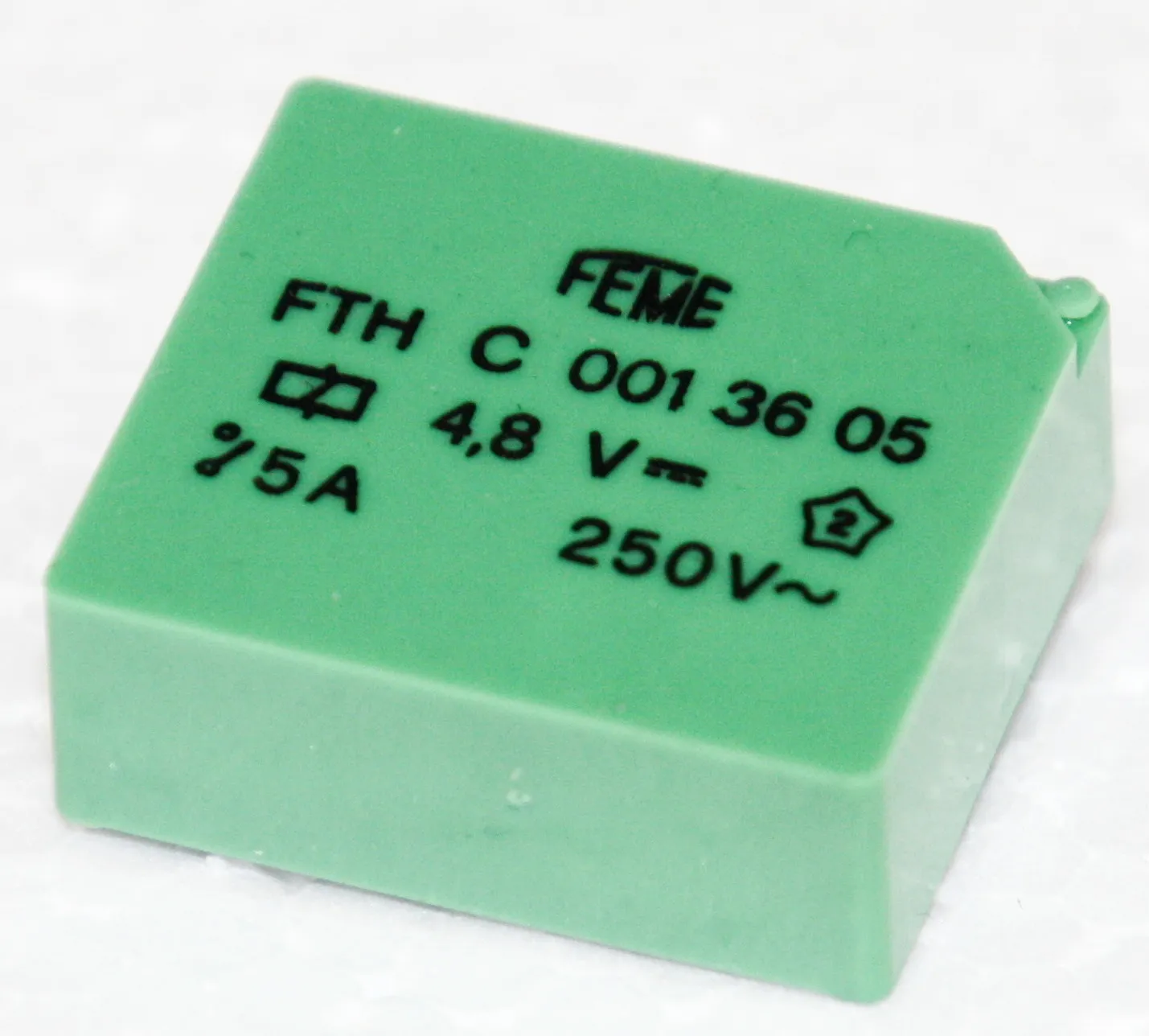

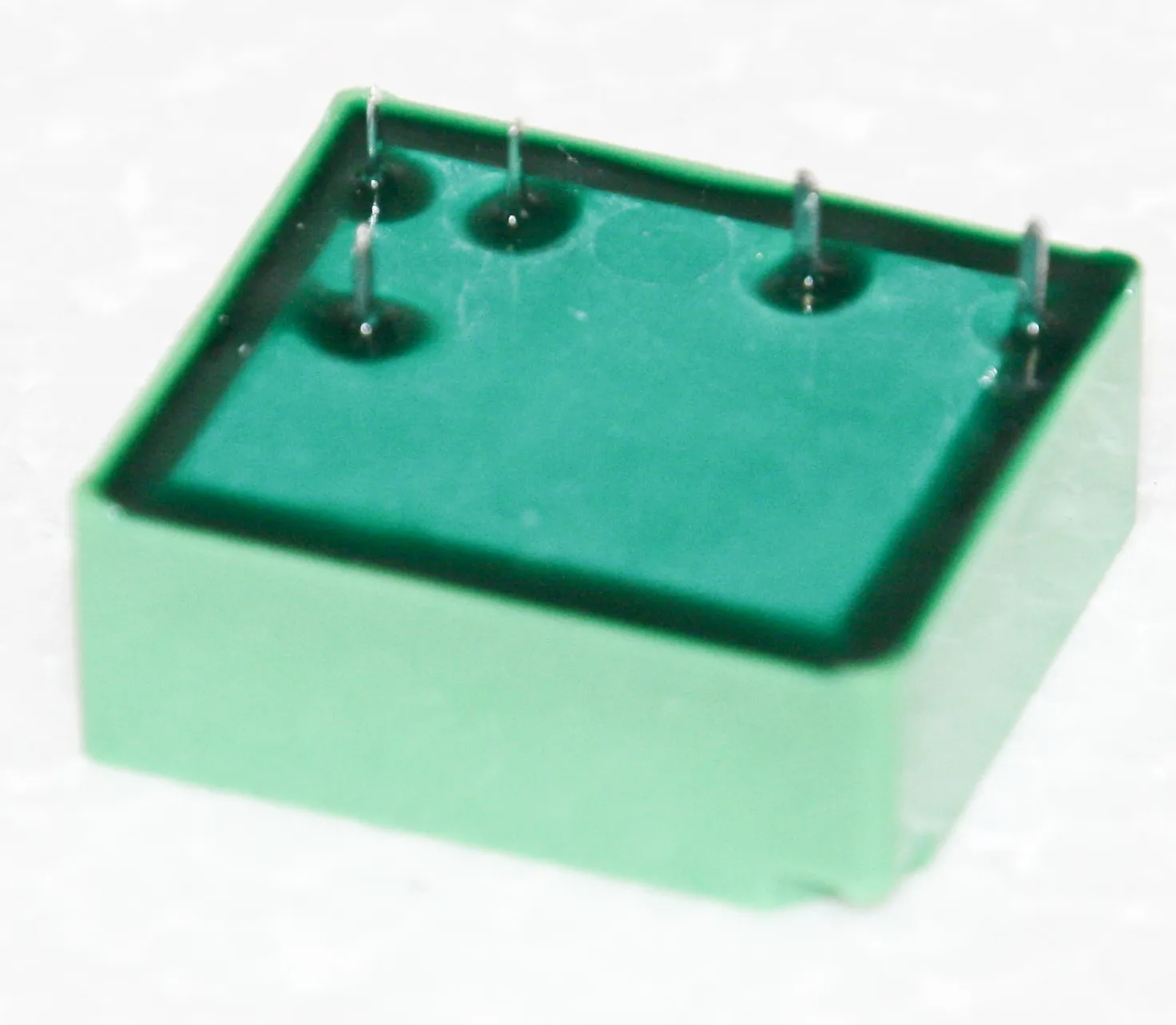

Relay SPDT 5A 4,8 47R Horisontal

Name: Relay SPDT 5A 4,8 47R Horisontal
SKU: 110865
Price: 61.13 DKK
Availability: InStock

Varenummer: 110-865

Varekode: KRE4,8L

25 stk. på lager

Bestil nu for afsendelse i morgen

Vis lignende produkter i kategorien "12V"

Kan også hedde: FEME FTHC0013605

Features

SPDT
Wash tight version (IP67)
Conforms to: VDE 0435/9.72 "Regulations for electrical relays in power installations"
VDE 0631 "Rules and control for domestic use"
VDE 0860 "Electronic devices for domestic applications"

Technical Specifications



Insulation (According to VDE0110):	B/380, C/250
Insulation Resistance, Max. (500V DC):	>10⁴MW
Dielectric Strength
Coil/Contact:	4000V_eff
Open Contact Circuit:	1000V_eff
Clearance/Creepage:	4mm
Temperature Range (45...85% RH):	-40...+70C
Operate Time, Typ.:	7ms
Release Time, Typ.:	3ms
Bounce Time, Typ.:	3ms
Weight:	Approx. 20g

Contact Data



Contact Configuration:	SPDT
Contact Type:	Single Contact
Contact Material:	AgCdO
Rated-Breaking Capacity (Ohmic Load):	2000VA
Rated Voltage:	250V AC
Breaking Voltage Max.:	400V AC, 300V DC
Rated Current	8A
Make Current (Max. 4s at 10% Duty Cycle):	15A
Operating Life
Mechanical, Approx.:	2x10⁷ Operations
Electrical at Rated Load:	1x10⁵ Operations
Switching Frequency
Without Load:	1200 Operations/Min
With Rated Load:	30 Operations/Min

Coil Data



Coil Type:	Monostable
Rated Voltage:	See Table
Rated Power:	450...500mW


Part Nr.	U_N	U_An	U_Ab	I_N	R_N	Tol.
	[V DC]	[V DC]	[V DC]	[mA]	[W]	[%]
KRE12_	12	8,3	1,2	36,4	330	33
KRE24_	24	16,8	2,4	20,0	1200	180
U_N = Rated Voltage, U_An = Operate Voltage , U_Ab = Release Voltage, I_N = Rated Current, R_N = Coil Resistance, Tol. = Tolerance of Coil Resistance; All Specifications are Given for Coil without Preenergization, Ambient Temperature +20C

Approvals

Manufacturer

http://www.schrackrelays.com

Inkl. moms

Kr. 61,13

v/10 – Kr. 45,84
v/25 – Kr. 37,50
