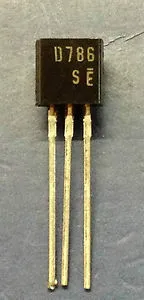

NPN 50V 0,3A 0,25W TO-92
komplimentær NPN = 2SB737
2SD786 Datasheet, Equivalent, Cross Reference Search
Type Designator: 2SD786
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.25 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.3 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN: 120
Noise Figure, dB:
Package: TO92
- v/10 – Kr. 20,00
