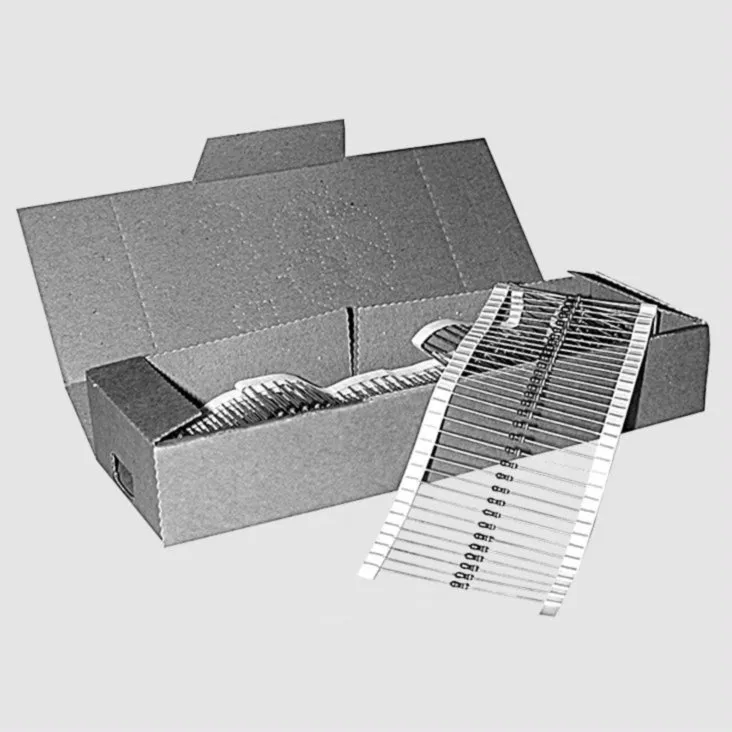

Resistor 0207 0,6W 0,1% 137K Taped
Varenummer:
110-717
Varekode: RMB207K137-0,1
2440 stk.
på lager
Bestil nu for afsendelse mandag d. 12/10
Vis lignende produkter i kategorien "Metalfilm 0,1%"
Specifikationer
| Produkt |
modstand
|
| Modstand |
137
kΩ
|
| Komponenthus |
0207
|
| Effekt, max. |
0.6
W
|
| Tolerance |
±0.1
%
|
• Approved according to CECC 40101-806
• Low temperature coefficient (TC)
• Excellent overall stability
|
 |
|
|
|
Resistance Value:
|
Row E12, Reduced
|
Resistance Tolerance:
|
±0,1%
|
Rated Dissipation (70°C):
|
0,6W
|
Operating Voltage, Max.:
|
350V AC/DC
|
Insulation Resistance:
|
10W ... 1MW
|
Insulation Voltage (1 Min):
|
500V
|
Temperature Coefficient:
|
25ppm/K
|
Temperature Range:
|
-55...+155°C
|
Failure Rate:
|
�0,3x10-9/h
|
Terminal Strength, Axial:
|
>30N
|
Derating:
|
Linear from 70°C to 155°C (0W)
|
Weight:
|
0,22g
|
|
| Norms |
CECC 40101-806
EN 60115-1 / 140100
|
|
|
