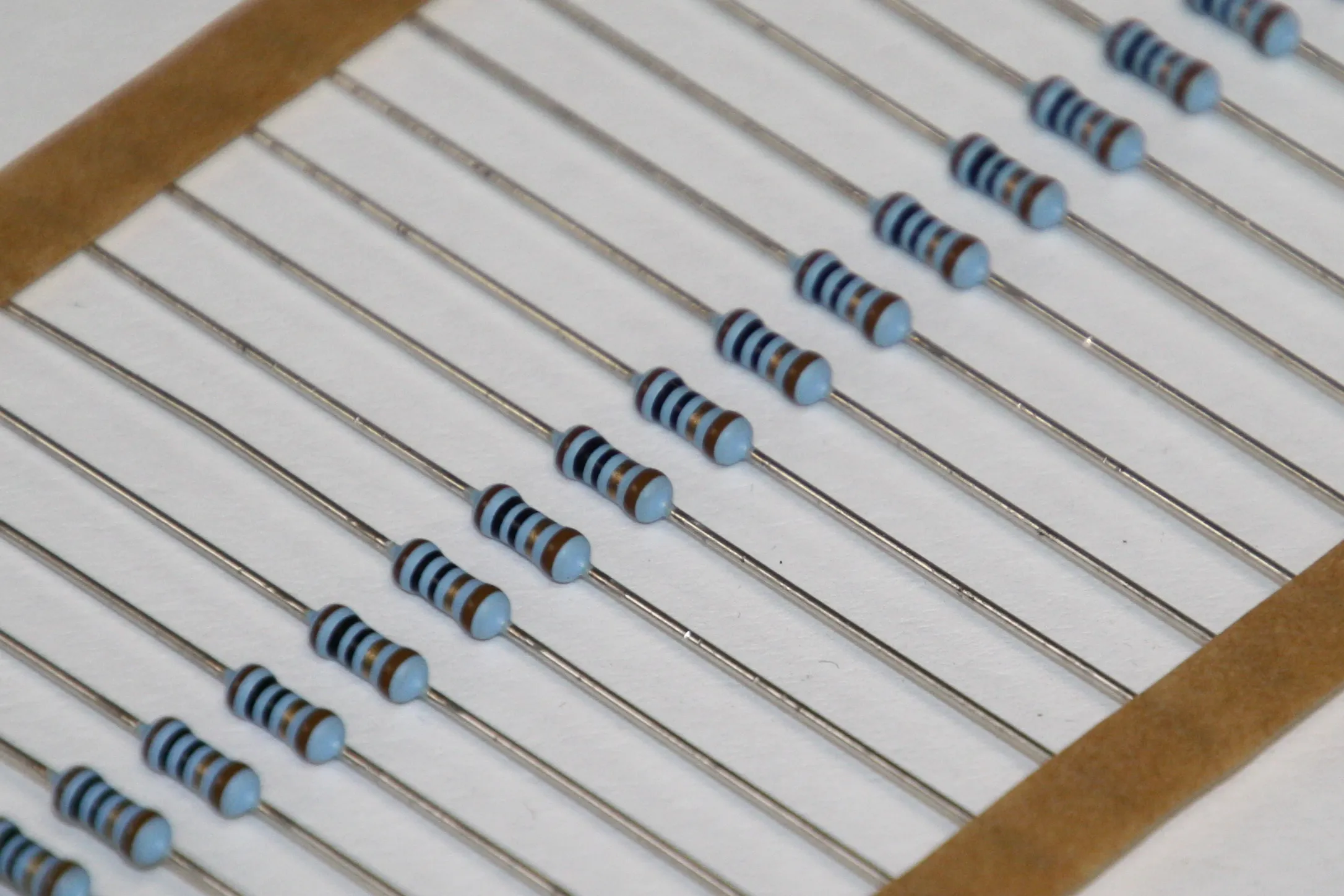

Resistor 0207 0,6W 1% 1,13R Taped
Varenummer:
110-036
Varekode: RMBB207E001,13
Produktet udgår - Sælges så længe lager haves!
60 stk.
på lager
Bestil nu for afsendelse i morgen
Specifikationer
| Komponent-pakning | Taped |
|---|---|
| Produkt | modstand |
| Modstand | 1.13 Ω |
| Tolerance | ±1 % |
| Komponenthus | 0207 |
| Effekt, max. | 0.6 W |
Gruppe: C1272
VISHAY Metal Film Resistors
Series: MBB/SMA
Style: Taped
Power: 0,6W
Tolerance: 1%
Housing: 0207
| Features |
| • Approved according to CECC 40101-806 • Excellent overall stability |
| Technical Specifications |
| Resistance Tolerance: | ±1% |
| Rated Dissipation (70°C): | 0,6W |
| Operating Voltage, Max.: | 350V AC/DC |
| Insulation Resistance: | 1W ... 10MW |
| Insulation Voltage (1 Min): | 500V |
| Temperature Coefficient: | 50ppm/K |
| Temperature Range: | -55...+155°C |
| Failure Rate: | £0,1x10-9/h |
| Terminal Strength, Axial: | >30N |
| Derating: | Linear from 70°C to 155°C (0W) |
| Weight: | 0,220g |
| Norms |
| EN 60115-1 / 140100 |
