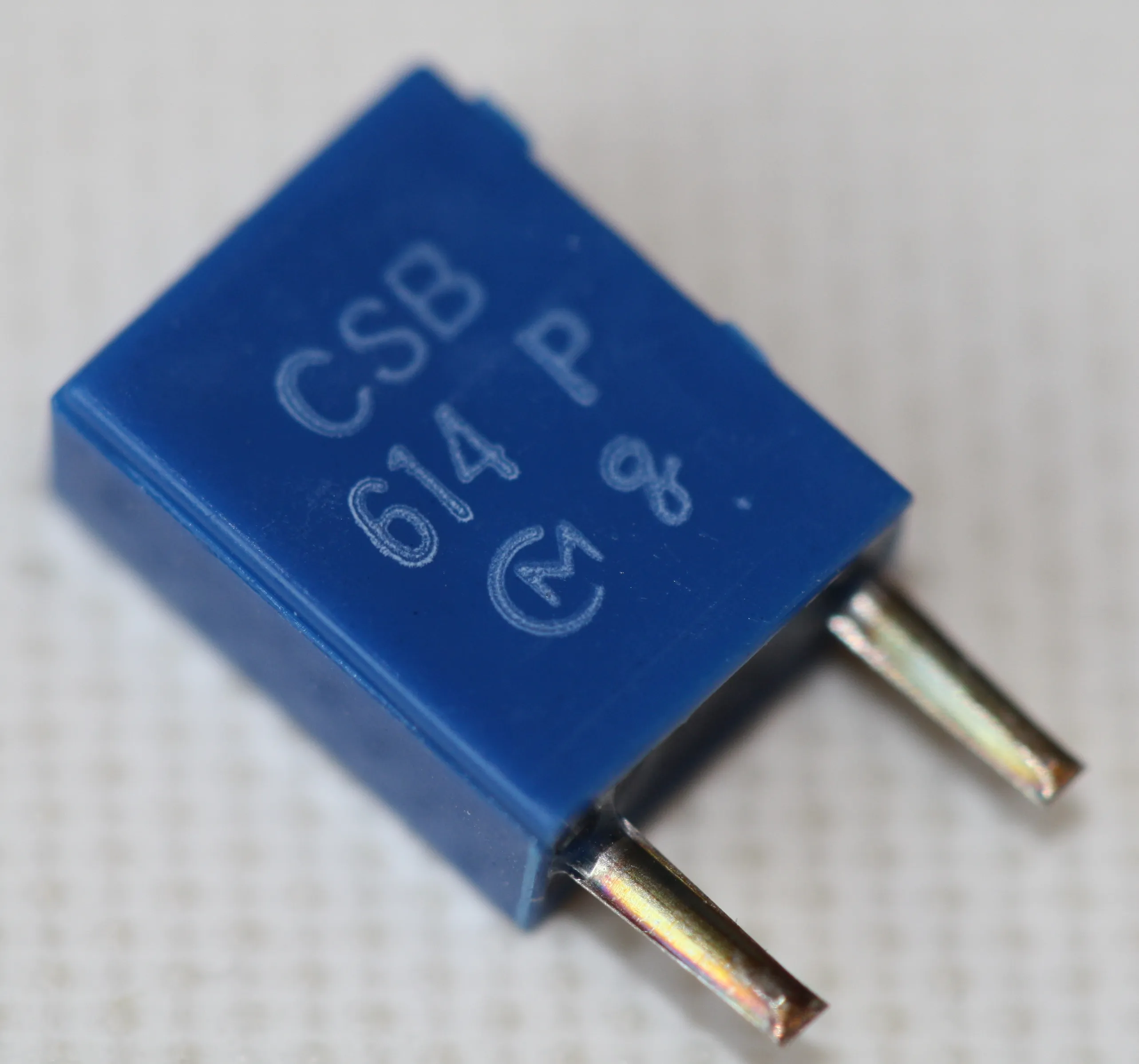

Ceramic Resonator 2-Pole 614kHz for Remote

Name: Ceramic Resonator 2-Pole 614kHz for Remote
SKU: 109821
Price: 6.25 DKK
Availability: InStock

Varenummer: 109-821

Varekode: ZTB614EB

400 stk. på lager

Bestil nu for afsendelse mandag d. 5/10

Vis lignende produkter i kategorien "Resonatorer"

Resonator for fjernbetjening.

Technical Specifications


Part Nr.	f	Tol.	T_Stab.	Age	R_res	U_with	R_iso
ZT_	[MHz]	[%]	[%]	[%]	W	[V DC]	W
B455EB	0,455	±2	±0,3	±0,5	20	-	-
A2,00MG	2,00	±0,5	±0,3	±0,3	80	100	5x108
A3,58MG	3,58	±0,5	±0,3	±0,3	30	100	5x108
A4,00MG	4,00	±0,5	±0,3	±0,3	30	100	5x108
A12,00MT	12,00	±0,5	±0,3	±0,3	25	100	5x108
f = Frequency, Tol. = Frequency, T_Stab = Temperature Stability, -20...+80°C, Age = Aging for 10 Years, R_res = Resonant Resistance, U_with = Voltage Sustaining Capability, 5s, R_iso = Insulation Resistance
