Højttaler 8R 0,25w Ø=50mm.
Varenummer:
109-730
Varekode: SP-2RDP
Vægt: 67 g
108 stk.
på lager
SP-2RDP

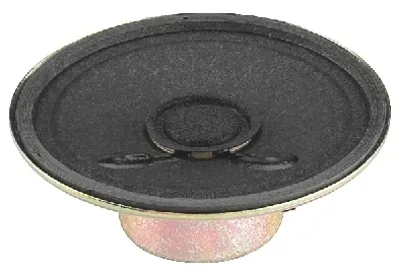

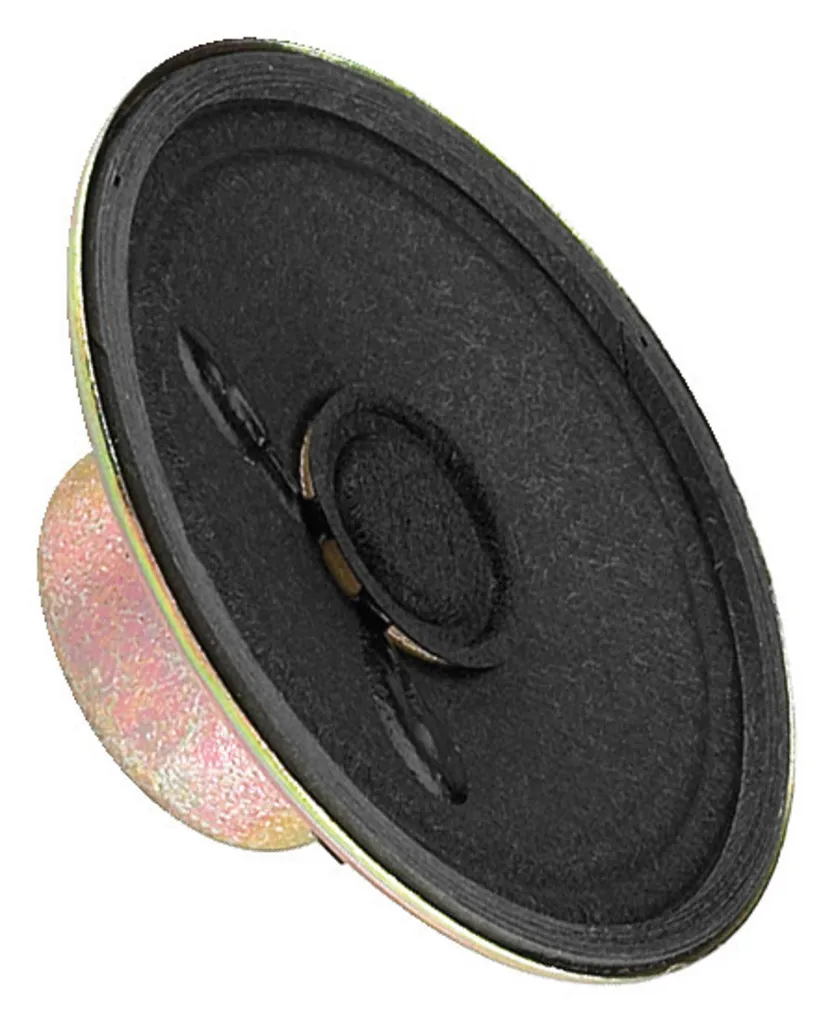

Miniature flush-mount speaker 8 Ω
- For general applications in models, intercom systems, miniature radios
Miniature flush-mount speakers
Legend scale drawing:
- Width = Ø A
- Depth = E
- Magnet diameter = Ø B
- Mounting cutout = Ø C
- Mounting depth = E-D
| SP-2RDP | |
|---|---|
| Impedance (Z) | 8 Ω |
| Frequency range | 450-15,000 Hz |
| Power rating (RMS) | 0.25 W |
| Sensitivity | power capability: |
| Magnet diameter | Ø 22 mm |
| Mounting cutout | Ø 45 mm |
| Mounting depth | 16 mm |
| Dimensions | Ø 50 mm x 19 mm |
| Outside diameter | Ø 50 mm |
| Width | Ø 50 mm |
| Depth | 19 mm |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.04 kg |
| Packing unit | 1 |
