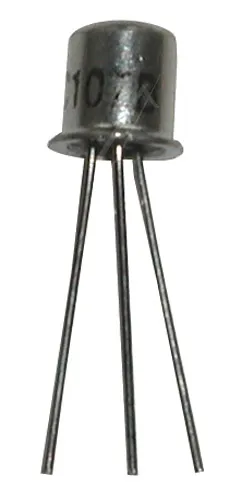

NPN 50V 0,1A 0,3W TO-18
Varenummer:
109-328
Varekode: BC107A
49 stk.
på lager
Bestil nu for afsendelse i morgen
- TRANSISTOR, NPN, TO-18
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 45V
- Transition Frequency Typ ft: 150MHz
- Power Dissipation Pd: 600mW
- DC Collector Current: 200mA
- DC Current Gain hFE: 110
- Transistor Case Style: TO-18
- No. of Pins: 3
- SVHC: No SVHC (18-Jun-2012)
- Collector Emitter Voltage Vces: 250mV
- Continuous Collector Current Ic Max: 100mA
- Current Ic Continuous a Max: 100mA
- Current Ic hFE: 2mA
- Gain Bandwidth ft Min: 150MHz
- Gain Bandwidth ft Typ: 150MHz
- Hfe Min: 110

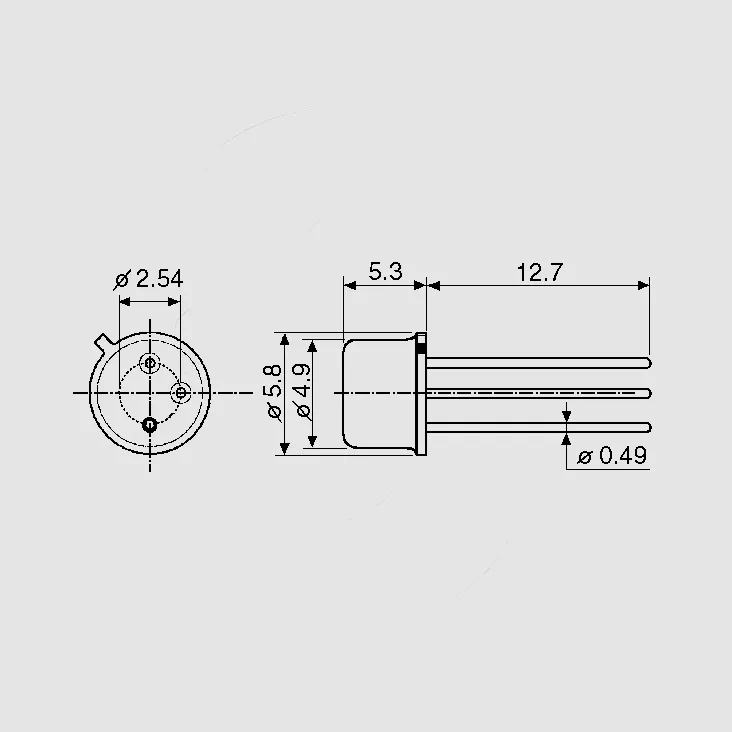

- Package / Case: TO-18
- Pin Configuration: a
- Power Dissipation Pd: 600mW
- Power Dissipation Ptot Max: 600mW
- Termination Type: Through Hole
- Voltage Vcbo: 50V
Produktfiler
